Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
5. Slightly lift and pull the hard disk assembly in the direction of arrow (Figure 3d).
6. Lift the hard disk assembly out of the bay (Figure 3e).
7. Remove the screws - and the adhesive cover from the hard disk
(Figure 3f).
8. Reverse the process to install a new hard disk (do not forget to replace all the screws and bottom cover).
18. HDD Assembly
22. Adhesive Cover
23. HDD
•2 Screws

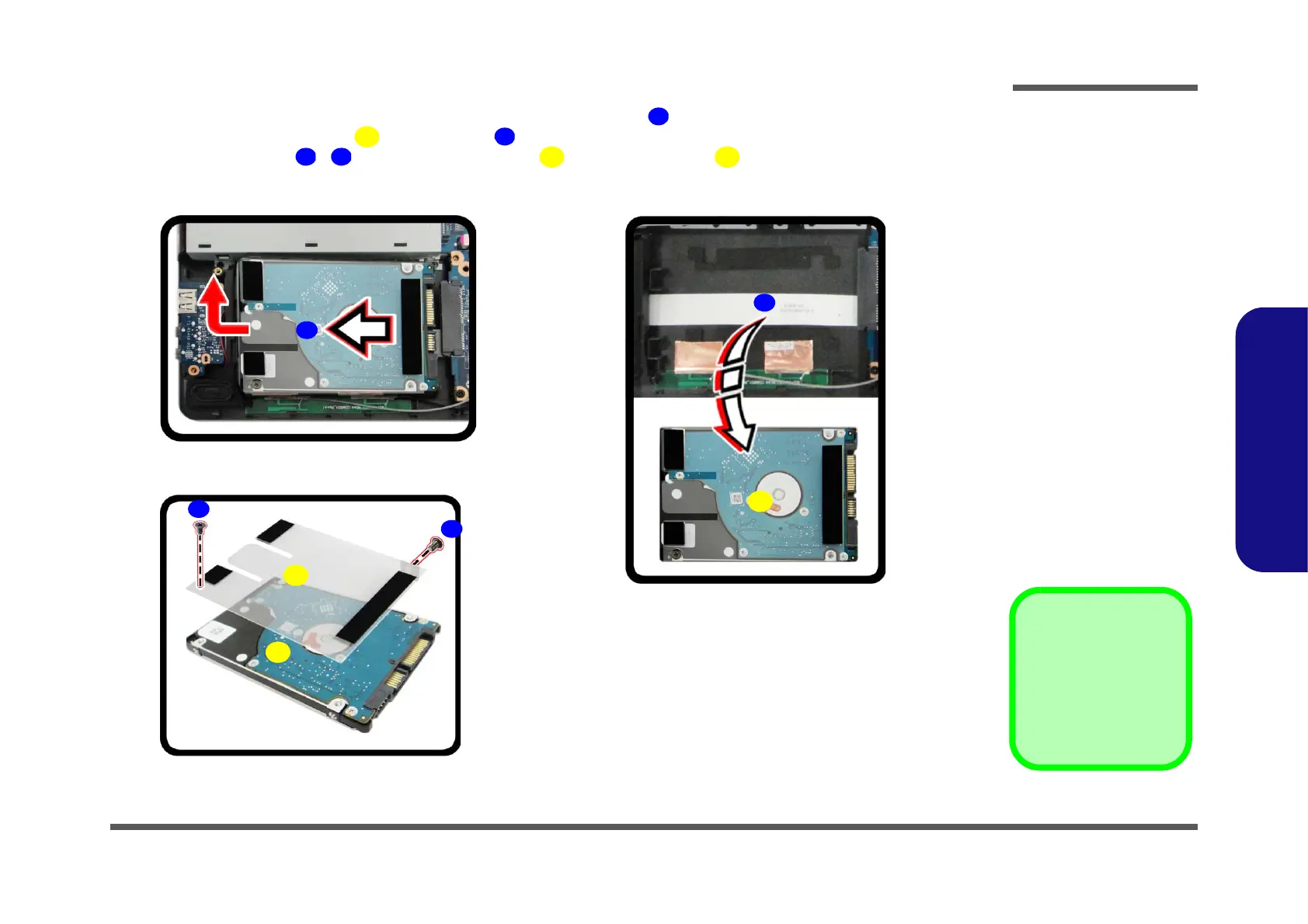

Figure 3
HDD Assembly
Removal (cont’d.)
d. Slightly lift and pull the
HDD assembly in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.
f. Remove the screws and
adhesive cover.
To Next Page
