Removing the CCD 2 - 19
2.Disassembly
5. Disconnect the cable .
6. Remove the CCD module (Figure 14f).
7. Reverse the process to install a new CCD module.
6
7
e.
d.
7
6


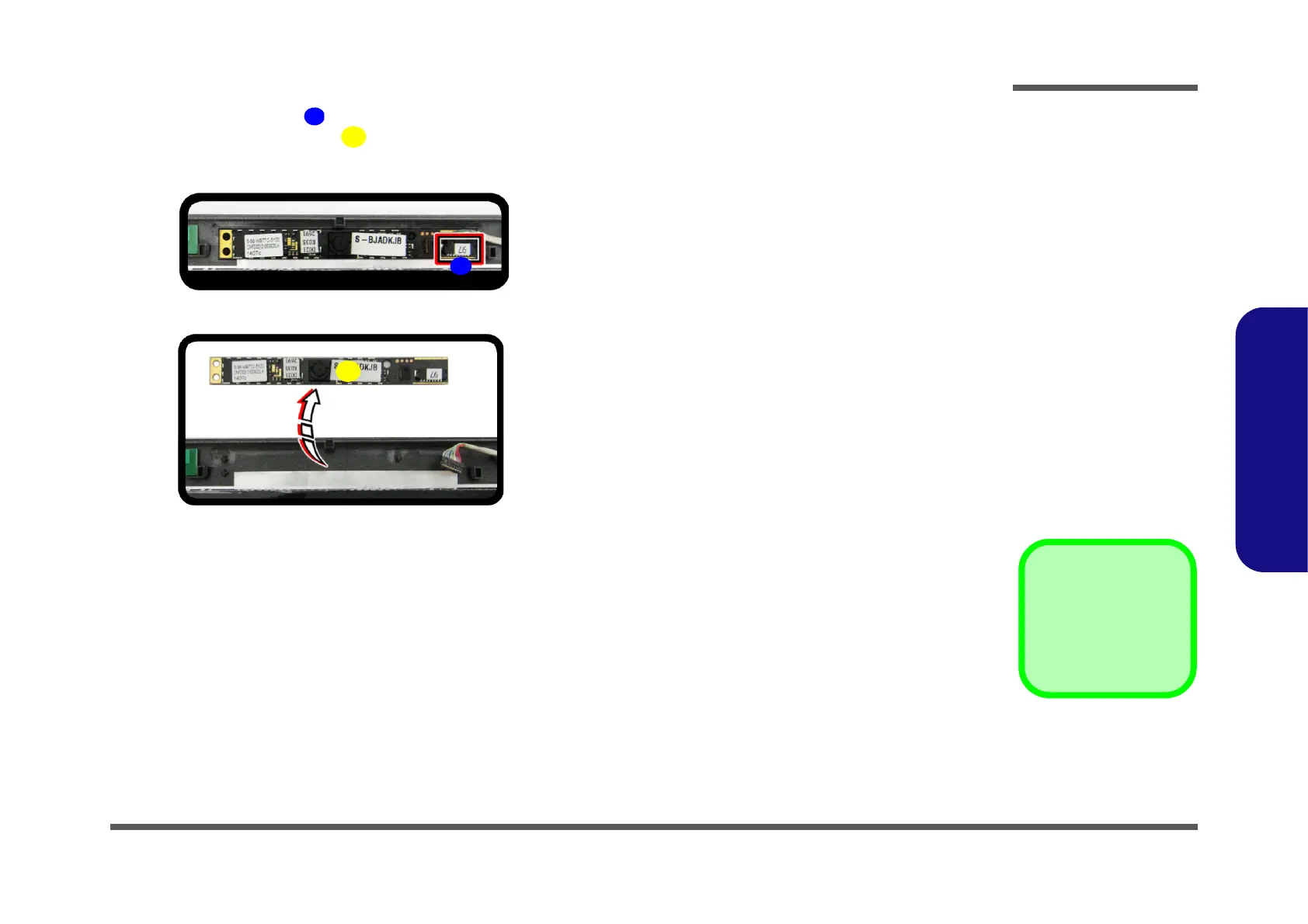

7. CCD Module
Figure 14
CCD Removal
(cont’d)
d. Disconnect the cable.
e. Remove the CCD mod-
ule.
