grounded at the same location.

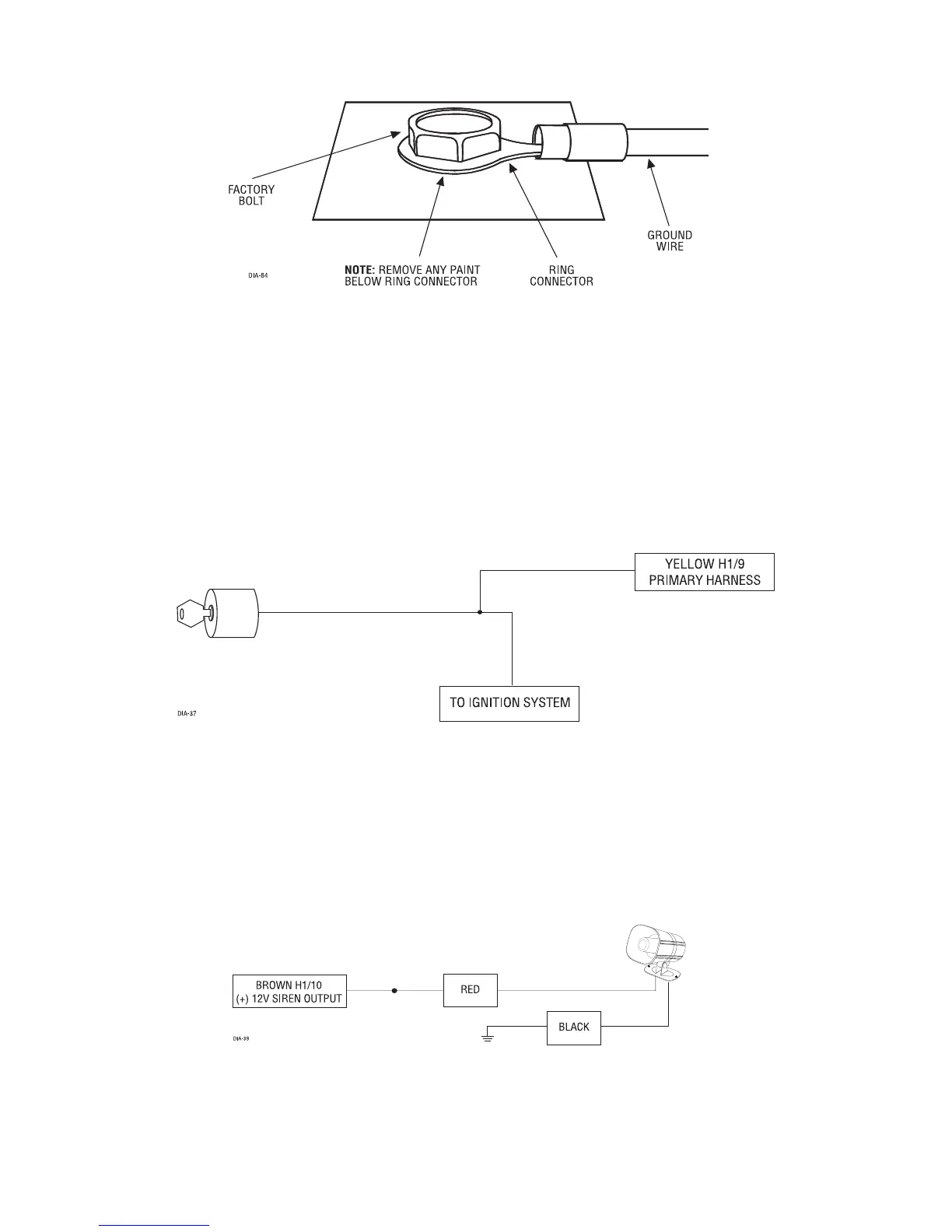

H1/9 YELLOW (+) ignition input
Connect this wire to the (+) 12 volts ignition wire. This wire is pre-wired to
the starter kill relay and must show (+) 12 volts with the key in RUN position
and during cranking. Take great care that this wire cannot be shorted to the
chassis at any point.
\\\\\\\
H1/10 BROWN (+) siren output
Connect this to the RED wire of the Revenger® siren. Connect the BLACK
wire of the siren to (-) chassis ground, preferably at the same point you connect
the control module’s BLACK ground wire.
