Touch Pad Control
Setup & Commissioning

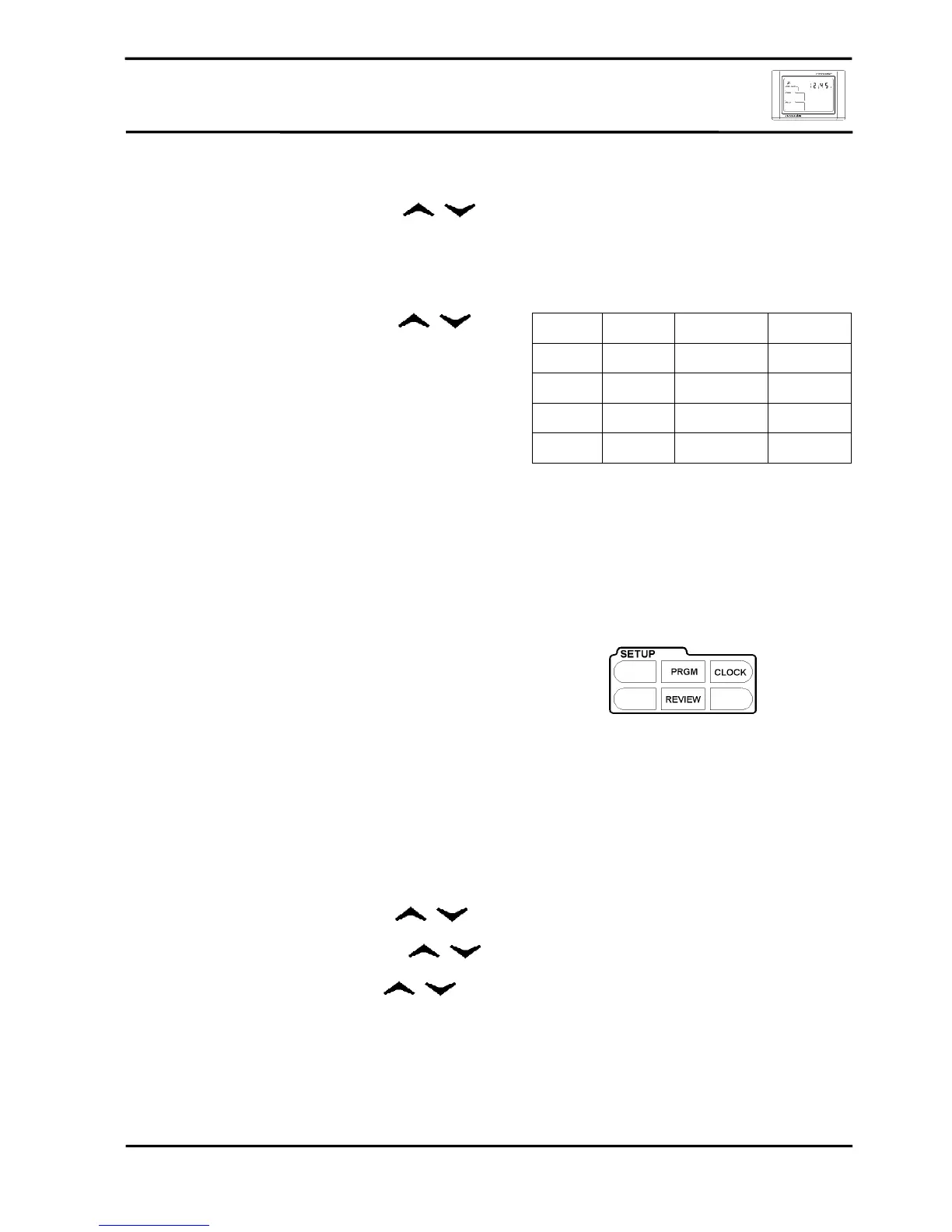

TEK600 Series Control Page 19
Program Setup ……..Continued
Step 6 Set the Minutes using the
arrows
and Press ENTER
Step 7 Select the MODE of operation and press
ENTER.
Step 8 Adjust the output using the
arrows and press ENTER
Step 9 Program the second period using steps 4 to 8.
Step 10 If only 2 program periods are required press
FINISH. If a 3
rd
period is required program
using Steps 4 to 8.
Step 11 If only 3 program periods are required press
FINISH. If a 4
th
period is required program
using Steps 4 to 8.
Program setup is now complete and all functions are resumed.
Clock Setup
Timer setup will take you through the steps to set your
evaporative air conditioner
Step 1 To select the CLOCK setup touch anywhere in
the SETUP outline.
Step 2 Press CLOCK. The 3 icons will disappear and
edit mode has begun.
Step 3 Three new icons will now be displayed ENTER,
CANCEL & FINISH.
• ENTER will save each step of the program
• CANCEL will abort the setup and no entries will be saved.
• FINISH allows you to stop at any time and save the settings.
Step 4 Adjust the hours using the
arrows. Press ENTER
Step 5 Adjust the minutes using the
arrows. Press ENTER.
Step 6 Adjust the day using the
arrows. Press ENTER.
Time setup is now complete and all functions are resumed.
Default Setup Evaporative Air Conditioning Program
Period ON/OFF Start Time Mode
1 ON 6:00 am THERM
2 OFF 9:00am -
3 ON 4:00 pm THERM
4 OFF 10:00 pm -
