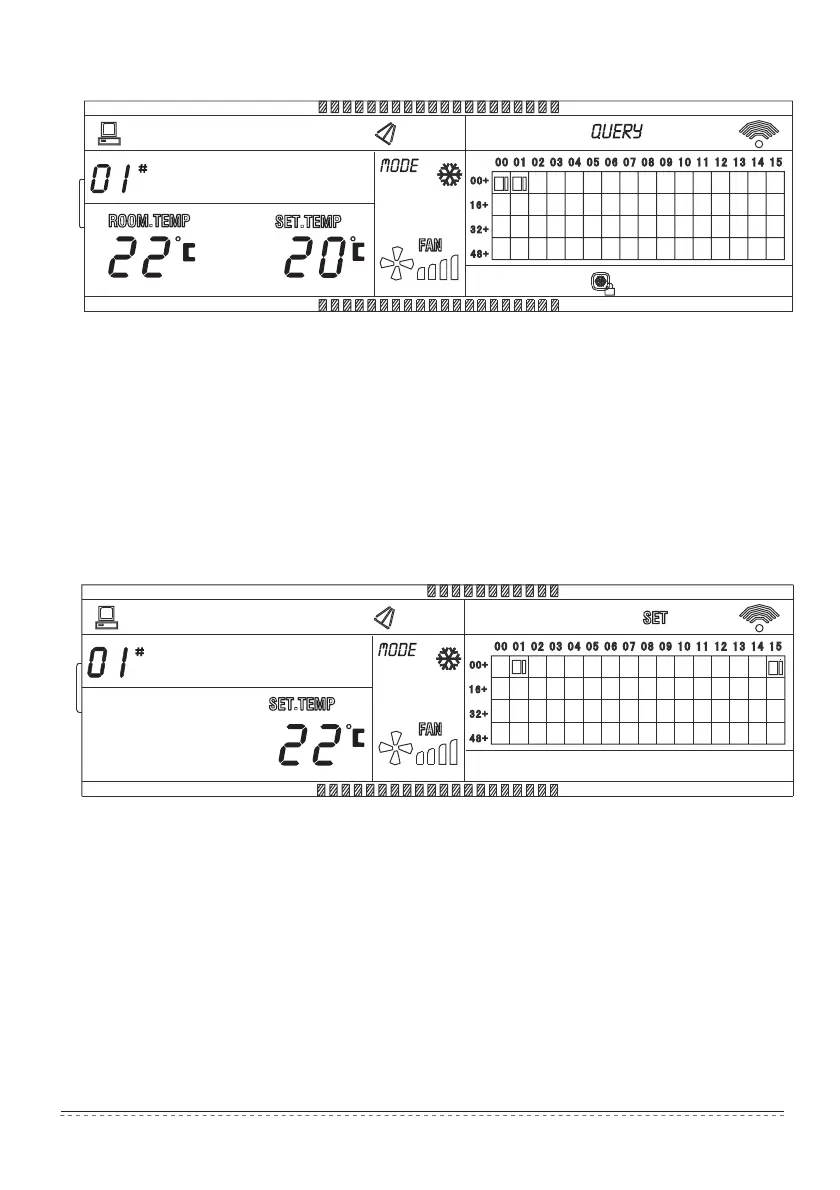

Fig 2.6 The example diagram of the query page
Fig 2.7 The example diagram of setting page
2)
Description of the query page
Installation & Owner‘s Manual
21
ŚThe LCD display shows the query page, and the air conditioner with the address of
01 is being queried.
śMode of the air conditioner with the address 01 is: Cooling, strong air, swing on,
indoor temperature 22
°C,set temperature 20°C, cooling mode “lock”.
ŜIn the array, only the big and small black dots at (00+,00) and (00+,01) are luminous .
It indicates the in-service and power-on status of the air conditioners with the addresses of
00 and 01.
ŝThe centralized controller communicates with the computer normally.
3) Description of the setting page
ŚThe LCD display shows the setting page, and queries the air conditioner with the
address of 01 .
ś7+Hmode of the air conditioner with the address 01 is: Cooling, strong air, swing on,
set temperature 22°C, cooling.
ŜIn the array,only the big black dots at (00+,01) to (00+,15) are luminous. It indicates
the air conditioners with the addresses 01 and 15 are in service.
ŝThe centralized controller communicates with the computer normally.
