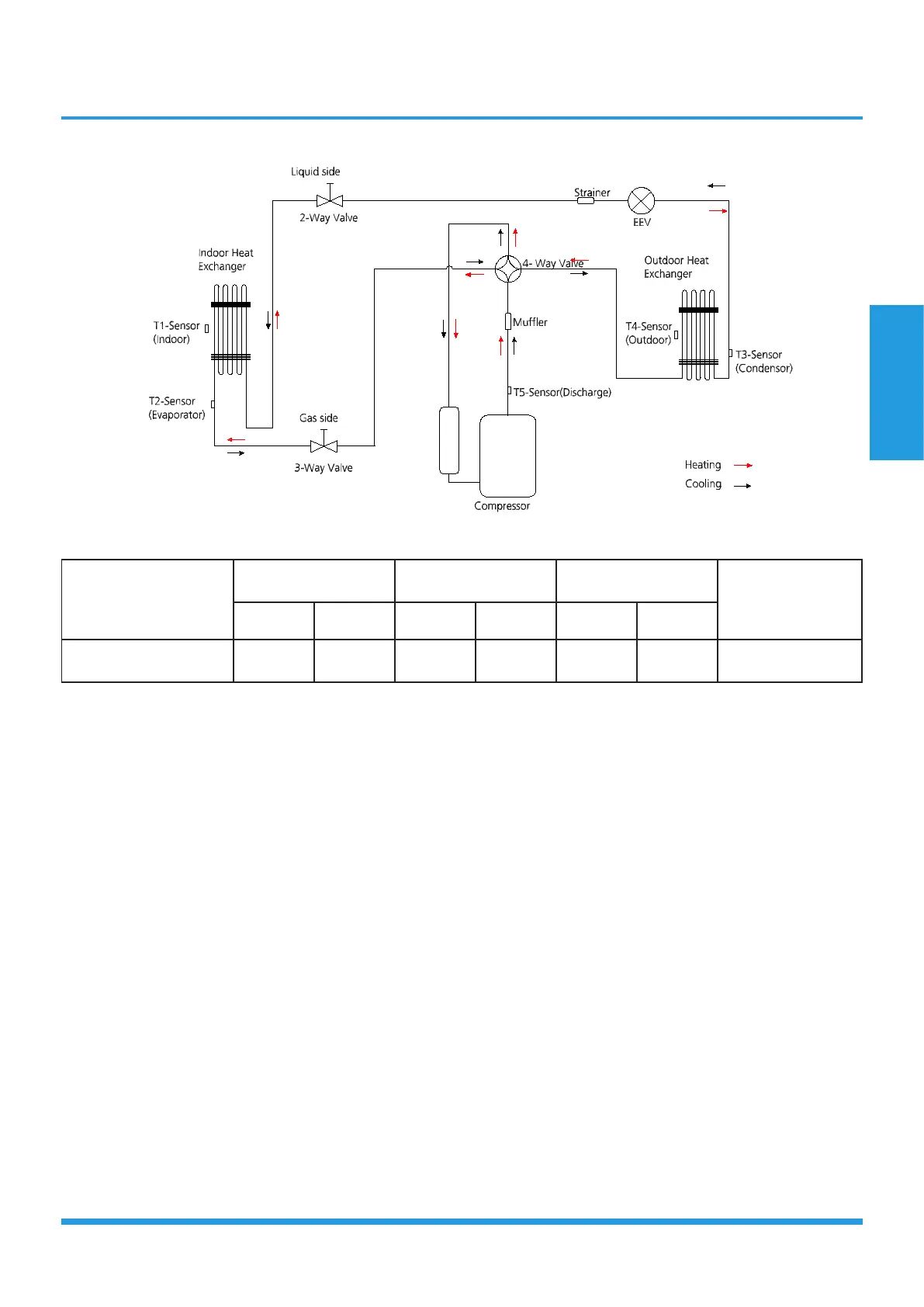

Specifications
Page 31
Model No.
Pipe Size (Diameter:ø)
inch
Piping length (m/ft)
Elevation (m/ft)
Additional Refriger
-
ant
Gas
Liquid
Rated
Max.
Rated
Max.
MC2-Y 70M
5/8
3/8
5/16.4
50/164.0
0
25/82
24g/m (0.26oz/ft)
30
32
