5 - RACCORDEMENTS ELECTRIQUES
5.11 Raccordements thermostats
SC3V - Contrôle électronique simplifié avec modulation continue moteur DC à 4 vitesses avec avec thermostat à bord sans
interface RS 485

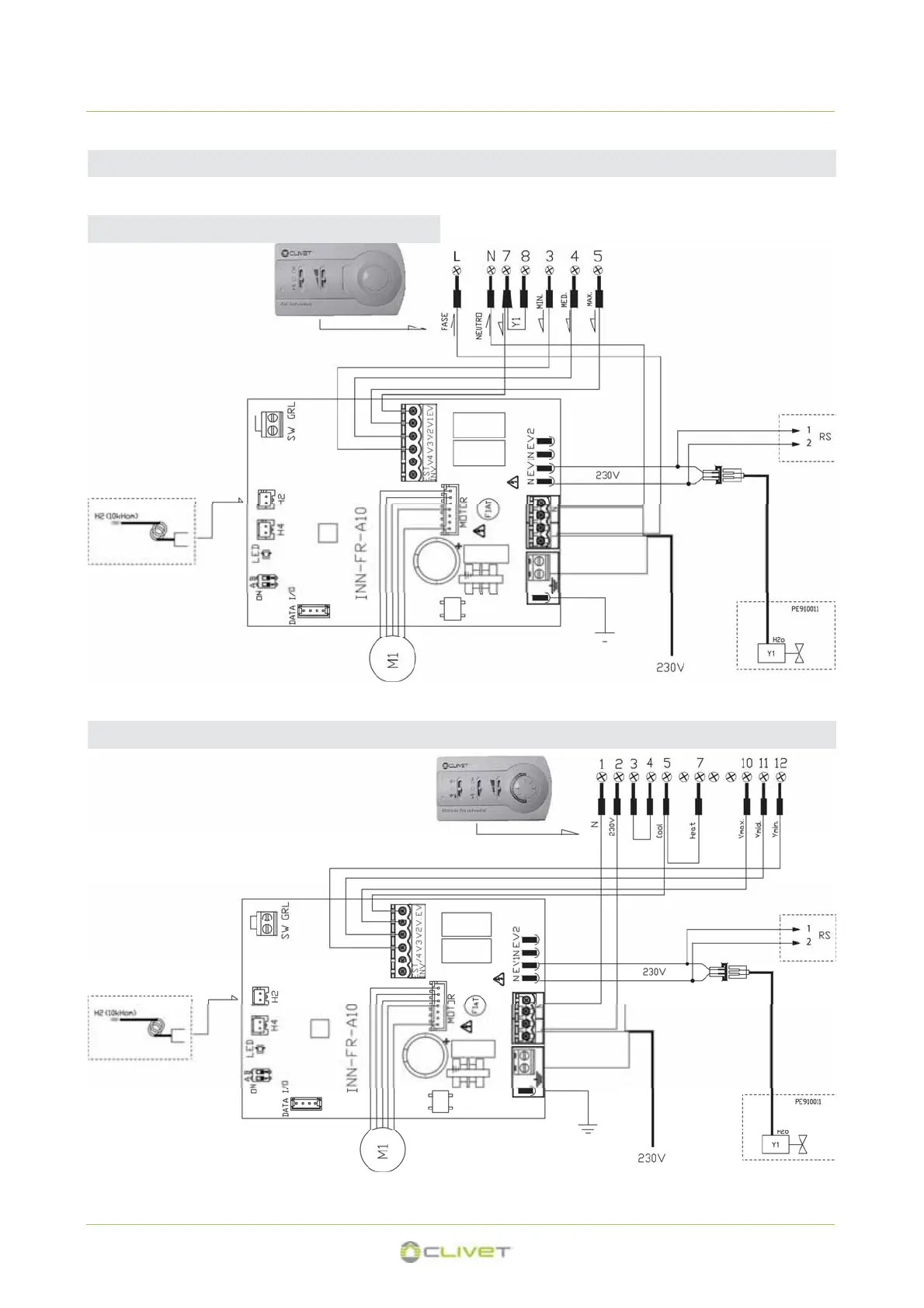

Thermostat HID-E1 - installation 2 tubes
Y1 Électrovalve eau (Chauffage/ Refroidissement) RS Option plancher (page 122)
2 tubes
M1 = moteur
Version à
encastrer
Sonde eau
Pas raccordée
Y1 Électrovalve eau (Chauffage/ Refroidissement) RS Option plancher (page 122)
Thermostat HID-E2 - installation 2 tubes
2 tubes
M1 = moteur
Sonde eau
Pas raccordée
112
