M1 = moteur
Ycool Électrovalve eau (Refroidissement) Yheat Électrovalve eau (Chauffage)

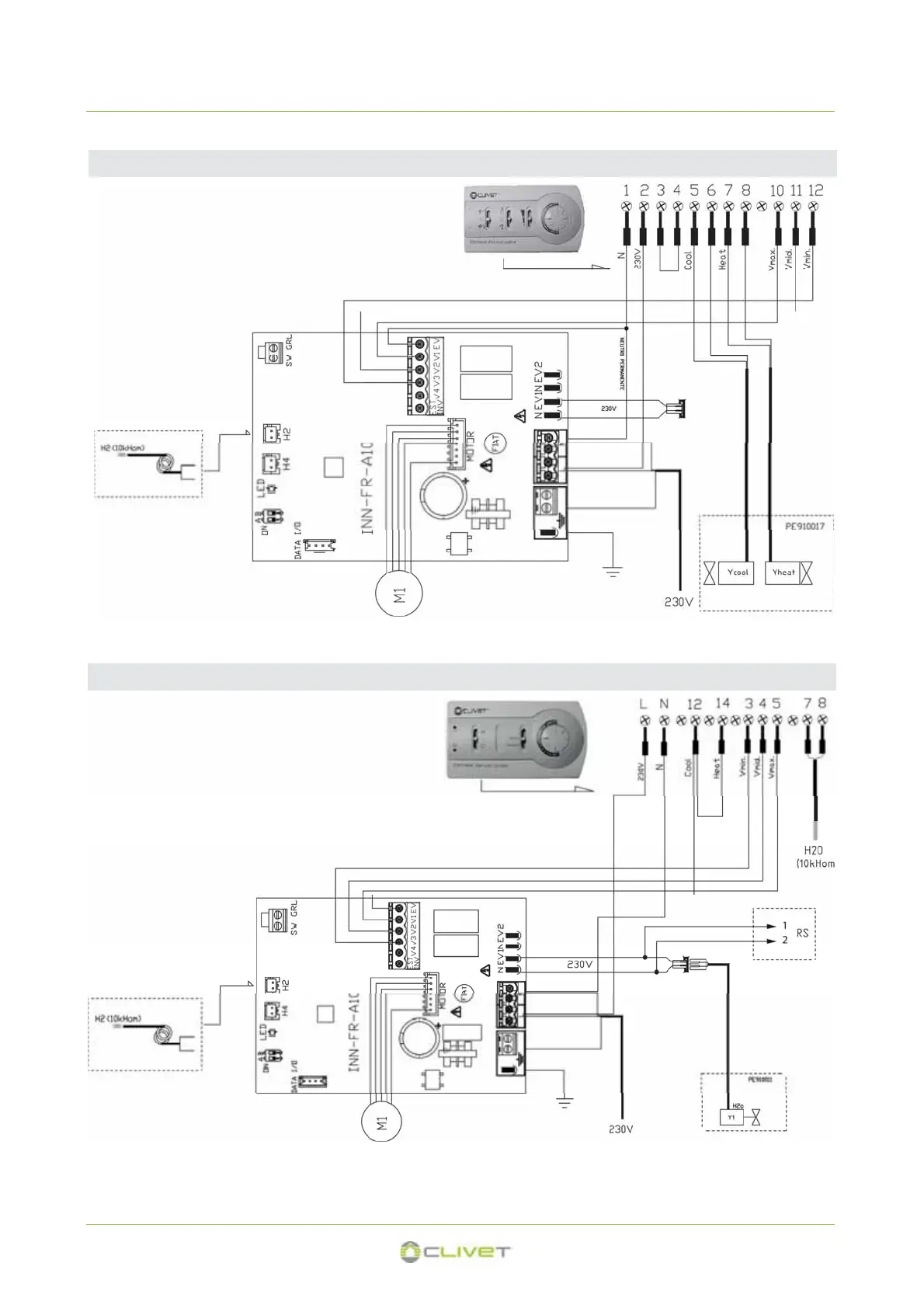

Thermostat HID-E2 - installation 4 tubes
5 - RACCORDEMENTS ELECTRIQUES
4 tubes
Thermostat HID-E3 - installation 2 tubes
2 tubes
sonde eau
thermostat
Y1 Électrovalve eau (Chauffage/ Refroidissement) RS Option plancher (page 122)
M1 = moteur
Sonde eau
Pas raccordée
Sonde eau
Pas raccordée
113
