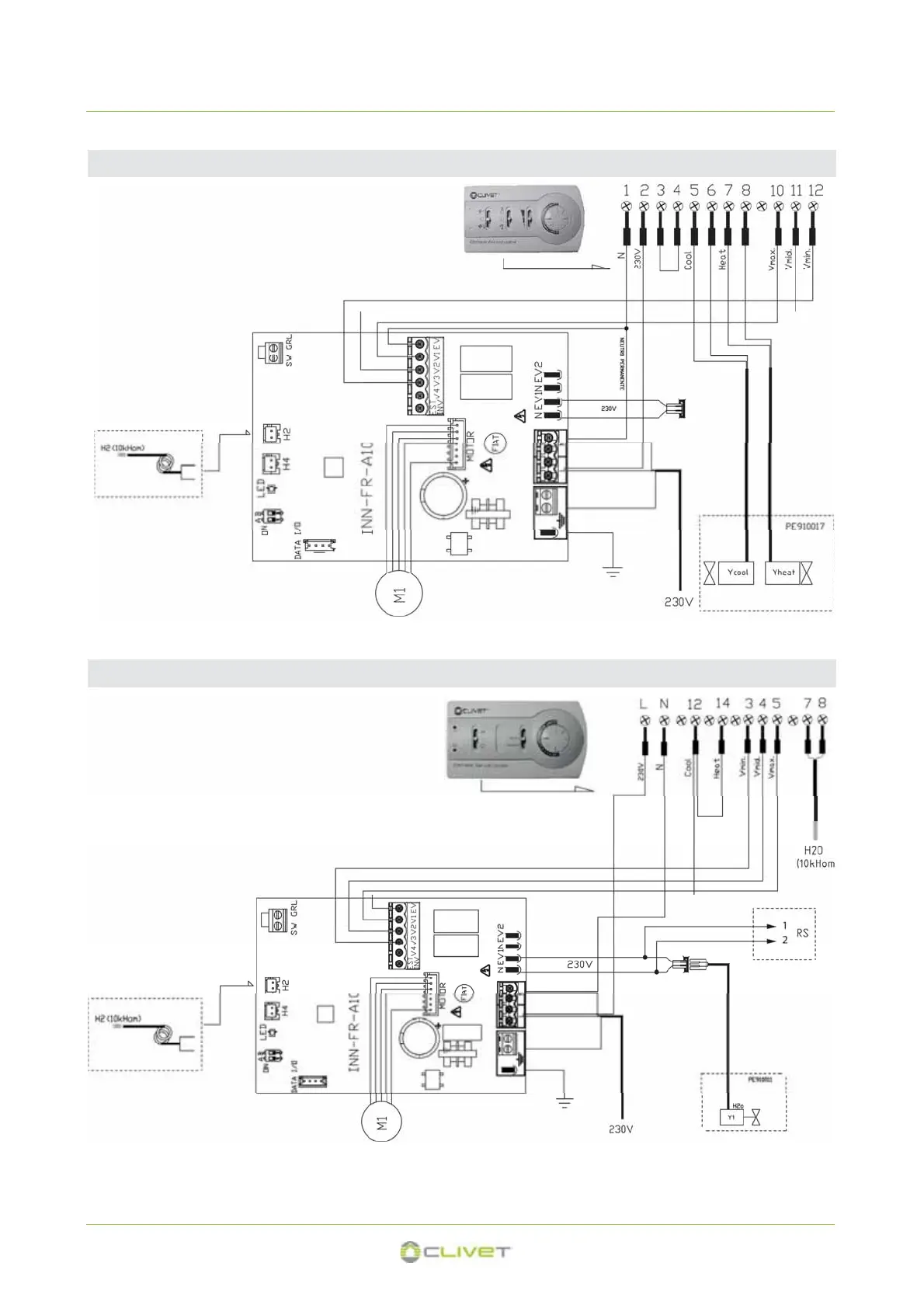

5 - COLLEGAMENTI ELETTRICI
Termostato HID-E2 - impianto 4 tubi
Ycool Elettrovalvola acqua (raffreddamento) Yheat Elettrovalvola acqua (riscaldamento)
4 tubi
Termostato HID-E3 - impianto 2 tubi
2 tubi
sonda acqua
termostato
Y1 Elettrovalvola acqua (riscaldamento/raffreddamento) RS Opzione radiante (pag.26)
M1 = motore
Sonda acqua
Non connessa
M1 = motore
Sonda acqua
Non connessa
