4 - WATER CONNECTIONS

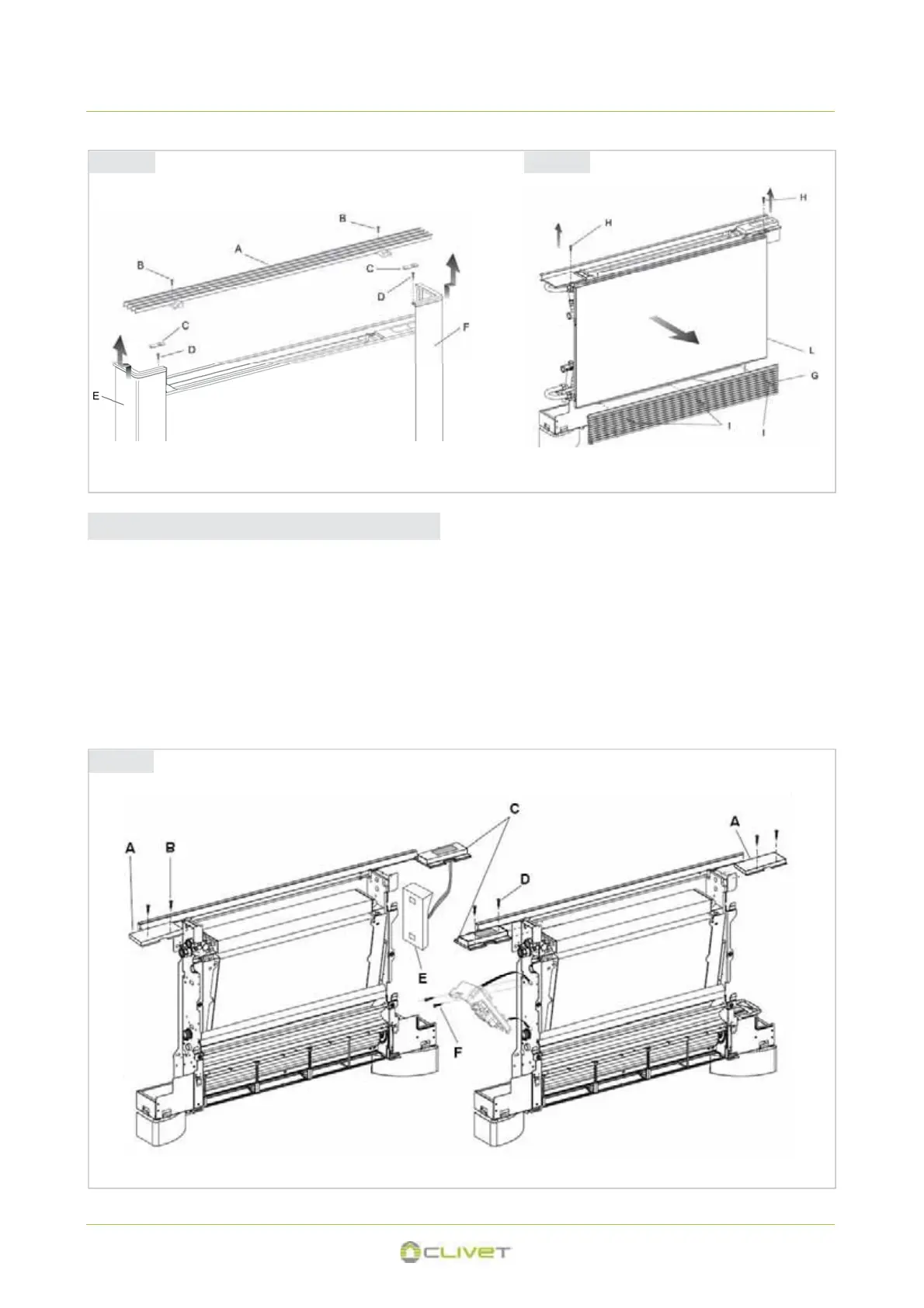

4.4.2 Dismounting control panel
x Position the system master switch to OFF.
x Dismount the door that accesses the collector units (fig.
20 ref. A) unscrewing the two fixing screws (fig. 4.6 ref. B).
x Dismount the control panel (fig. 4.6 ref. C) unscrewing the
two fixing screws (fig. 4.6 ref. D).
x Unplug the control board (fig. 4.6 ref. E), unscrewing the
two fixing screws (fig. 4.6 ref. F).
x Unplug the connectors of the electrical connections.
x Remove the cables inside the machine and re-insert them
from the opposite side.
x For the motor connection, use the special cable for right
hand fixtures , available as an accessory.
x Invert the mounting positions of the door (fig. 4.6 ref. A) with
the control panel (fig. 4.6 ref. C) and remount them in their
respective positions.
fig 4.6
fig 4.4 fig 4.5
M09160D17-02 61
