Installation
d
It is PROHIBITED to install the indoor
unit in the following locations:
– in a bathroom or laundry room, because
excess humidity can reduce its service life
and corrode the cables;
– near sources of heat, steam or combustible
gas;
– near flammable objects, such as curtains or
fabrics;
– near obstacles that could obstruct air
circulation;
– near the entrance;
– In an area that is not exposed to direct
sunlight;
– areas exposed to strong electromagnetic
waves;
d
It is PROHIBITED to install the indoor
unit in the following locations:
– oil extraction drilling or fracking areas;
– coastal areas with extremely salty air;
– areas with an atmosphere impregnated with
caustic gases, for example near thermal
sources;
– areas subject to strong power fluctuations,
for example factories;
– enclosed spaces (cabinets, etc.);
– kitchens with natural gas cooker hobs;
– areas used for storing gas or flammable
materials.

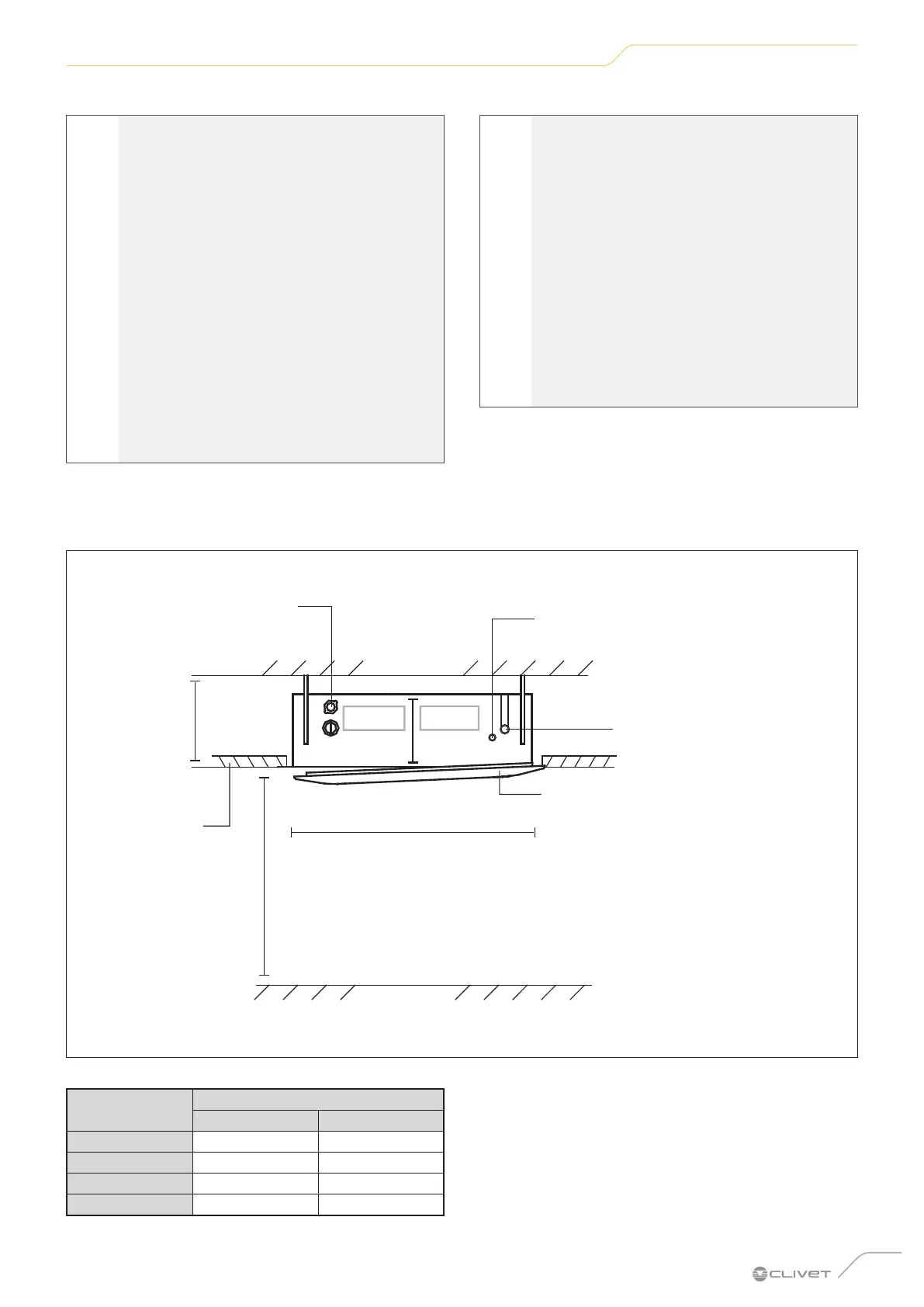

Please refer to the following diagram for wall and ceiling distances:
Drain pipe connection point
Refrigerant pipe connection point
(liquid side)
Refrigerant pipe connection point
(gas side)
Ceiling
Front panel
88 cm (ceiling hole)
>2.5 m
H
A
False ceiling
Floor
Fig. 3
Indoor unit
Length (mm)
A H
70M 205 > 235
105M 245 > 275
140M 287 > 317
160M 287 > 317
