Installation

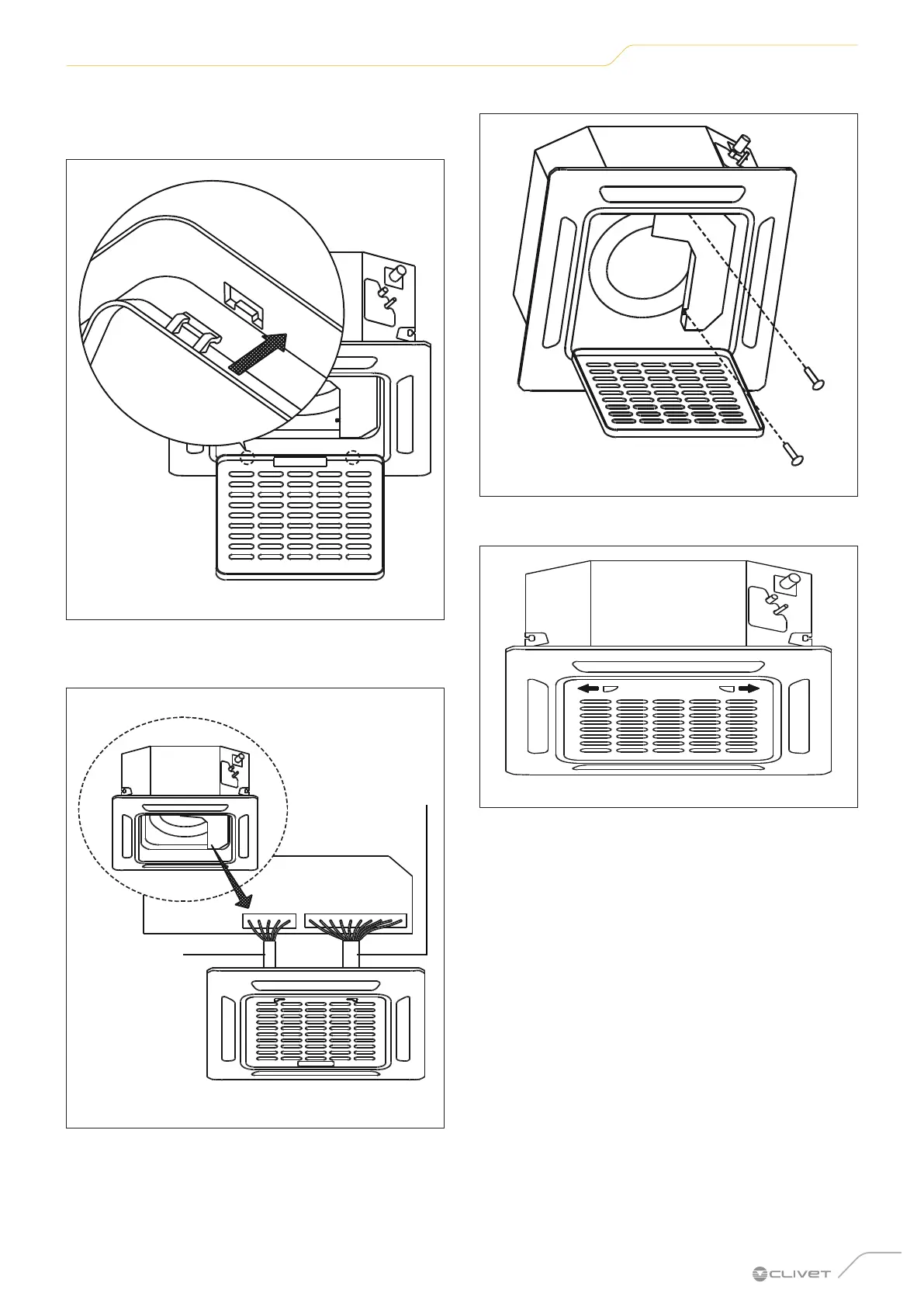

3 Assemble the intake grille.
– Check that the hooks on the back of the grille fit
correctly into the panel slot.
Fig. 25
4 Connect the two decorative panel cables to the main
unit board.
Cable with
5 conductors
10 conductors
Fig. 26
5 Fasten the electrical panel cover with two screws.
Fig. 27
6 Close the intake grille and close the two hooks.
Fig. 28
