Technical data
TO INDOOR COMM. BUS
XT2
Y/G
2
S1
S2
NOTE Please use 2-core
shielded wire.

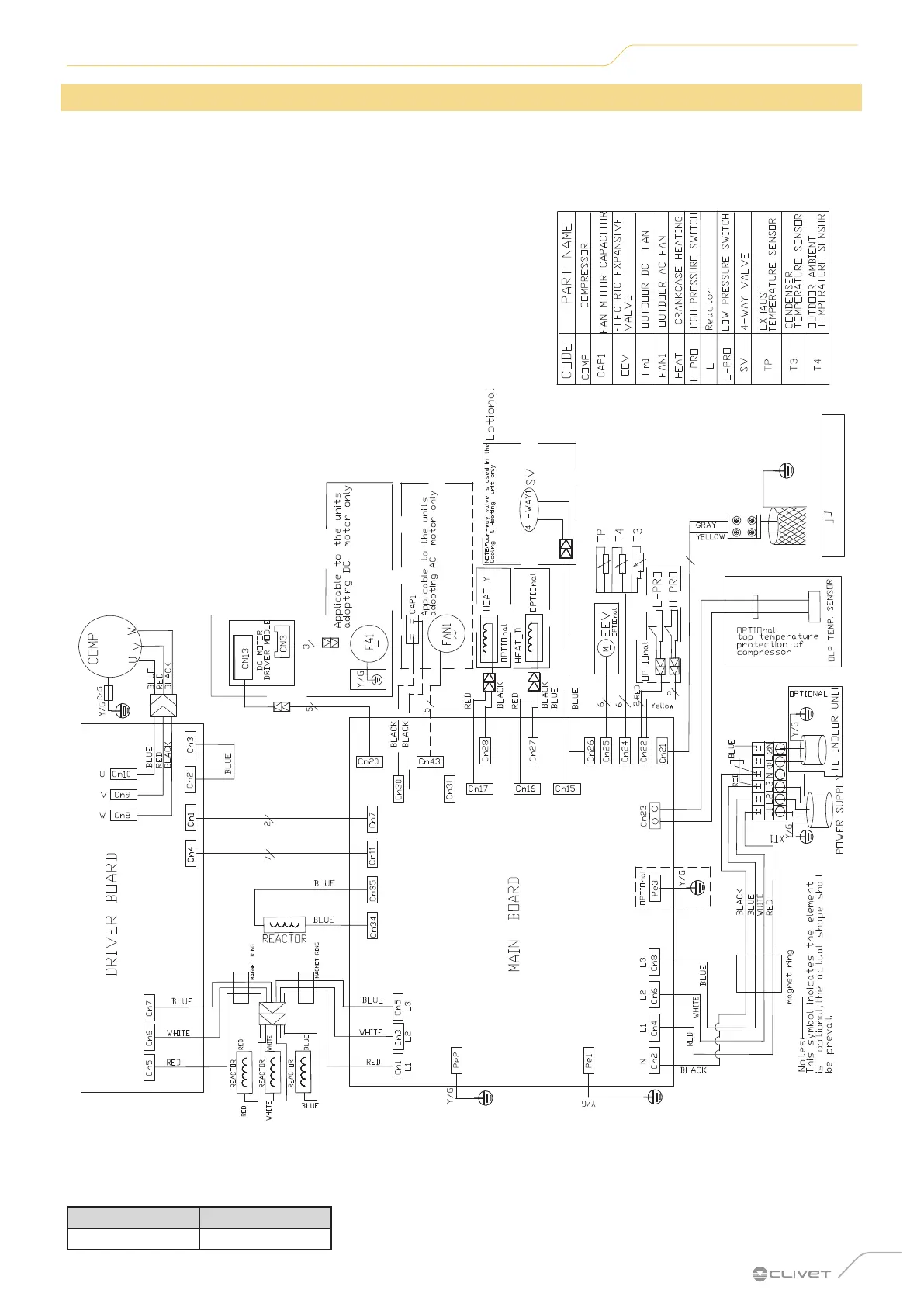

8.7 Outdoor unit wiring diagrams (105T)
SERIES SIZE
MC2-Y 105T
