Keep indoor unit, outdoor unit, power supply wiring and
transmission wiring at least 1 meter away from televisions
and radios. This is to prevent image interference and
noise in those electrical appliances. (Noise may be
generated depending on the conditions under which the
electric wave is generated, even if 1 meter is kept.)
3. OUTDOOR UNIT INSTALLATION
3.1 Installation place
CAUTION
There is combustible gas leakage.
There is much oil (including engine oil) ingredient.
Please keep away from the following place, or malfunction of the
machine may be caused:
There is salty air surrounding(near the coast)
There is caustic gas (the sulfide, for example) existing in the
air (near a hotspring)
A place the heat air expelled out from the outdoor unit can
reach your neighbor’s window.
A place that the noise interferes your neighbors every day
life.
A place that is too weak to bear the weight of the unit
Uneven place.
Insufficient ventilation place.
Near a private power station or high Frequency equipment.
The insulation of the metal parts of the building and the air
conditioner should comply with the regulation of National Electric
Standard.
Install indoor unit, outdoor unit, power cord and connecting
wire at least 1m away from TV set or radio to prevent noise or
picture interference.
Install the unit in the place that can offer enough space for
installation and maintenance.Don’t install it in the place that
has a high requirement for noise,such as the bed room.
Single unit installation
Parallel connect the two units or above
Parallel connect the front with rear sides
Installation in the following places may result in some troubles.
Do not install the unit in such places below.
A place full of machine oil.
A place full of sulphuric gas.
A place where high-frequency radio waves are likely to be
generated as from audio quipment, welders, and medical
equipment.

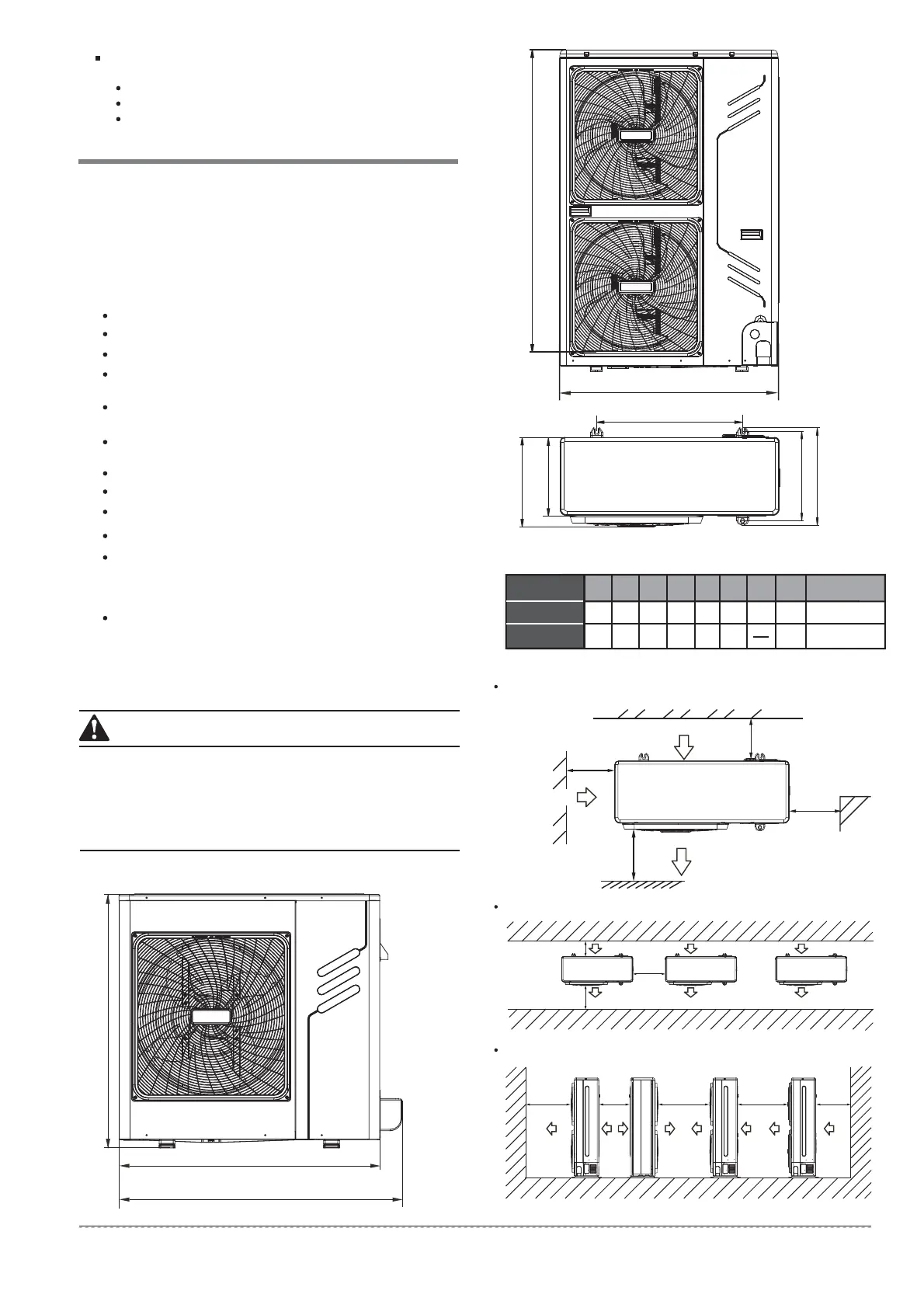

3.2 Installation space (Unit:mm)
Fig.3-1
H
G
A
MODEL
(
kW
)
990
900
624
600
366
360
396
400
966
1327
380
366
8/10.5
12/14/16/18
AB EDGFC
Fig
320
339 Fig.3-1 Fig.3-3
Fig.3-2 Fig.3-3
Table 3-1unit˖mm
H
1073
——
Fig.3-2
H
A
B
C
D
E
F
Fig.3-3
>300
>600
>300
>2000
(Wall or obstacle)
Maintain
channel
Air outlet
Air inlet
Air inlet
Fig.3-4
Fig.3-6
Fig.3-5
>600
>2000
>300
>2000 >500 >3000 >3000 >300
