16
Installation
l
WARNING
During all handling operations, use the
appropriate PPE such as hard hat, gloves and
safety shoes.
l
WARNING
Before use, remove the pieces of PE foam in the
back of the unit that protect the condenser. Be
careful not to damage the fins or the eciency
of heat exchange could be compromised.
d
It is PROHIBITED to install the outdoor
unit in the following places:
– near an obstacle blocking the air inlets and
outlets;
– near a public road, crowded areas or places
where the noise from the unit may cause
disturbance to others;
– near animals or plants that may be disturbed
by the hot air coming out;
– where the hot air expelled by the outdoor unit
can reach neighbours’ windows;
– near combustible gas sources;
– in very dusty places;
– in places excessively exposed to salty air;
– in places with an oily atmosphere;
– in places with sulphur gas;
– in places where
high-frequency radio waves
may be generated, e.g. due to the presence
of audio equipment, welding machines and
medical devices
;
– on uneven bases or surfaces that cannot
withstand the weight of the unit.
l
WARNING
Install the indoor unit, the outdoor unit, the
power cable and the connection cable at least
1 metre away from televisions or radios to
avoid interference with the sound or images.

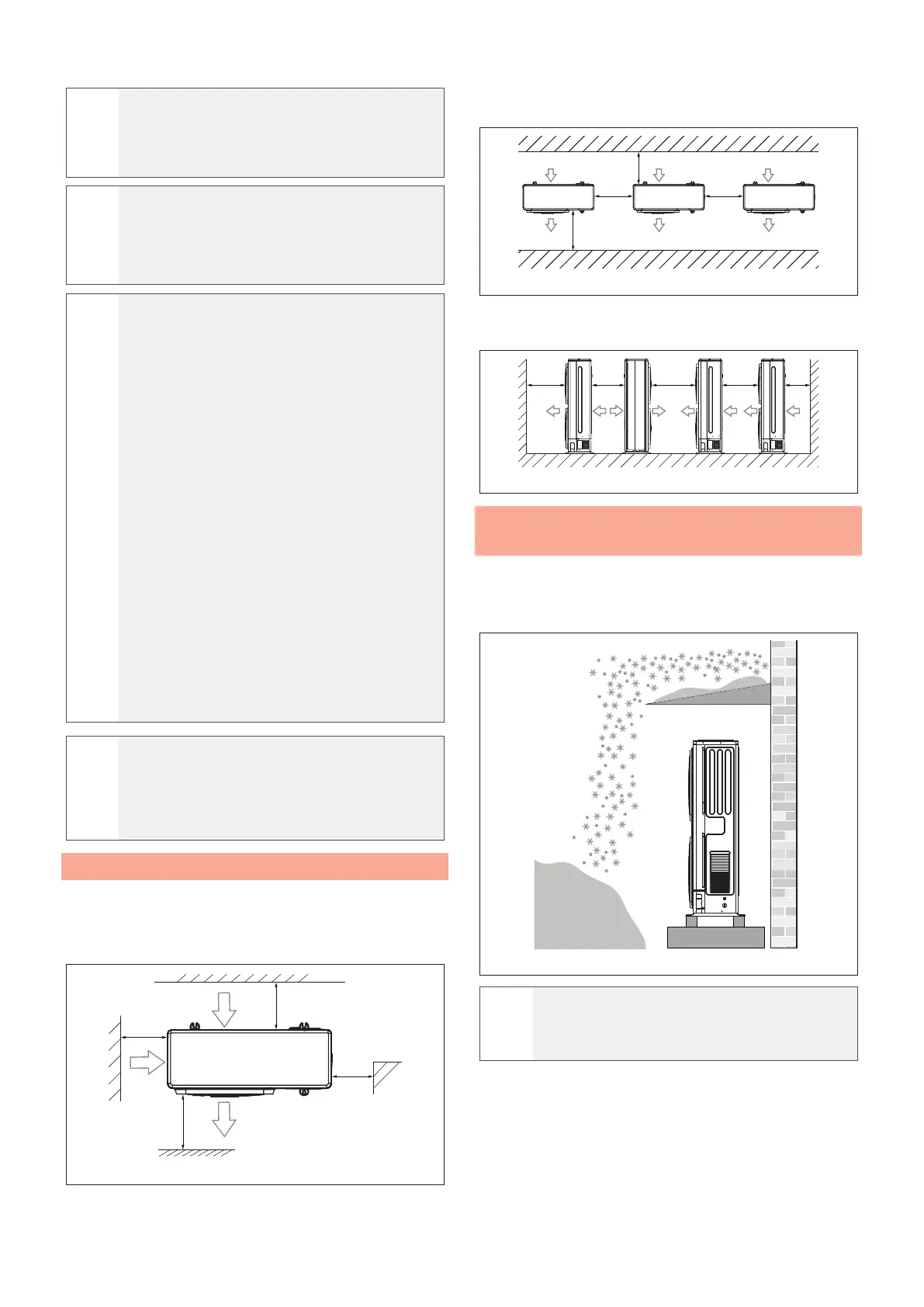

3.3 Dimensions of the installation area
The appliance must be installed in such a way that a
sucient amount of air can flow through the unit itself.
When installing a single unit, the following distances must
be observed:
> 2000
mm
> 300
mm
300
mm
> 600
mm
Fig. 12
If several appliances are installed in a line (independent),
the following distances must be observed:
> 600
mm
> 600
mm
> 300 mm
> 2000 mm
Fig. 13
If the front and rear sides are connected in parallel,
observe the following distances:
> 2000
mm
> 500
mm
> 3000
mm
> 3000
mm
> 300
mm
Fig. 14
3.4 Requirements for installation in
particular climatic conditions
In the event of frequent snowfall, install a snow screen.
Install the unit raised o the ground.
Prevent snow from obstructing the coils.
.
Fig. 15
a
CAUTION
Do not obstruct the air flow of the unit when
installing the snow screen.
