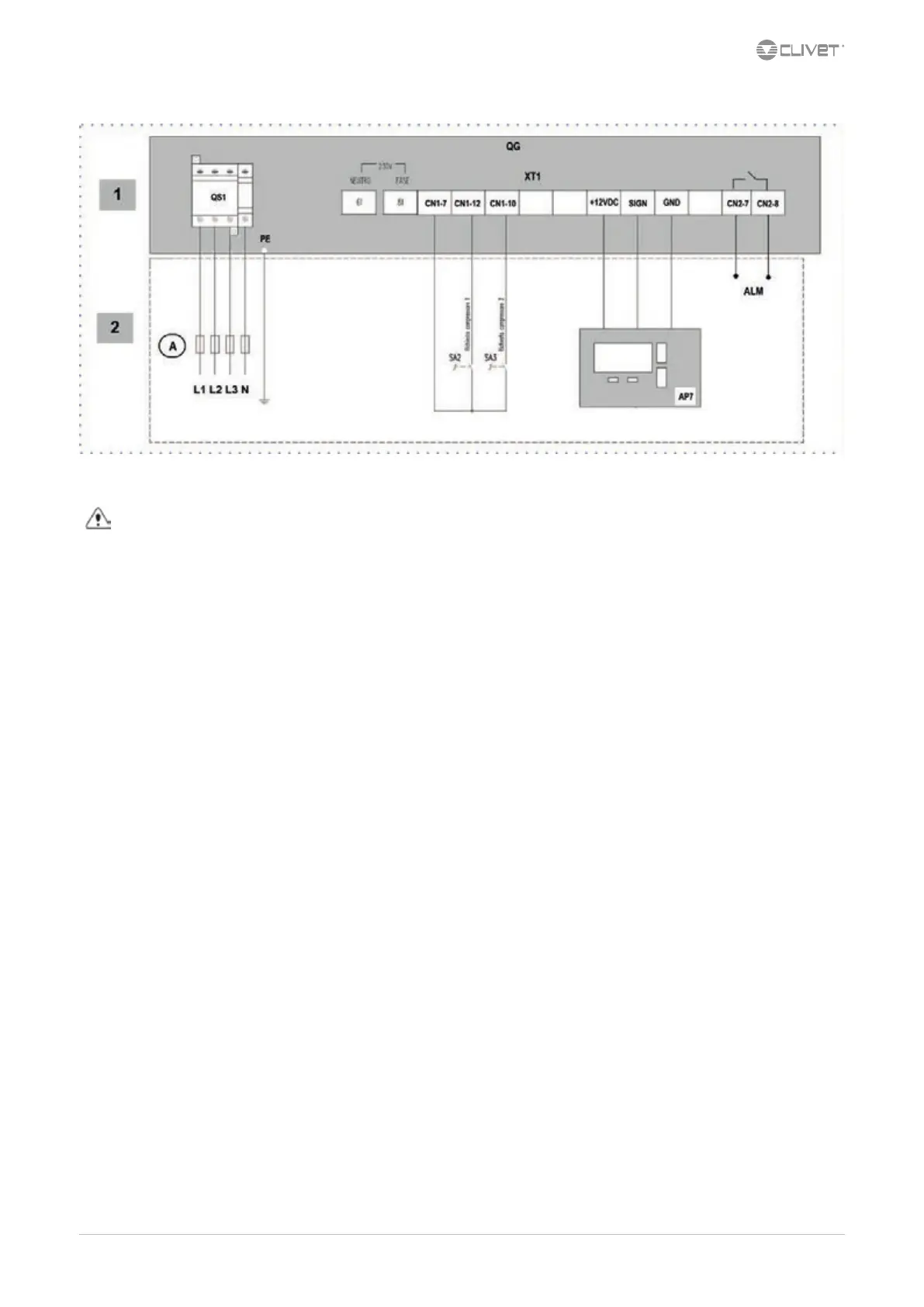

5.5 Connections performer by customer
1 Unit SA3 Compressor 1 + Compressor 2 request
2 Connections perfomer by customer AP7 Room keypad
A Fuses
Provided by the customer
ALM Cumulative fault signal,max 24v/AC
QS1 Isolating switch XT1 Terminal block of the customer connections
QG Electrical panel
SA2 Compressor 1 request
5.6 RCTX - Remote control
For details see:
5.6 RCTX - Remote controlp.13
5.7 CMSC2X - Serial communication module with RS485 serial converter kit
For details see:
5.7 CMSC2X - Serial communication module with RS485 serial converter kitp.13
