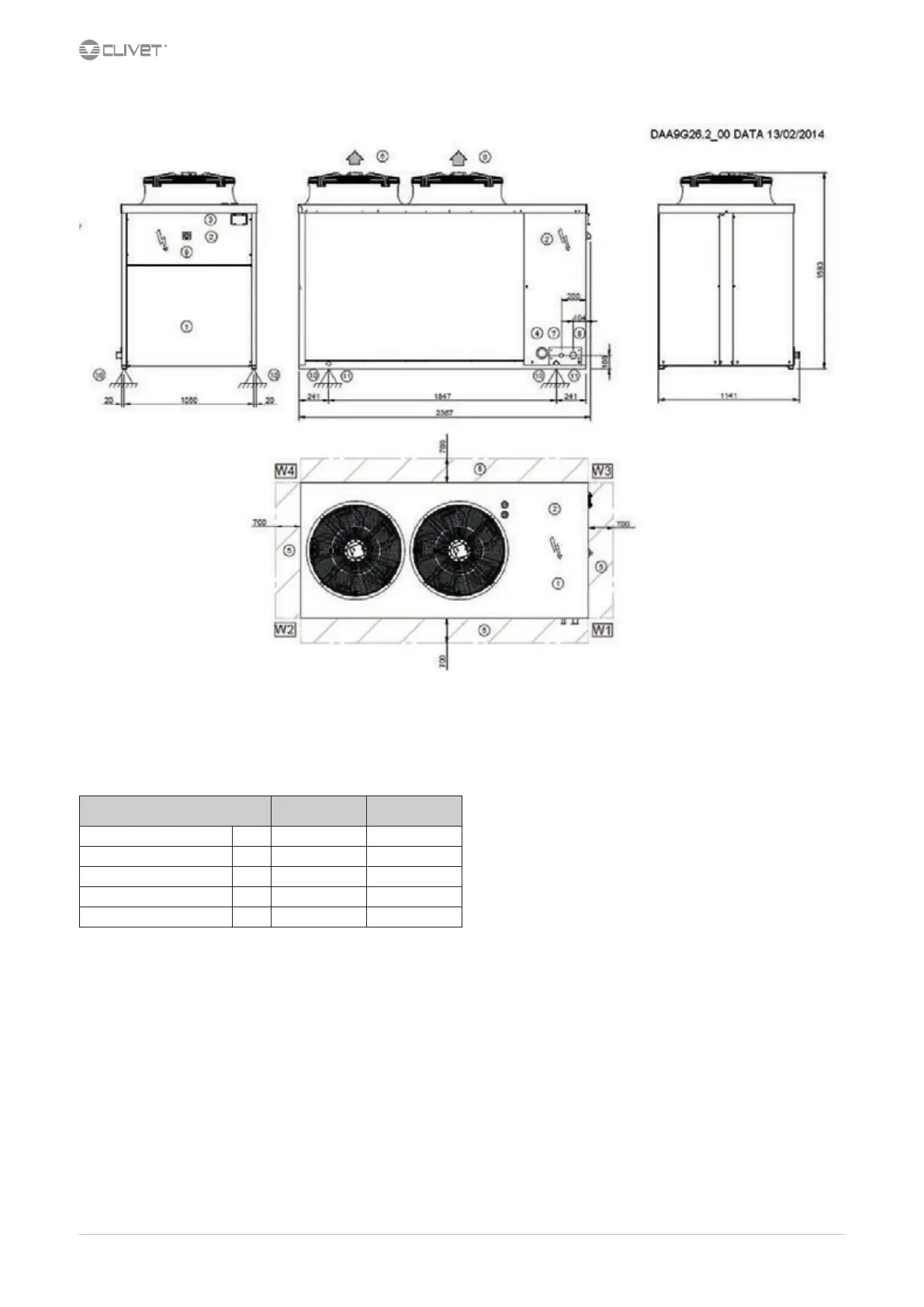

32 MSAT-XEE 8.2-30.2 M09G60E14-04
11.3 Size 26.2 - 30.2
1. Compressor compartment
2. Electrical panel
3. control keypad
4. Power input
5. Functional spaces
6. Air supply
7. liquid line piping d.16 mm.
8. suction line piping d.28 mm.
9. Main isolator switch
10. vibration mounts position
11. lifting holes position
Size 26.2 30.2
A - Length mm 2367 2367
B - Width mm 1141 1141
C - Height mm 1593 1593
Shipping weight kg 556 569
Operating weight kg 547 561
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
