CLIVET MSAT-XEE 8.2 - Dimensional Drawings; Sizes 8.2 - 10.2 - 12.2 Specifications

30 MSAT-XEE 8.2-30.2 M09G60E14-04

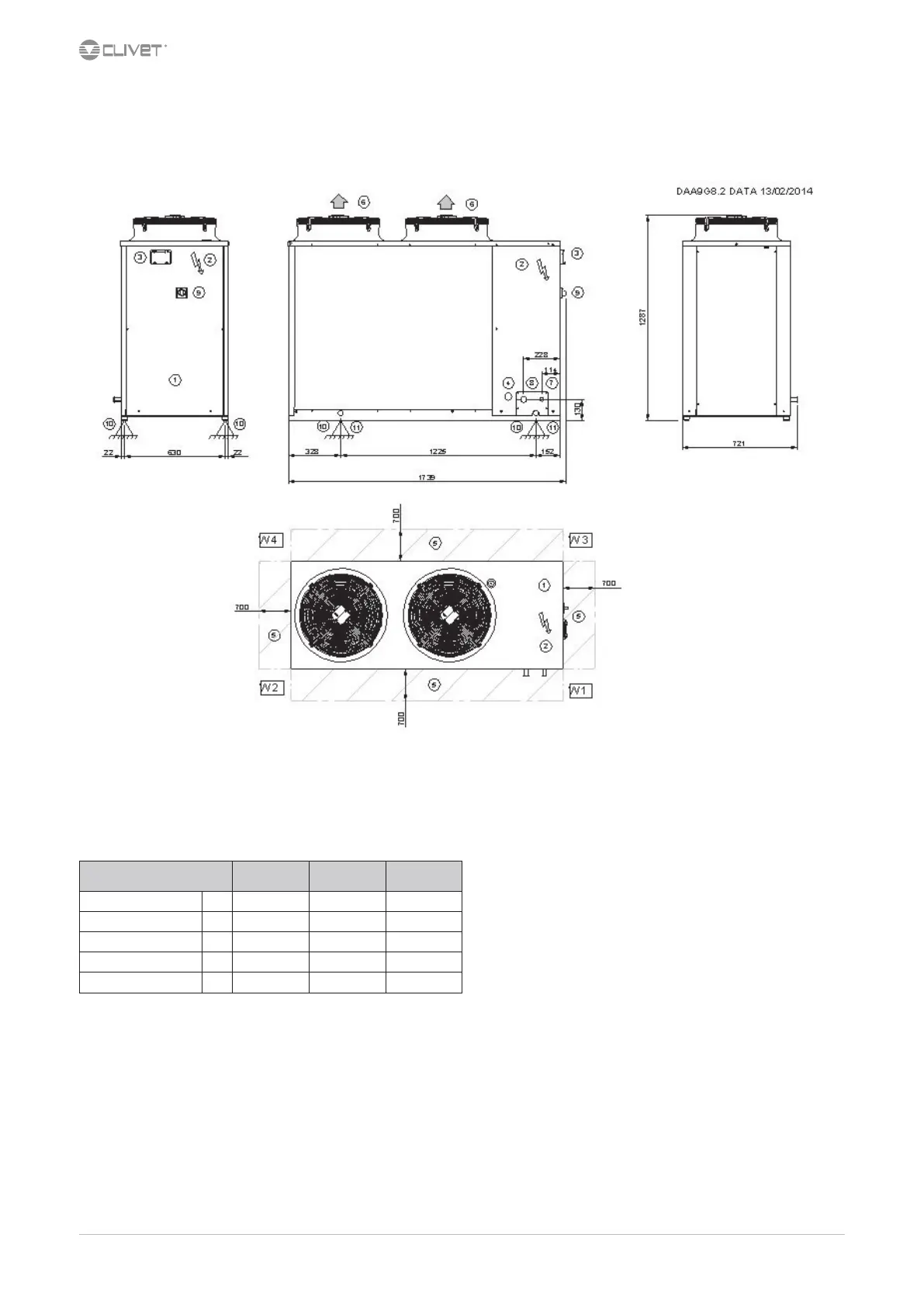

11 Dimensional drawings
11.1 Size 8.2 - 10.2 - 12.2
1. Compressor compartment
2. Electrical panel
3. control keypad
4. Power input
5. Functional spaces
6. Air supply
7. liquid line piping d.16 mm.
8. suction line piping d.28 mm.
9. Main isolator switch
10. vibration mounts position
11. lifting holes position
Size 8.2 10.2 12.2
A - Length mm 1739 1739 1739
B - Width mm 721 721 721
C - Height mm 1287 1287 1287
Shipping weight kg 304 309 328
Operating weight kg 298 303 323
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
