CLIVET WBAN 262 User Manual

13

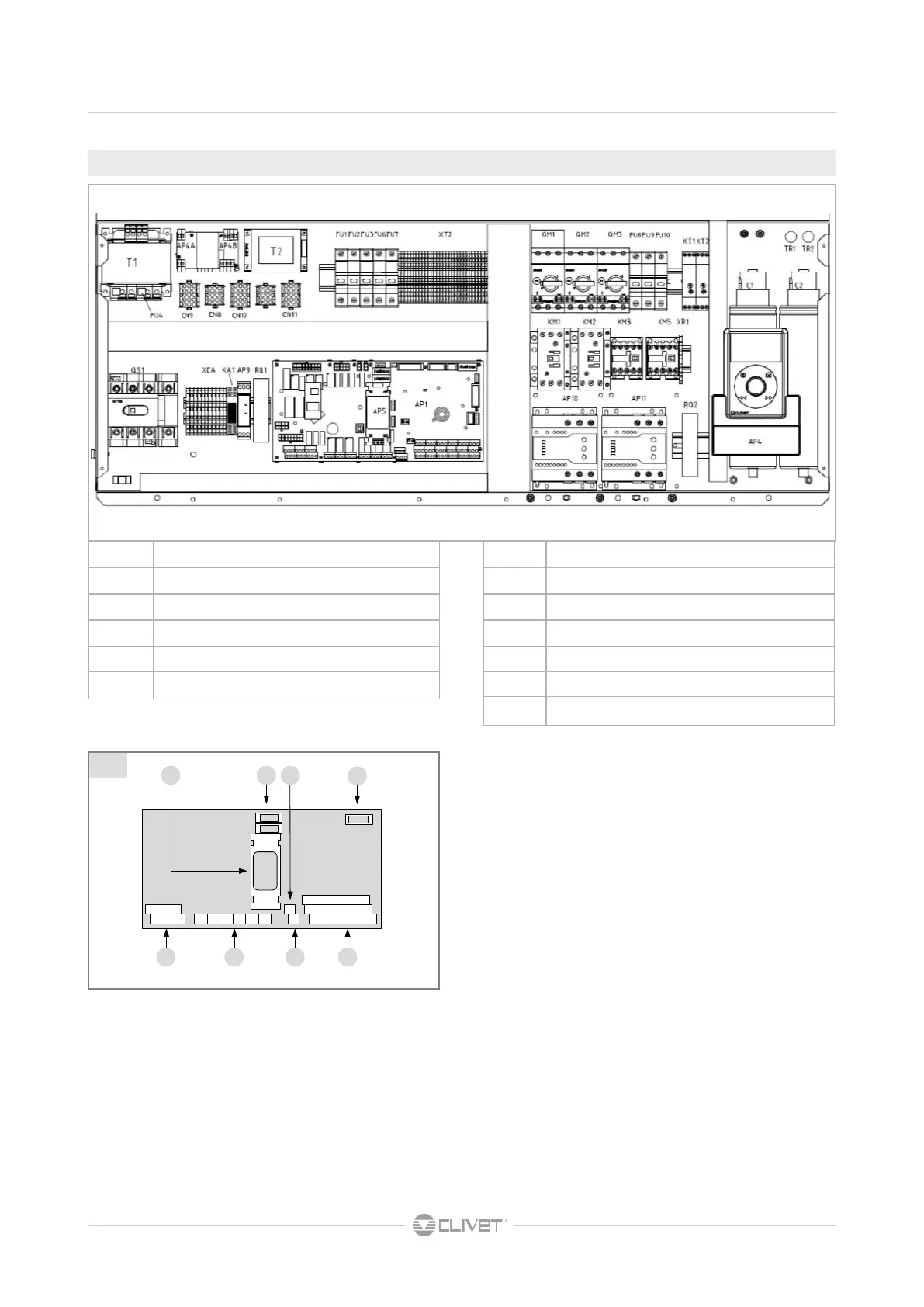

5.6 ELECTRICAL PANEL
5 - ELECTRICAL CONNECTIONS
AP1
Main control module
AP4
Local base for HID-H1 interface
AP4A-B
Fan Module
AP5
RS 485 module
AP10-11
Soft starter
XCA
Terminal block of Customer connections
QM1-2
Compressor motor overload cutout
QM3
Overload cutout switch pump
KM1-2
Compressor contactor
KM3
Pump contactor
FU1
Control circuit fuse
FU2-3
Phase monitor fuse
FU6-7
Fan fuse
AP1
1
RS 485 module
2
auxiliary fuse
3 terminal block XC4
4 terminal block XC5
5 terminal block XC3
6 terminal block XC2
7 terminal block XC1
1 2
4567
2
3
