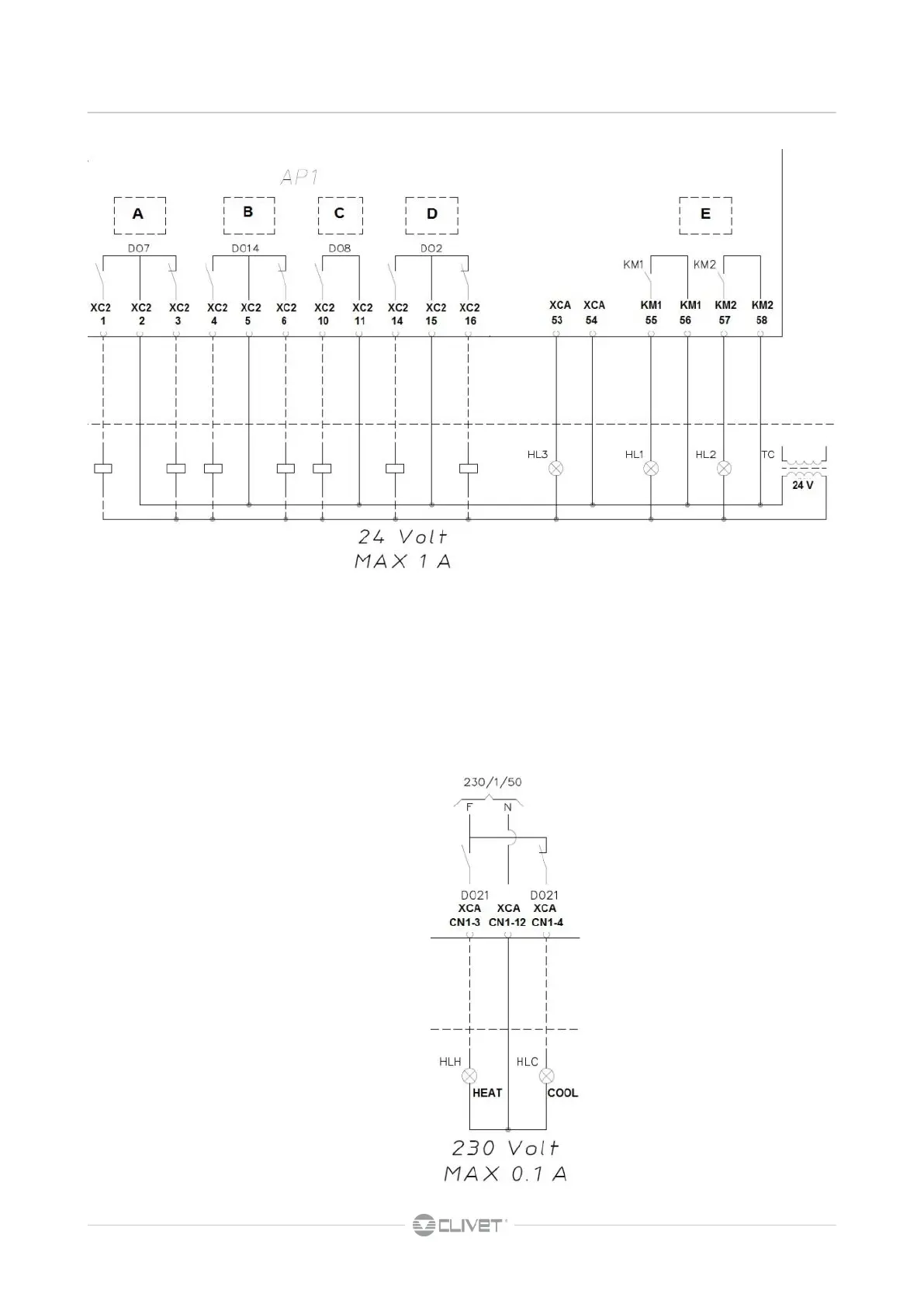

5 - ELECTRICAL CONNECTIONS
A boiler valve control
B sanitary hot water valve control
C boiler control
D cumulative fault alarm relay
E unit operating signal
HL3 3-ways valve status
HL1-2 compressor status
KM1-2 compressor contactor
HLH HEAT status
HLC COOL status
