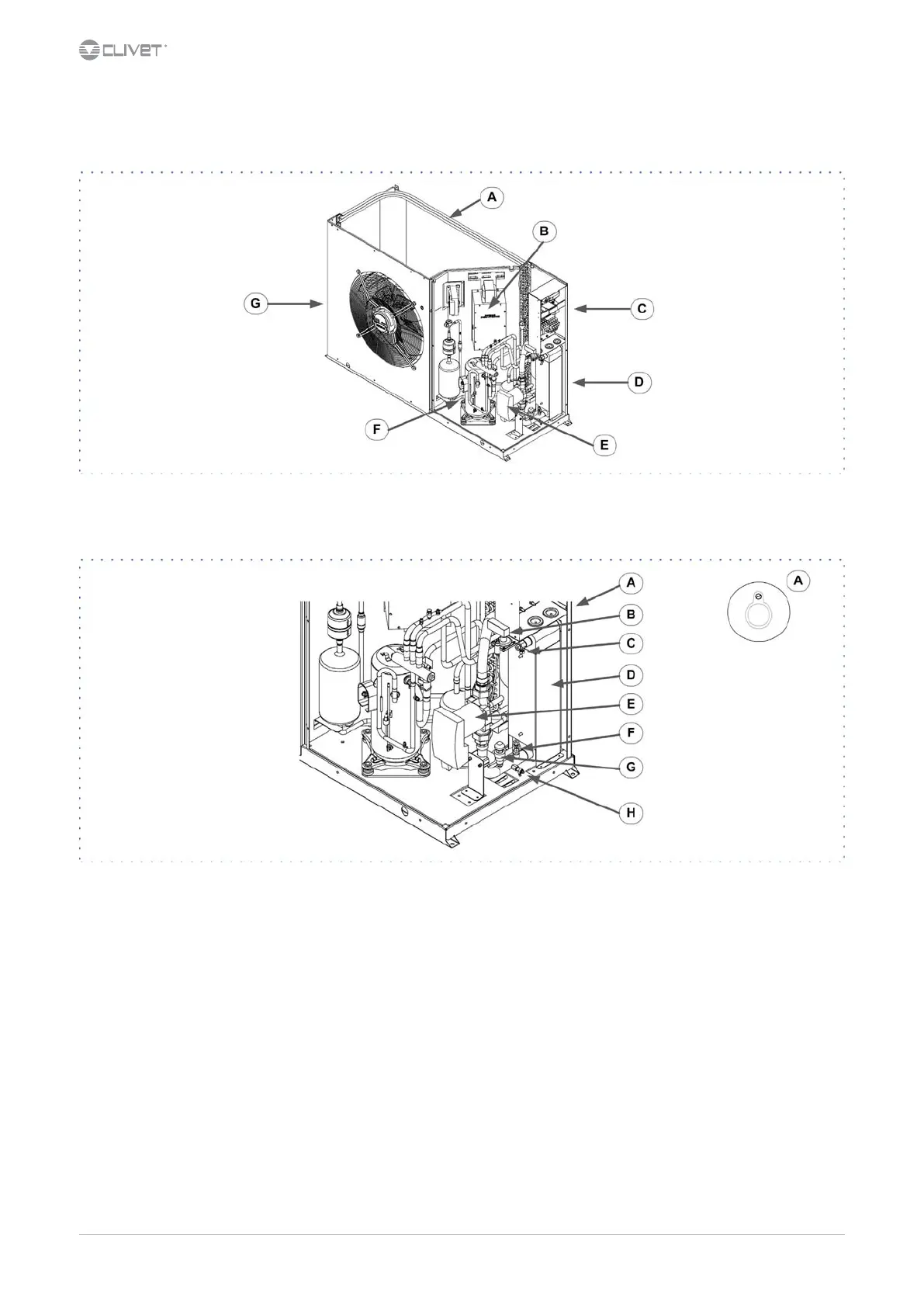

42 WSAT-XIN 21-171 M0Q940G14-03

(size 81÷141)

A. Coil

B. Inverter

C. Electrical panel

D. Exchanger

E. pump

F. Compressor

G. Fan

A. vent

B. Dierential pressure switch

C. input probe

D. plate exchanger

E. pump

F. input probe

G. Safety valve (6 Bar)

H. water outlet
