11.3 KG4UP - Management kit up to 4 units in parallel by the two set point available for each
unit
Max 4 units
Automatic unit rotation

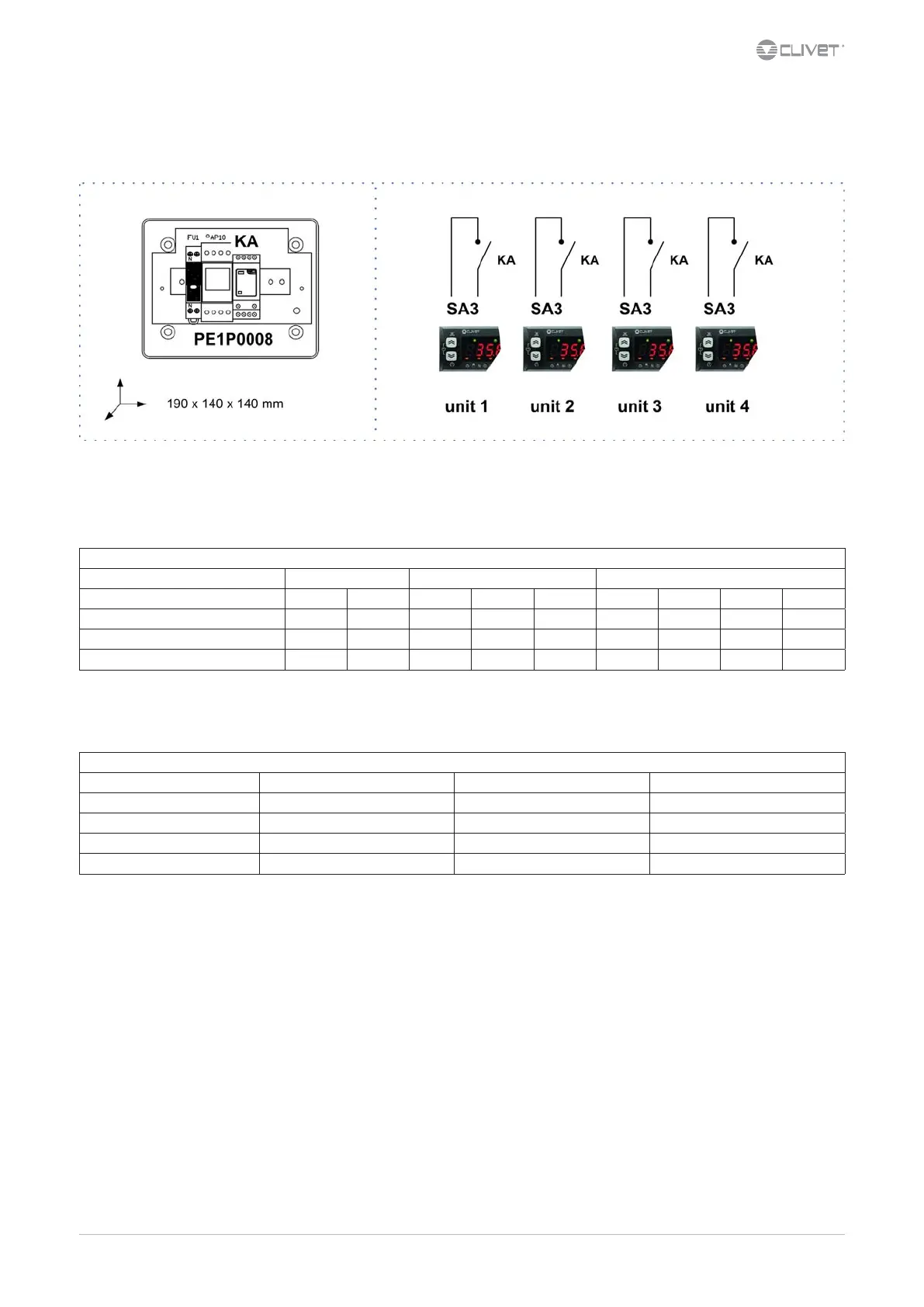

Connect PE1P0008 with SA3 unit 1, SA3 units 2, etc..
enable SA3 on unit 1, unit 2, etc.. (main menu Par CL CL45 = 22)
Set Tr15 on unit 1, unit 2, etc.. (main menu Par Tr Tr15)
example of Summer set point
2 units 3 units 4 units
unit 1 unit 2 unit 1 unit 2 unit 3 unit 1 unit 2 unit 3 unit 4
Summer set point (SPCool) 7 7,5 7 7,5 8 7 7,5 8 8,5
Tr15 0,5 -0,5 1 -0,5 -0,5 1,5 0,5 -0,5 -1,5
2° Summer set point (2°SPCool) 7,57 8 77,58,587,57
SCHEDULING EXAMPLE
monday: KA = OFF Enabled set summer, tuesday KA = ON 2° Enabled set summer, wednesday KA = OFF Enabled set summer
example summer scheduling
Monday Tuesday Wednesday
unit 1 7 (SPCool) 8,5 (2°SPCool) 7 (SPCool)
unit 2 7,5 (SPCool) 8 (2°SPCool) 7,5 (SPCool)
unit 3 8 (SPCool) 7,5 (2°SPCool) 8 (SPCool)
unit 4 8,5 (SPCool) 7 (2°SPCool) 8,5 (SPCool)
