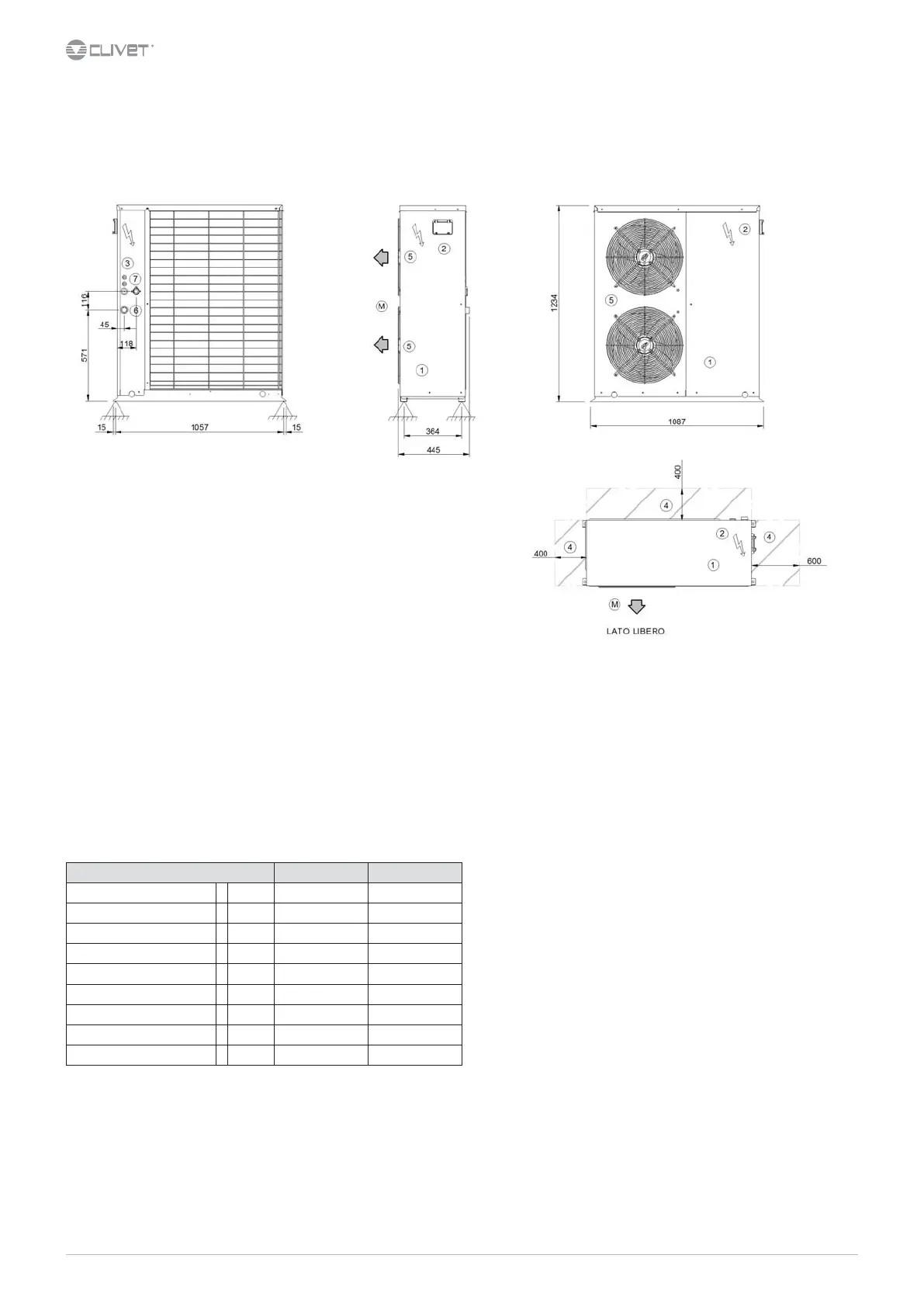

Dimensional drawings - PREMIUM Version
ELFOEnergy Extended Inverter 51-71
1. Compressor compartment
2. Electrical panel
3. Power input
4. Functional spaces
5. Electric fan (Supply)
6. internal exchanger water inlet (GAS F 1”)
7. internal exchanger water outlet (GAS F 1”)
(M) Air supply
Size 51 71
Length mm 1087 1087
Depth mm 445 445
Height mm 1234 1234
W1 kg 51 53
W2 kg 32 33
W3 kg 53 55
W4 kg 34 34
Operating weight kg 170 175
Shipping weight kg 172 177
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
DABQ951 REV00
24/11/2014
