CLIVET WSAT-XEE Series Installation And Use Manual

M0G140F7-01 06/11/07 pag 19

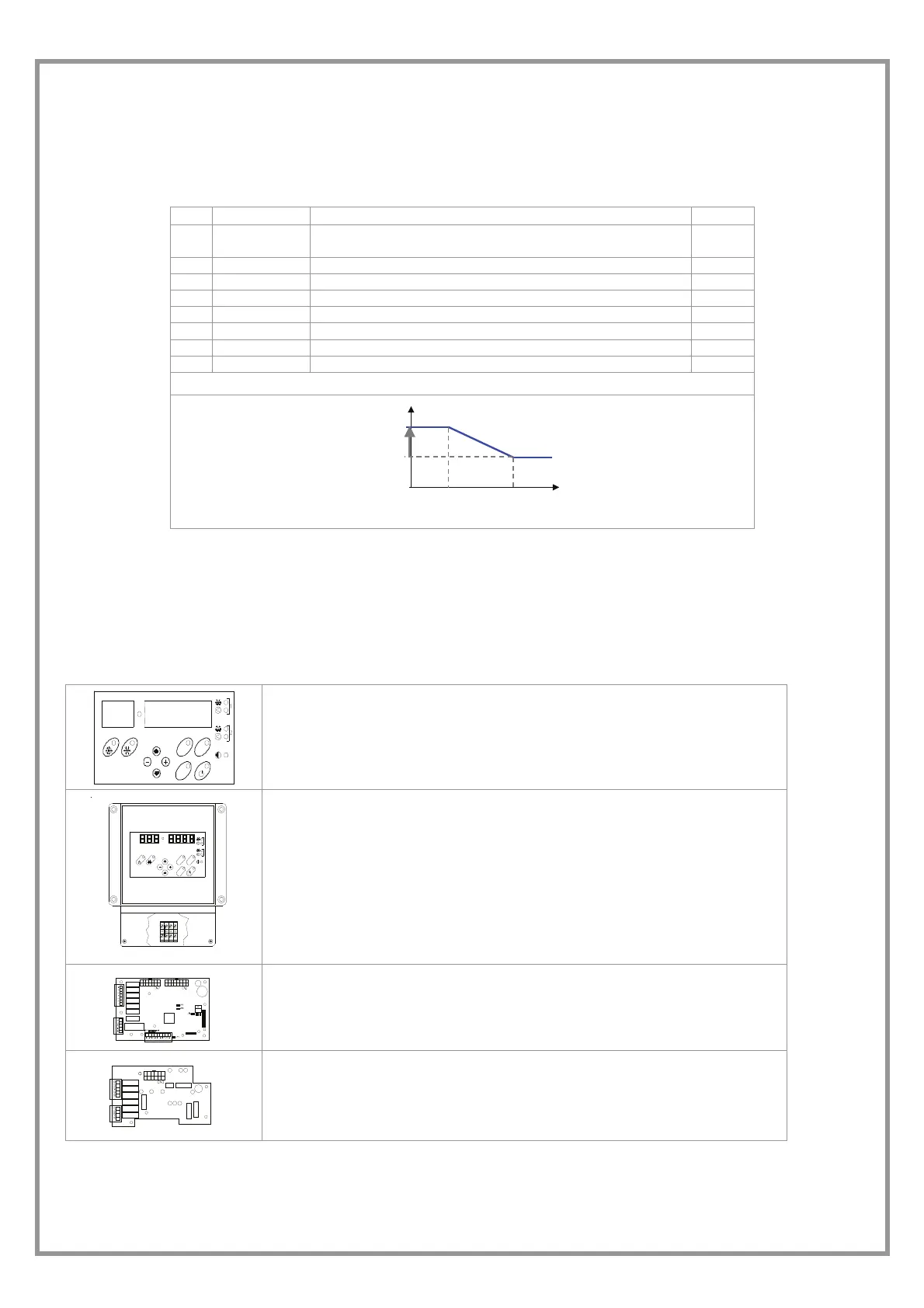

SET POINT COMPENSATION ON THE TEMPERATURE OR EXTERNAL ENTHALPY
Optimises unit energy efficiency by automatically adjusting the set-point according to enthalpy or the outside temperature.
Requires the external humidity probe or the outside temperature probe, which are optional for certain types of units and
must be installed by the customer and enabled by parameters 152=1 and 156=1.
par description
meaning
value
9 CompExt
External temp. comp. enabling 0=No 1=Cool 2=Heat
3=Always
0
10 CextMaxC Ext. Temp. max. summer correction 15
11 CextMinC Ext. Temp. min. summer correction 30
14 MaxCExtC Summer correction max. value 8
16 HExtMinC Ext. enthalpy min. correction 10,5
17 HExtMaxC Ext. enthalpy max. correction 13,5
152 TextEn EXT. Air probe presence 1=YES, 0=NO
156 URProbeExt Enables external UR% probe. 1=YES, 0=NO
SET POINT CURVE IN COOLING
T EXT
P 11
P 10
COMP.
MAX
= P14
COMP.=0
SET POINT
P 17
P 16
SYSTEM COMPOSITION
The system is composed of the following modules:
Some are optional that could be not installed.
Some are supplied in packages separate from the unit: check the shipping document descriptions.
AL
AR
M
STAT
U
S
SET
LOCAL KEYPAD
code C5110799
The interface terminal enables to control every machine function, to program the
different adjustment parameters and possibly to display the unit statuses and
alarms.
LN9192
S
T
A
T
U
S
S
E
T
A
L
A
R
M
2
1
REMOTE KEYPAD
OPTIONAL - Code PE2N0001
The interface terminal enables to control every machine function, to program the
different adjustment parameters and possibly to display the unit statuses and
alarms.
It remotely repeats all functions available on the machine keyboard
• Max. length 100 metres
• POWER SUPPLY 230/1/50
• N. of signal conductors 2 + shield
• MIN. SECTION 0.34 MM2
MAIN ADJUSTMENT MODULE
C5110776
It controls unit (inlets, outlets, configuration parameters)
EXPANSION PLUG-IN MODULE
code C5110767
It is connected to the main module by a coupling comb.
This may be fitted on the unit depending on the unit type and the accessories that
are installed..
