CLIVET WSAT-XEE Series - Page 28

M0G140F7-01 06/11/07 pag 28

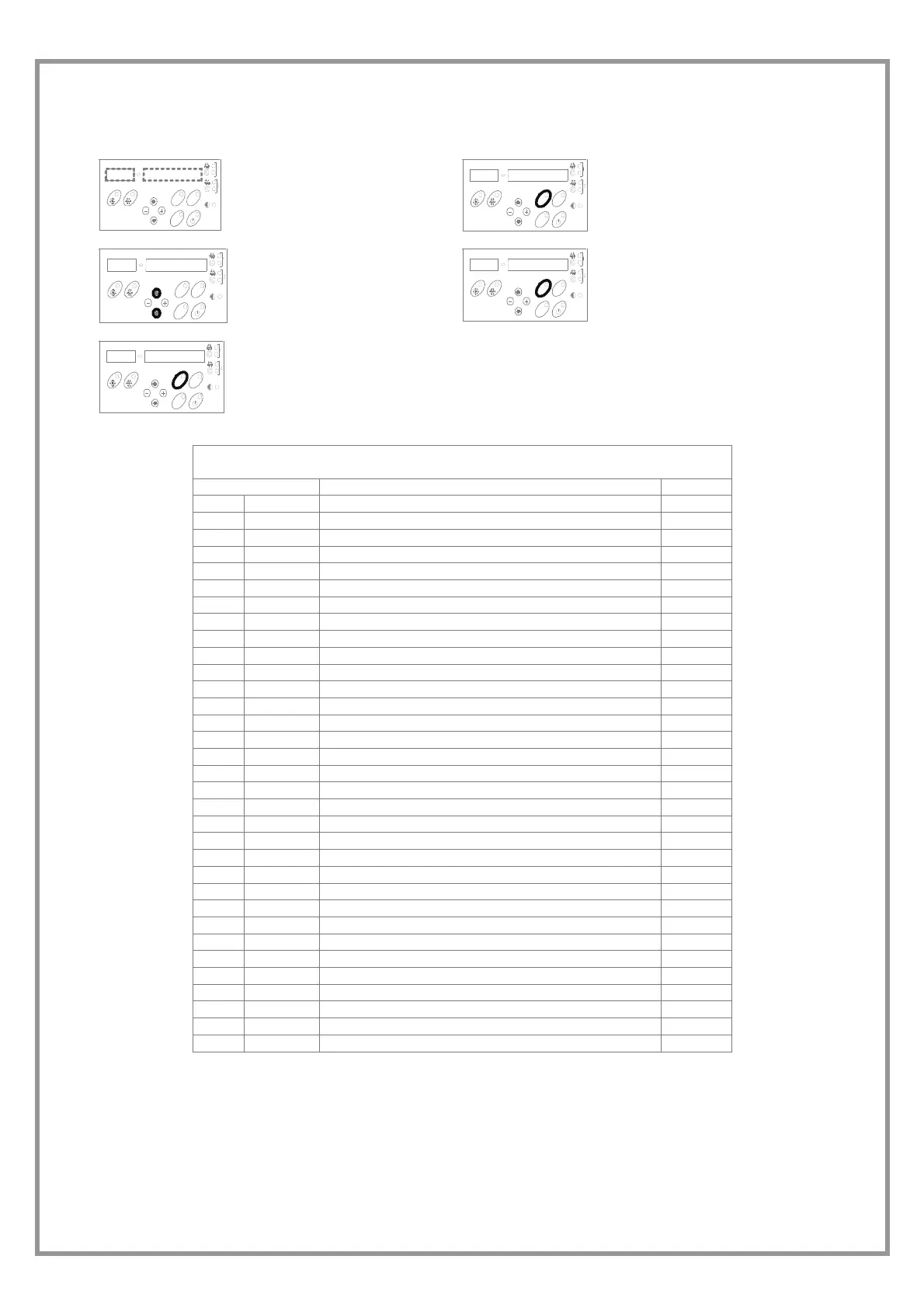

ALARM VISUALIZATION
1
AL
AR
M
STATUS
SET
E 11 2
flashing
Alarm code
Alarm unit hours
2
AL
A
R
M
S
TA
TUS
SET
opened alarm log
short pressure
ALARM
3
A
L
A
RM
S
T
A
TUS
S
ET
The most recent alarm is
visualized
Use the arrow keys to
visualize other alarms
4
AL
A
R
M
S
TA
TUS
SET
To esc
Short pressure
ALARM
5
AL
A
R
M
S
TA
TUS
SET
To RESET
LONG pressure
ALARM
According to the unit configuration and to the current options, some status can not be
used.
INDEX ALARM RESET
E 1
Faulty or disconnected water return probe Auto.
E 2
Faulty or disconnected water supply probe 1 Auto.
E 3
Faulty or disconnected water supply probe 2 Auto.
E 4
Faulty or disconnected coil probe 1 Auto.
E 5
Faulty or disconnected coil probe 2 Auto.
E 6
Faulty or disconnected external probe Auto.
E 7
Faulty or disconnected pressure transducer 1 Auto.
E 8
Faulty or disconnected pressure transducer 2 Auto.
S 9
Water Reset return in short circuit or out of range Auto.
E 10
Faulty or disconnected external RH% probe Auto.
E 11
High pressure 1 MANUAL
E 12
Low pressure 1 Auto.
E 13
Condensing fan and/or compressor thermal 1 switch MANUAL
E 14
High pressure 2 MANUAL
E 15
Low pressure 2 Auto.
E 16
Condensing fan and/or compressor thermal 2 switch MANUAL
E 17
Pump flow Auto.
E 18
System charged with water MANUAL
E 19
Phase monitor Auto.
E 20
Antifreeze alarm MANUAL
S 21
Antifreeze PREAlarm Auto.
S 22
High pressure PreAlarm 1 Auto.
S 23
High pressure PreAlarm 2 Auto.
S 24
Pump change Auto.
E 25
C1 flow alarm Auto.
E 26
C2 flow alarm Auto.
E 27
C1 low temperarue alarm Auto.
E 28
C2 low temperarue alarm Auto.
E 33
Condenser frost alarm MANUAL
E 34
Evaporator input temp. alarm Auto.
E 35
Incongruent DeltaT alarm MANUAL
S/E 36
BP1 Low pressure pre-alarm C1 Auto.
S/E 37
BP1 Low pressure pre-alarm C2 Auto.
S = anomalous situation signalisation that doesn’t compromise the unit functionality
E = ALARM, situation that compromises the unit functionality
