9 - TECHNICAL INFORMATION

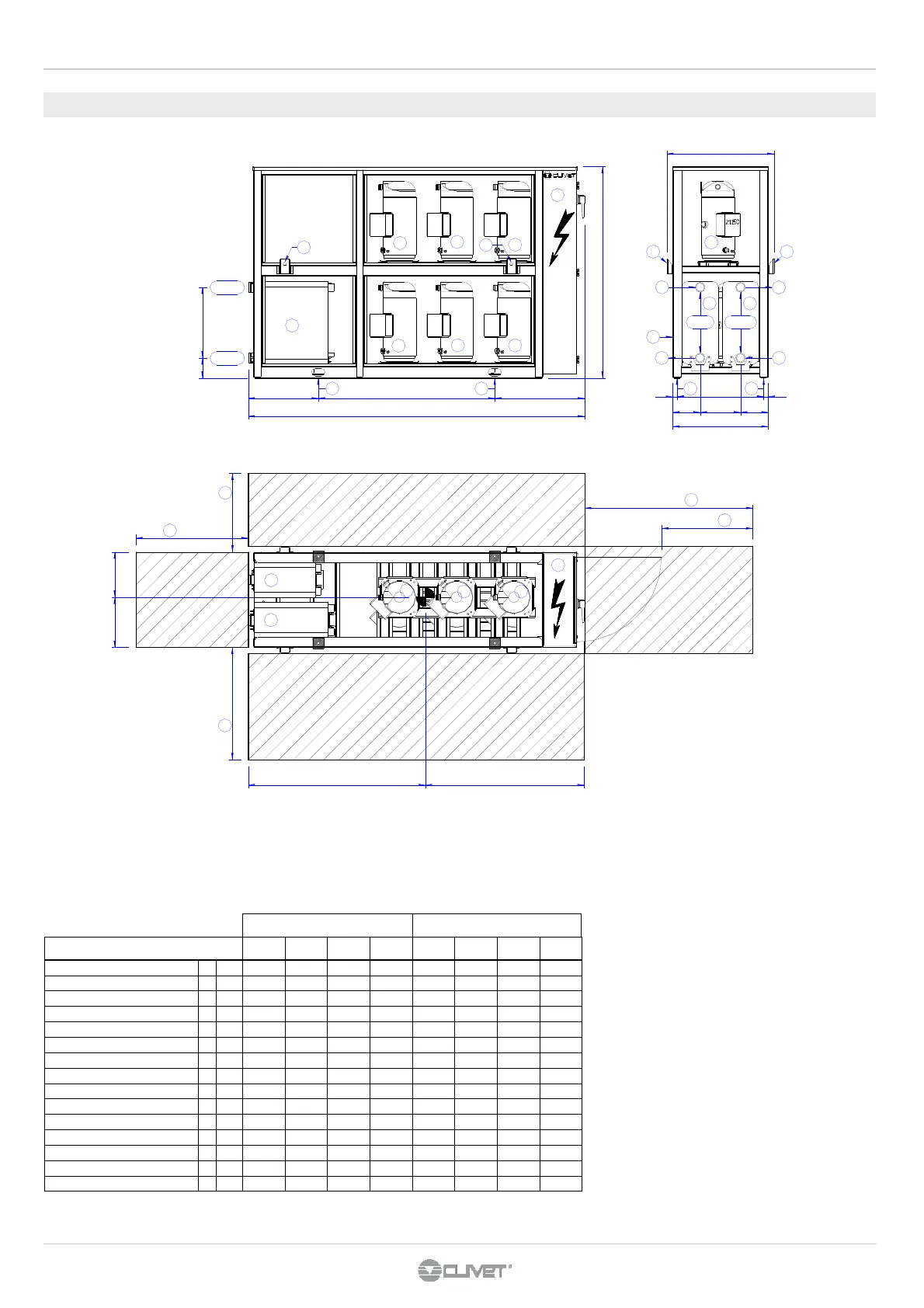

DIMENSIONS: WSH-XSC 135E-150F-165F-180F
1
1
1
1
3
9
9
8 8
1
5 6
10
11
W1
W3
W4
W2
10
12
13
15
13
14
9 9
1
2
3
1
5 - 6
4
2
OD
4 - 7 7
3
OD1
8 8
1
1
1
1886
39 772 39
850
954
1000
1500
800
M N
PO
204 568
690 1573 799
3062
245 360 245
700
1000
(1) COMPRESSOR
(2) INTERNAL EXCHANGER (EVAPORATOR)
(3) EXTERNAL EXCHANGER (CONDENSER)
(4) INTERNAL EXCHANGER WATER INLET
(5) INTERNAL EXCHANGER WATER OUTLET
(6) EXTERNAL EXCHANGER WATER INLET
(7) EXTERNAL EXCHANGER WATER OUTLET
(8) HOLE TO HANG UNIT
(9) LIFTING BRACKETS
(10) ELECTRICAL PANEL
(11) POWER INPUT
(12) MINIMUM DIMENSION ON THE ELECTRICAL SWITCHBOARD SIDE.
(13) MINIMUM DIMENSION FOR A SAFE PASSAGE.
(14) MINIMUM DIMENSION FOR MAINTENANCE.
(15) MINIMUM DIMENSION FOR WATER CONNECTIONS.
Particular accessories, executions or versions can bring about a great variation of the mass represented here. Please contact our Technical Department.
ST EN
Size
135E 150F 165F 180F 135E 150F 165F 180F
M mm 1509 1464 1470 1461 1493 1459 1459 1457
N
mm 1553 1598 1592 1601 1569 1603 1603 1605
O
mm 388 400 401 400 390 403 403 403
P
mm 462 450 449 450 460 447 447 447
OD mm 89 89 89 89 89 89 89 89
OD1 mm 89 89 89 89 89 89 89 89
Length mm 3062 3062 3062 3062 3062 3062 3062 3062
Depth mm 850 850 850 850 850 850 850 850
Height mm 1886 1886 1886 1886 1886 1886 1886 1886
W1 kg 398 496 523 527 434 536 560 567
W2 kg 511 567 607 598 534 605 632 636
W3 kg 483 564 592 600 520 601 628 635
W4 kg 620 645 687 681 640 678 708 713
Operating weight kg 2012 2272 2409 2406 2128 2419 2528 2552
Shipping weight kg 1935 2190 2325 2318 2051 2337 2444 2464
