38
9 - TECHNICAL INFORMATION
ST EN
1
1
1
1
3
8
8
9
9
8 8
1
2
5
4
6
7
10
11
W1
W3
W4
W2
OD
OD1
3
11
10
12
13
15
13
14
9 9
1
1
5 - 6
16
17
18
19
19
18
OD2
OD3
4 - 7
1886
39 772 39
245 360 245
850
954
1000
1000
700
1500
800
M N
PO
483 1317 747
2547
194 369
1087 250 146 250
295 76
109
76 295
* 2734
(1) COMPRESSOR
(2) INTERNAL EXCHANGER (EVAPORATOR)
(3) EXTERNAL EXCHANGER (CONDENSER)
(4) INTERNAL EXCHANGER WATER INLET
(5) INTERNAL EXCHANGER WATER OUTLET
(6) EXTERNAL EXCHANGER WATER INLET
(7) EXTERNAL EXCHANGER WATER OUTLET
(8) HOLE TO HANG UNIT
(9) LIFTING BRACKETS
(10) ELECTRICAL PANEL
(11) POWER INPUT
(12) MINIMUM DIMENSION ON THE ELECTRICAL SWITCHBOARD SIDE.
(13) MINIMUM DIMENSION FOR A SAFE PASSAGE.
(14) MINIMUM DIMENSION FOR MAINTENANCE.
(15) MINIMUM DIMENSION FOR WATER CONNECTIONS.
(16) HYDROPACK UTILITY SIDE
(17) HYDROPACK SOURCE SIDE
(18) PUMPS SUCTION
(19) PUMPS SUPPLY
(*) UNIT LENGTH WITH ACCESSORIES CEHU / CEHS "EXCHANGER - HYDRONIC UNIT
CONNECTION SET"
Particular accessories, executions or versions can bring about a great variation of the mass represented here. Please contact our Technical Department.
Size
65D 70D 75D 80D 65D 70D 75D 80D
M
mm 1314 1323 1289 1272 1271 1293 1264 1246
N
mm 1233 1224 1258 1275 1276 1254 1283 1301
O
mm 404 398 402 399 404 399 402 400
P
mm 446 452 448 451 446 451 448 450
OD
mm 76 76 76 76 76 76 76 76
OD1
mm 76 76 76 76 76 76 76 76
Length
mm 2547 2547 2547 2547 2547 2547 2547 2547
Depth
mm 850 850 850 850 850 850 850 850
Height
mm 1886 1886 1886 1886 1886 1886 1886 1886
W1
kg 285 289 314 325 330 329 353 366
W2
kg 409 433 434 434 422 454 456 454
W3
kg 316 329 351 369 360 367 389 407
W4
kg 453 493 486 492 460 506 502 504
Operating weight
kg 1462 1544 1584 1621 1572 1655 1699 1731
Shipping weight
kg 1436 1516 1553 1588 1546 1627 1668 1698
OD2
mm 89 89 89 89 89 89 89 89
OD3
mm 89 89 89 89 89 89 89 89

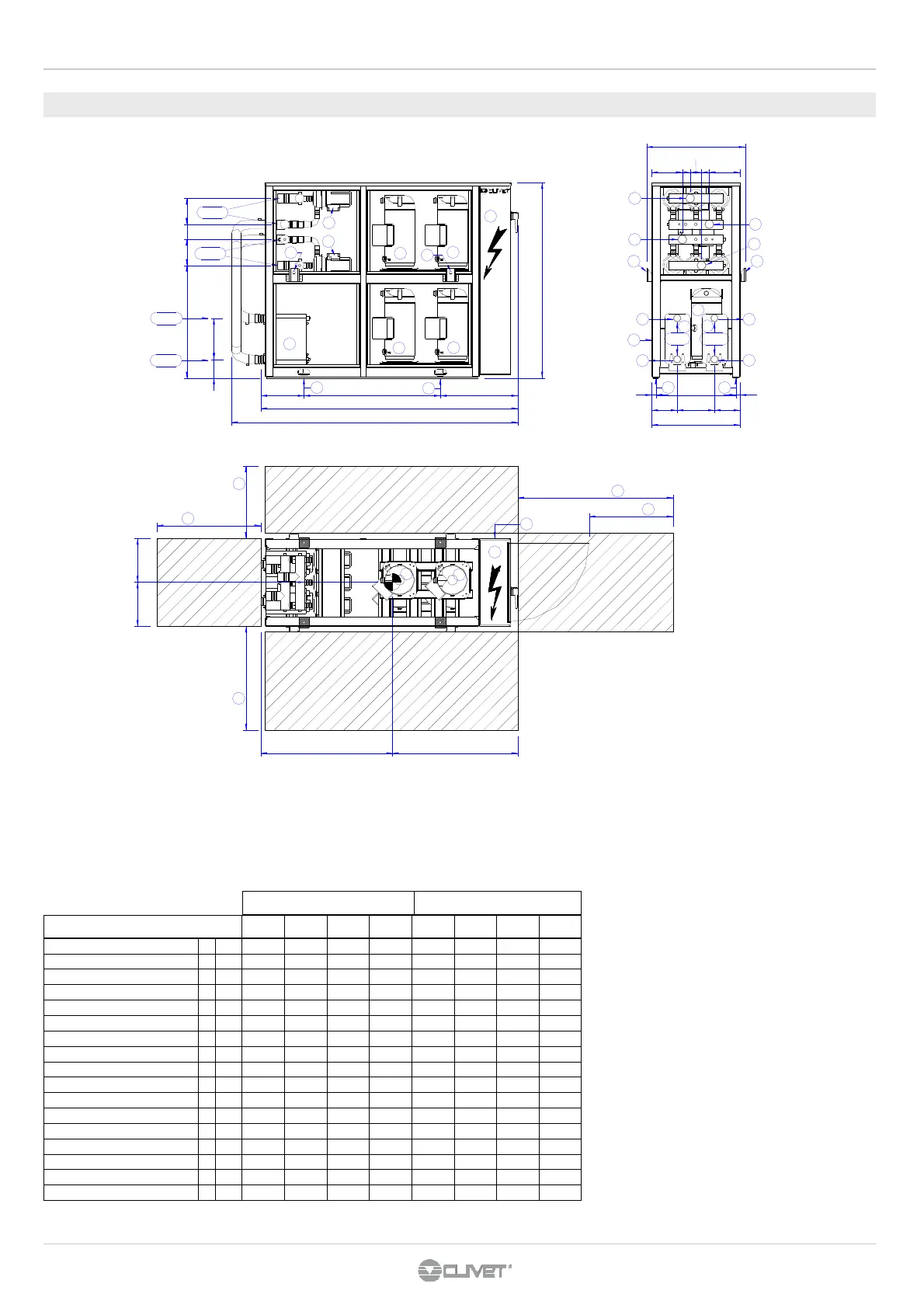

DIMENSIONS: WSH-XSC 65D-70D-75D-80D
