Cloudray DM542S User Manual

DM542S USER MANUAL
www.cloudratmotor.com
2
Item
Cloudray DM 542S
Installation environment
Avoid dust, oil and corrosive environment
Vibration
0.5G（4.9m/s
2
） Max
Operating temperature/humidity
0
℃
~ 45
℃
/ 90% RH or less (no condensation)
Storage and transportation temperature:
-10
℃
~ 70
℃
Cooling
Natural cooling / away from the heat source
Waterproof grade
IP54

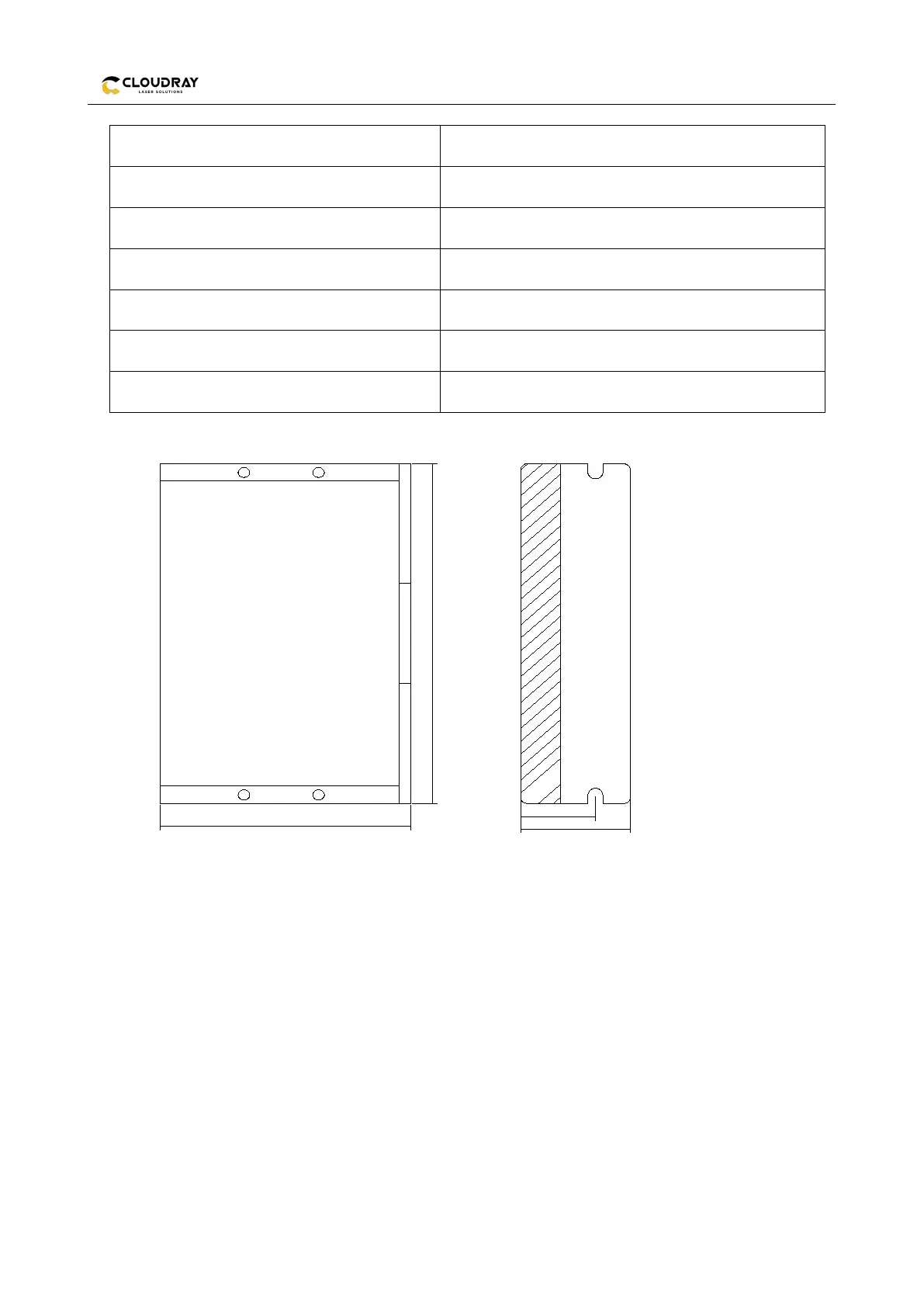

2.2 Drive installation dimensions
75.5
33
22.5
118
2.3 Drive installation requirements
Please install the drive vertically or horizontally, with its front facing forward, top facing upward to facilitate
cooling.
During assembly, avoid drillings and other foreign matters falling inside the drive.
During assembly, please use M3 screw to fix.
When there is vibration source (such as a driller) close to the installation position, please use a vibrating absorber
or a vibration resistant rubber gasket.
When multiple drives are installed in the control cabinet, please pay attention to reserve enough space for
sufficient heat dissipation. If necessary, you can configure cooling fans to ensure good heat dissipation conditions
in the control cabinet.

Cloudray DM542S Specifications

General

Brand	Cloudray
Model	DM542S
Category	DC Drives
Language	English
