Due to continual machine improvements, this user manual only applies to the mixer, which is
included in accordance with the serial number. We guarantee a ten-year period of spare
parts supply, from the date of machine manufacturing.
Electrical installation ensures proper operation of all modules with voltage fluctuations in the
electric supply system 3x220 V 10% and frequency of 60 Hz 2%.
3. Technical description
3.1. Purpose
1.1. Paddle mixer RX-600 is designed for mixing batters in the production of meat or
canned meats, vegetables, fruits, sauces. Stirring stuffing is implemented by two intersecting
bladed stirrers placed at different heights and have a variable direction of rotation. The
mixing process may take place at different shaft speeds in the range of 5 to 48 r/min
controlled manually. It is designed to cooperate with loading pilar (as option).
3.2. Construction
Mixer RX-600 has a compact formed as a self-supporting welded construction. Parts in
contact with stuffing and all exterior surfaces are made of acid-resistant materials All
functional units like drive and electrical installation are located in machine housing and can
be accessed after opening the door.

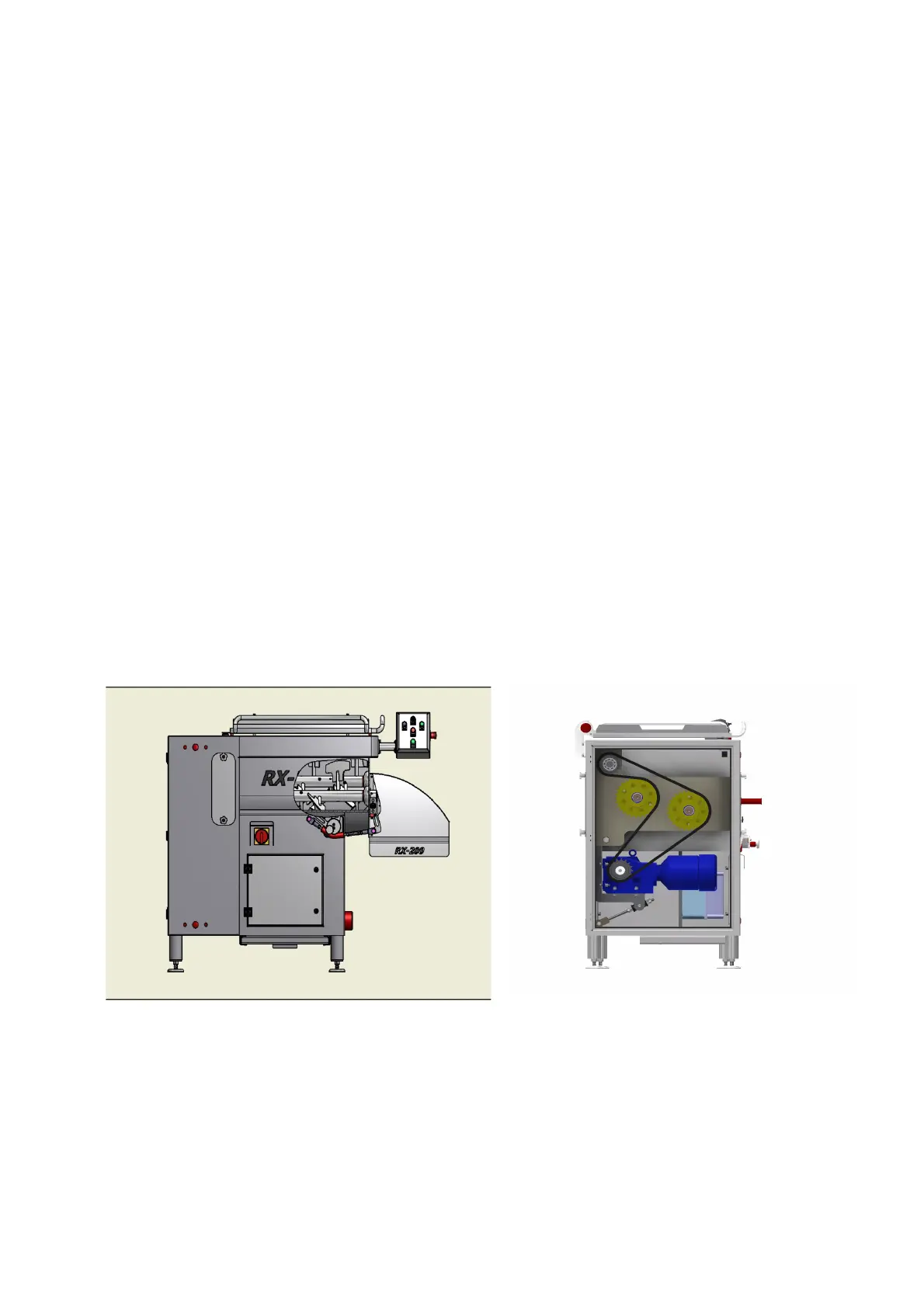

Significant mechanisms, devices and machine parts are shown in figures 1, 2,3 (illustrative
drawings)
Figure no .1. Figure no. 2.
