Matrix Y User's Manual

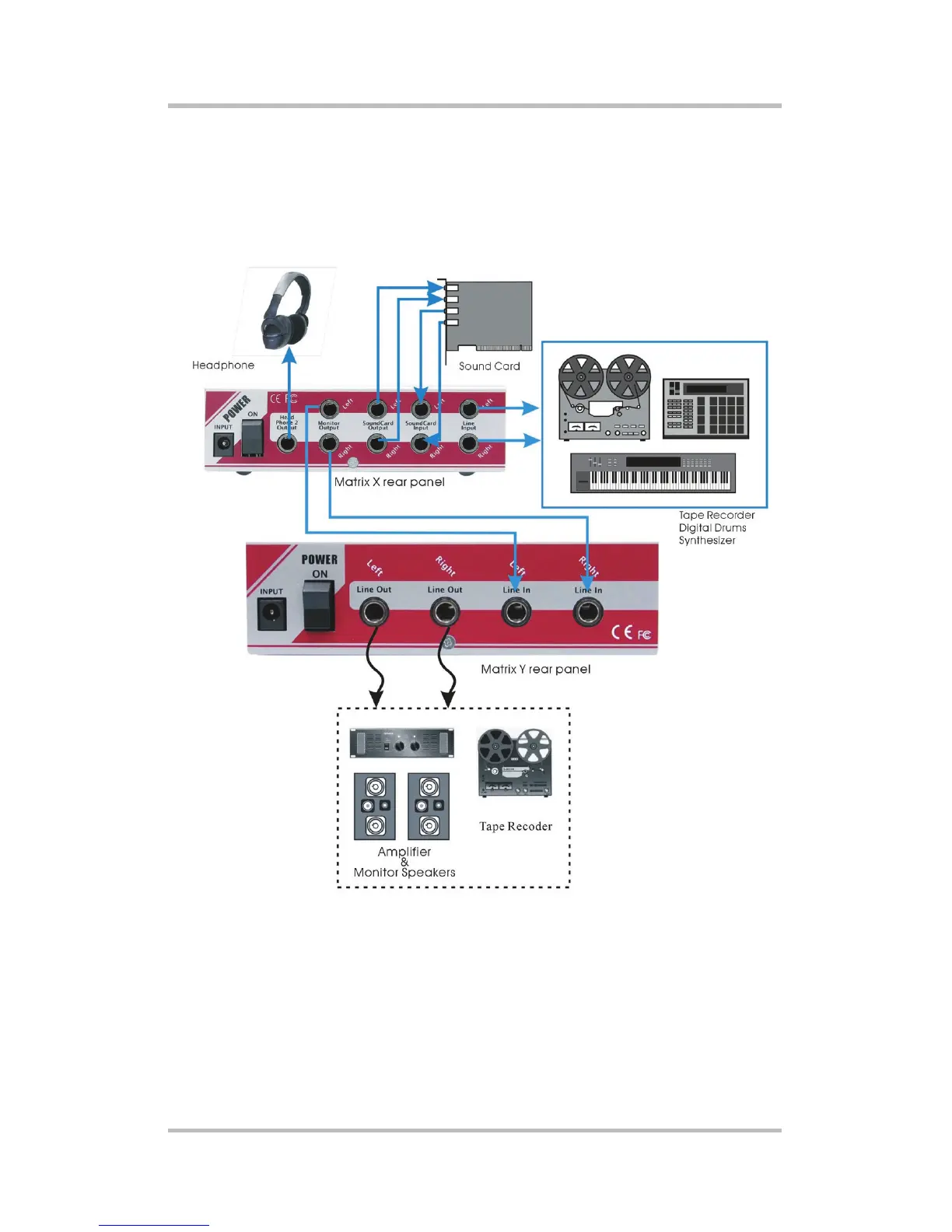

Connecting the Matrix X and Matrix Y

Besides using the Matrix Y as a stand-alone device, you can also connect the

Matrix X and Matrix Y together to expand the monitoring capabilities of the

Matrix X. Please refer to the Matrix X manual and signal  ow diagram.
