Matrix Y User's Manual
2.
Talk Back Mic LED
This LED will light up when the Talk Back Mic is activated.
3.
Talk Back Mic button
Press down this button to activate Talk Back Mic. Press again to release
it and disable Talk Back Mic.
4.
Headphone outputs
Four headphone output jacks.
5.
Power LED
Power LED will light up when Matrix Y is turned on
6.
Volume control knobs
There are four volume control knobs to adjust the corresponding
headphone output

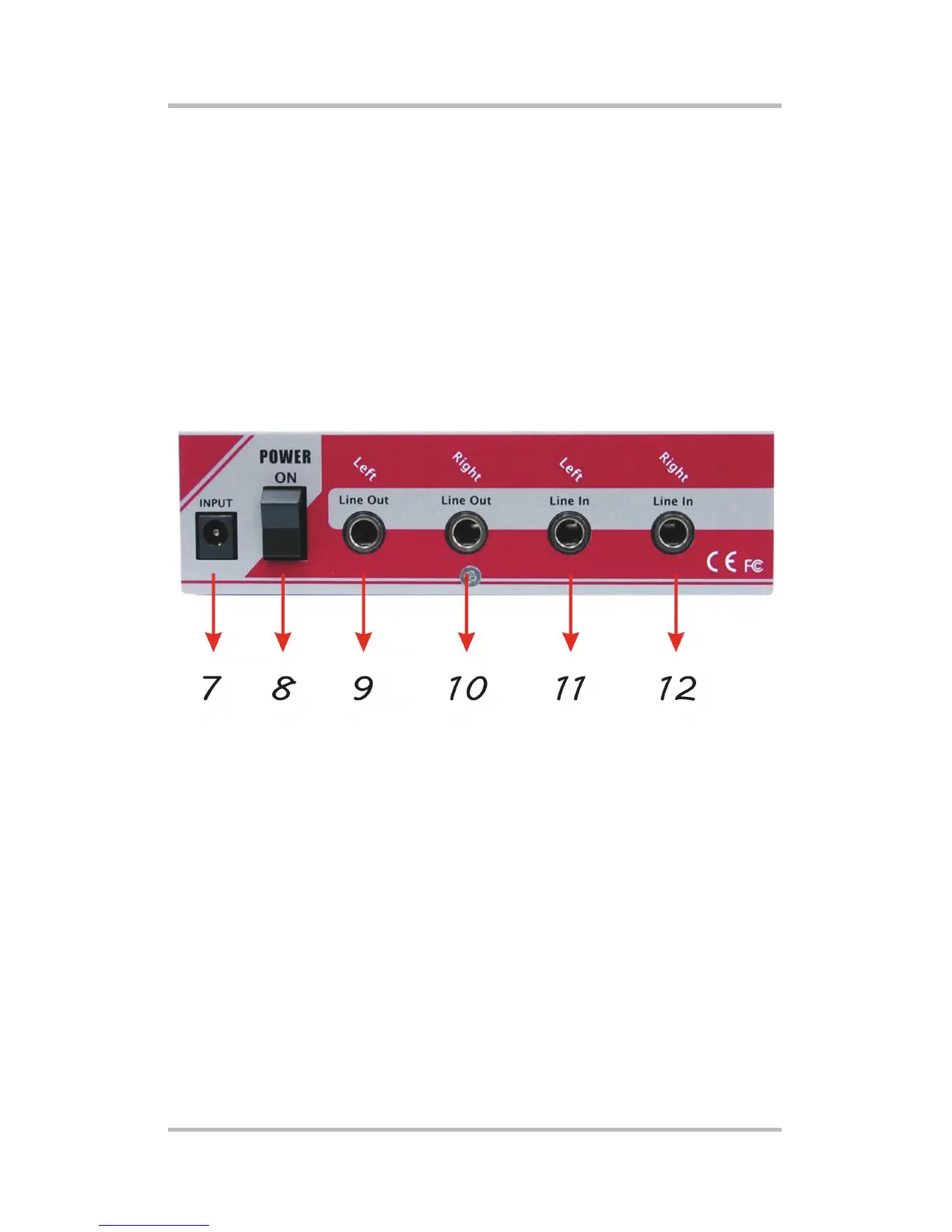

7. Power Input
Plug the attached power adapter (15 VAC 1000mA) here for supplying
power to the Matrix Y.
8.
Power On
Power switch.
9.
Line Out (Left)
Line level signal output, left channel.
10.Line Out (Right)
Line level signal output, right channel.
11.Line In (Left)
Line level signal input, left channel.
12.Line In (Right)
Line level signal input, right channel.
