Connection Examples
There are many different applications for the Matrix Y since it features
balanced inputs and outputs. Below you will  nd some typical applications.
Using the Matrix Y as a stand-alone device.

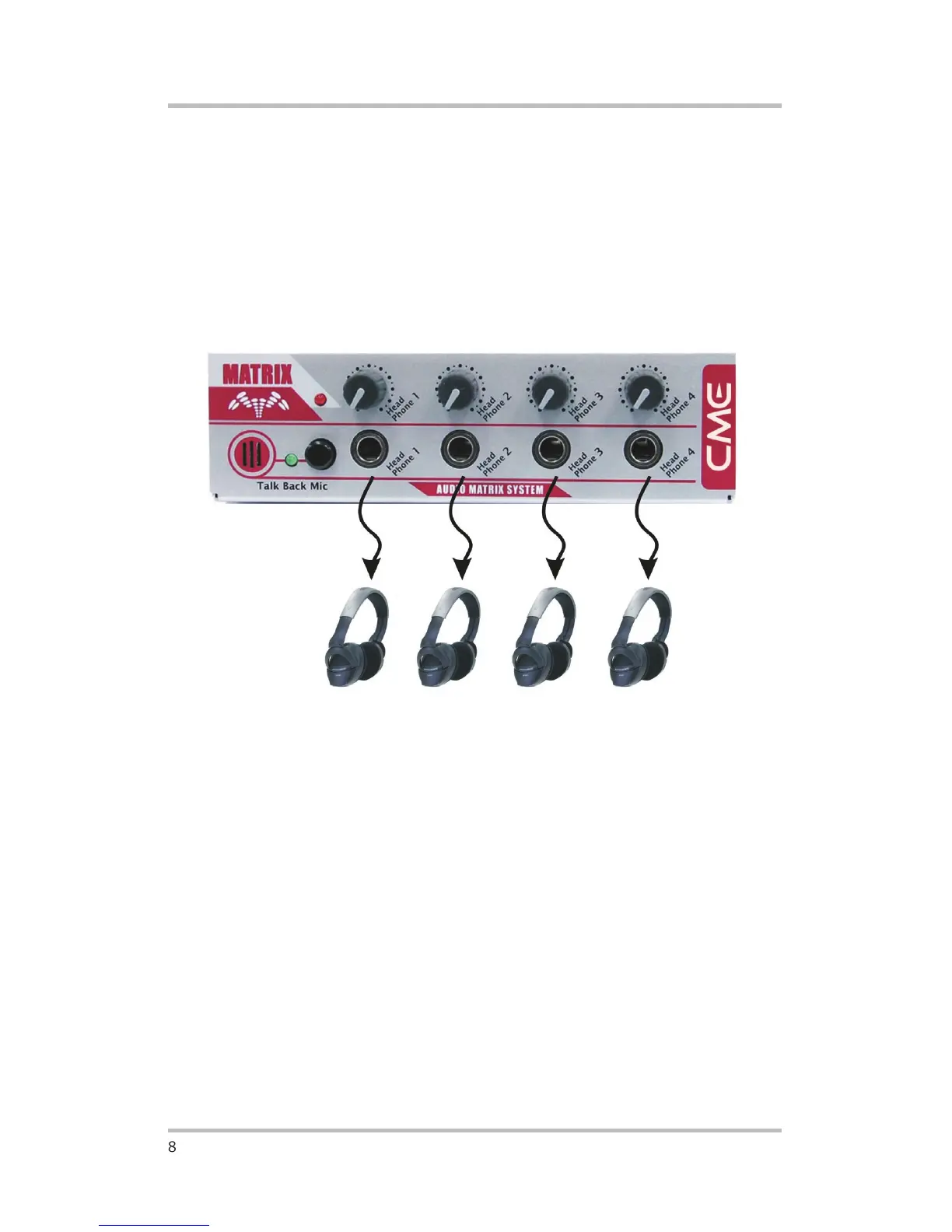

Connection examples of front panel
