4.4 Parts Sections In The U-CTRL Mode

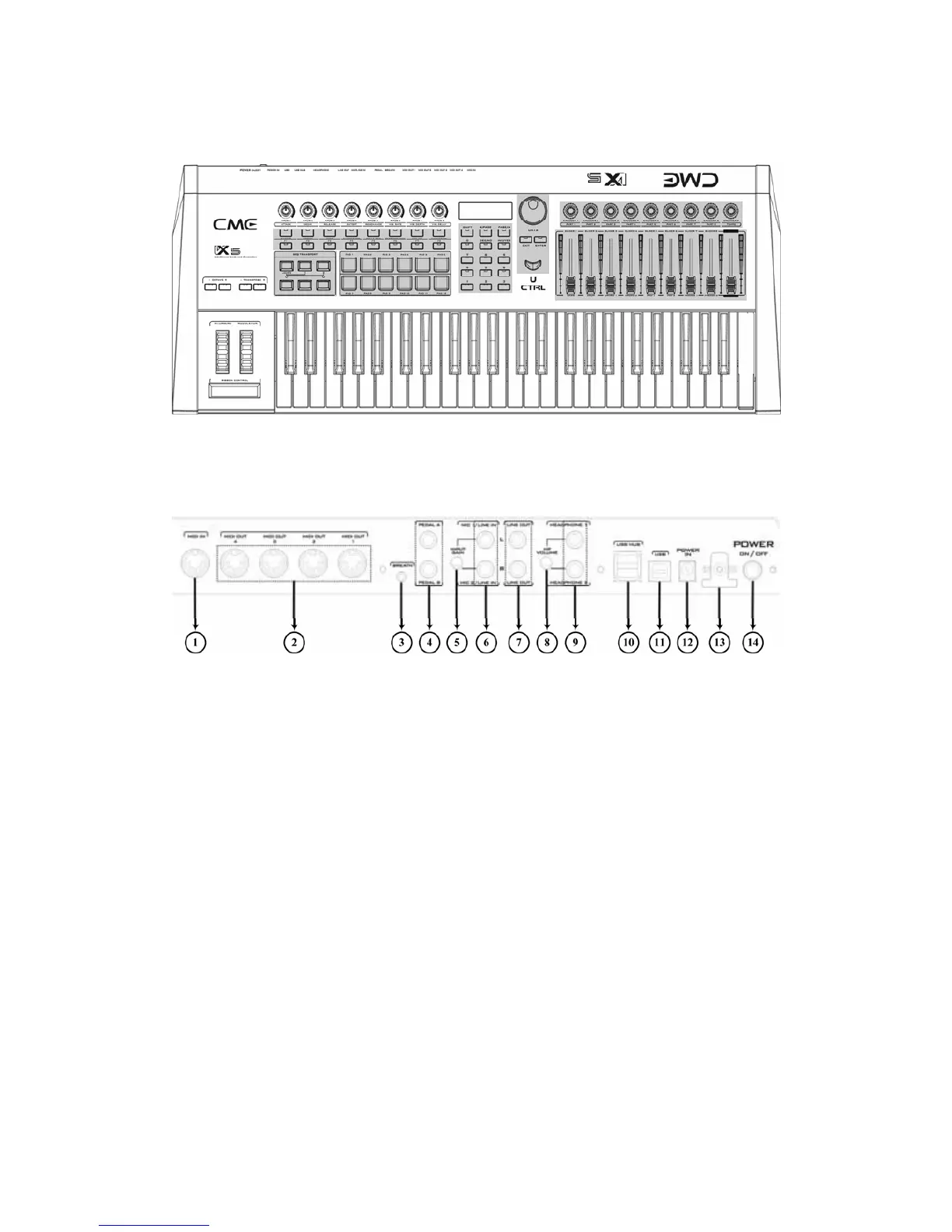

4.5 Rear Panel

1. MIDI IN port ×1.

2. MIDI OUT ports ×4.

3. Breath control (BC) jack: 1/8" TRS ×1, compatible with YAMAHA BC3.

4. Pedal jacks: 1/4" TRS ×2, each one can be used for volume or sustain pedal.

5. Input gain for Mic/Line in.

6. MIC/LINE IN jacks: 1/4" TS ×2.

7. LINE OUT jacks: 1/4" TS ×2.

8. HP VOLUME: Headphone volume.

9. HEADPHONE jacks: 1/4" TRS ×2.

10. USB HUB port: compliance with standard USB 1.1 for USB expansion.

11. USB port: to make computer connection for MIDI/Audio data transfer.

12. POWER IN port: connect the AC adaptor here.

13. POWER ON/OFF switch: press down the switch to turn the instrument on; press

again and release the switch to turn it off.
