CMi TORQ-HUB - Main Screen Overview; CMI 7 Color Display At A Glance

Display Operating Manual
MAIN SCREEN FUNCTIONS

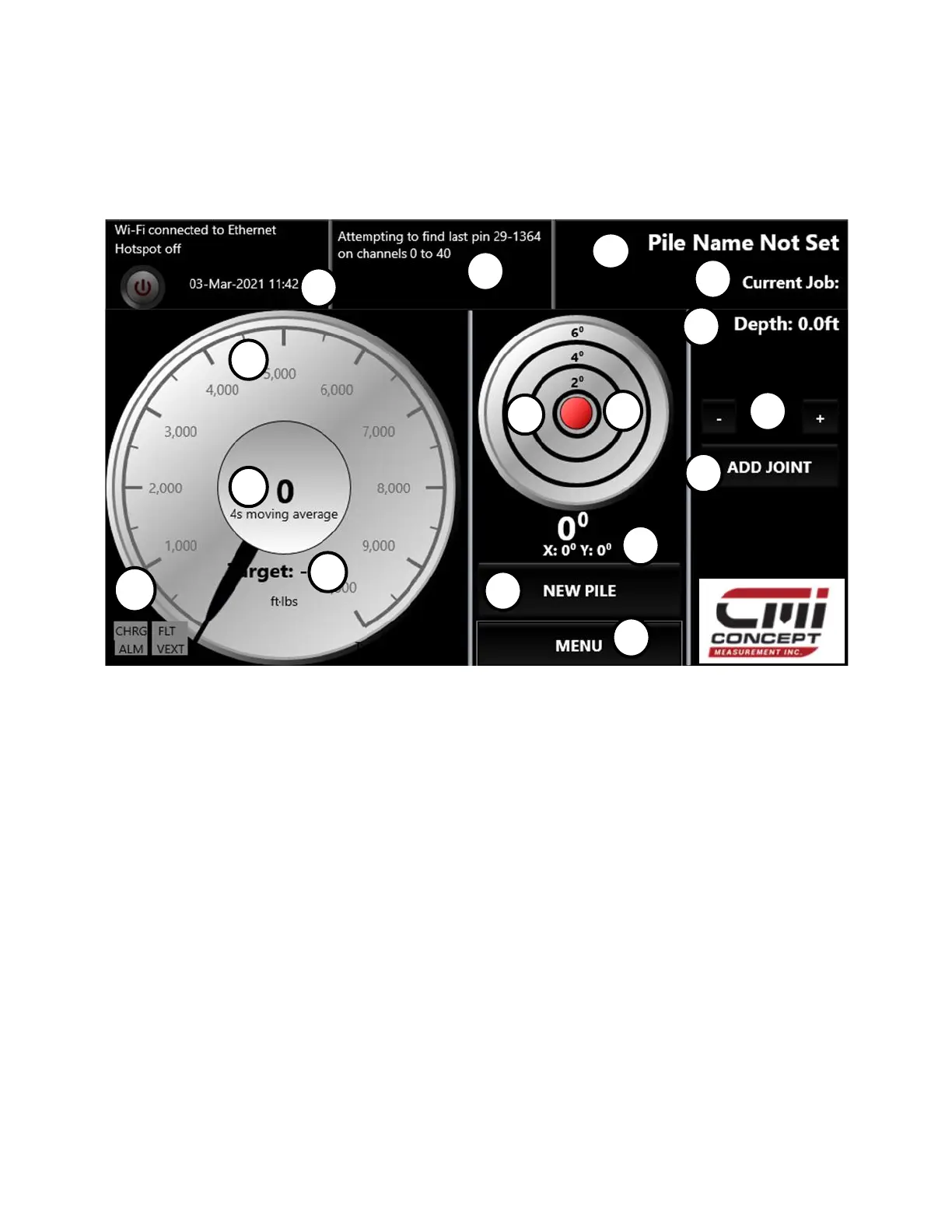

THE CMI 7” COLOR DISPLAY AT A GLANCE
1
2
3
17
5
7
8
9
10
11
12
13
14
15
1. Date
2. Pile Name
3. Dial Indicator Live Torque
4. Change Dial Range or Set Zero Calibration
5. Numeric Indicator Live Torque
6. Target Torque for Indicator
7. Manually Enter Joint length
8. Depth
9. X-Y
10. New Pile
11. Inclinometer
12. Current Job
13. Add Joint
14. Serial Number
15. Pin Orientation
16. Charge Alarm (Coming Soon)
17. Moving Average, (Not Available Yet)
6
16
