CMT2300A
13.4dBm
-100
-80
-60
-40
-20
0
20
431.92 432.42 432.92 433.42 433.92 434.42 434.92 435.42 435.92
Power (dBm)
center 433.92MHz sweep 5s (2000pts )
Res BW 1kHz

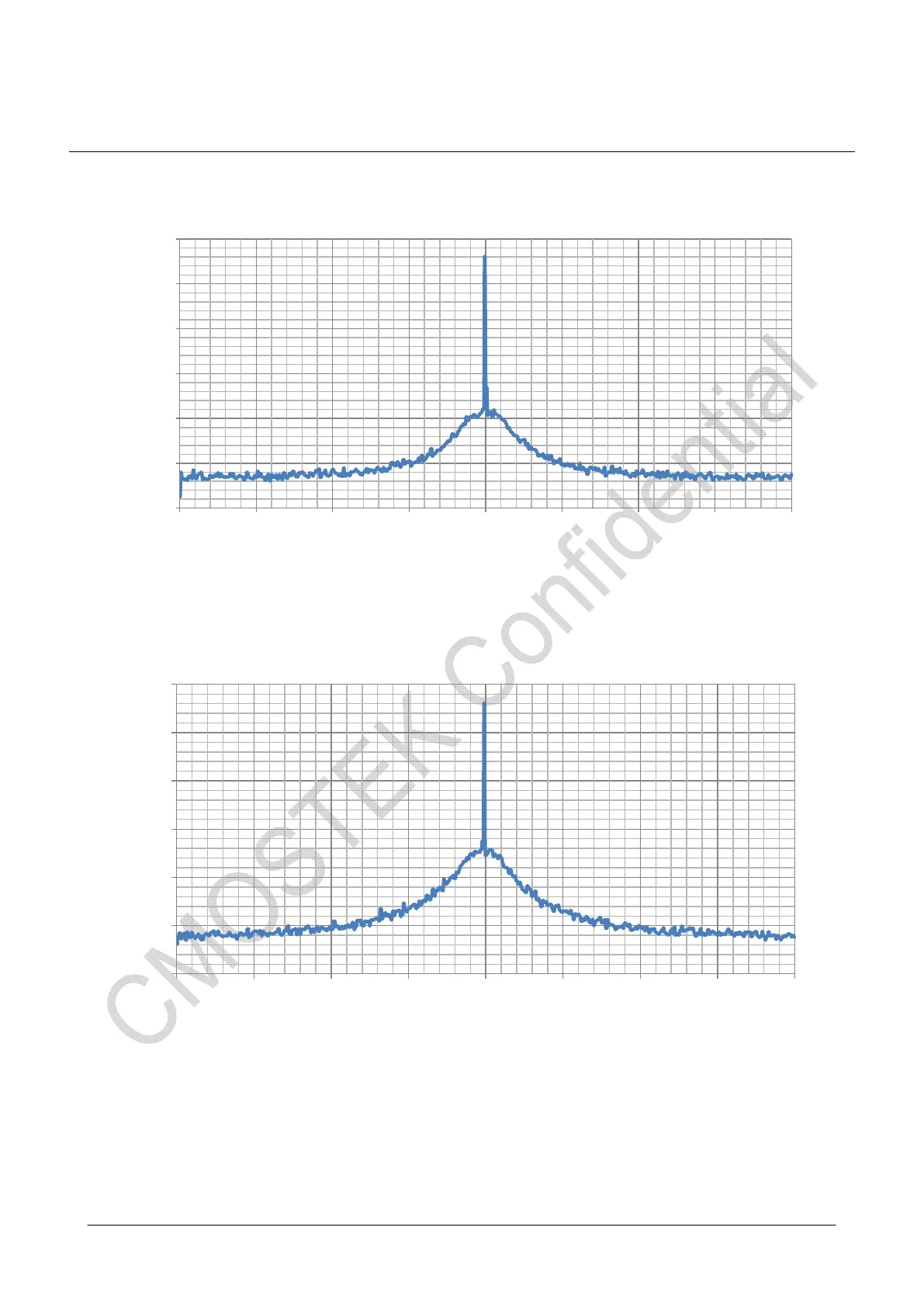

433.92MHz Phase Noise
output 13dBm span=4MHz
att30dB
12.4dBm
-100
-80
-60
-40
-20
0
20
866 866.5 867 867.5 868 868.5 869 869.5 870
Power (dBm)
center 868MHz sweep 5s (2000pts )
Res BW 1kHz
868MHz Phase Noise
output 13dBm span=4MHz
att30dB
