CMT2300A
10. Packaging Information
CMT2300A packaging is QFN16 (3x3). The packaging information is as below.
D2
E2
b
e
L
D
E
A
A1
c
Top View Bottom View
Side View
11
16 16

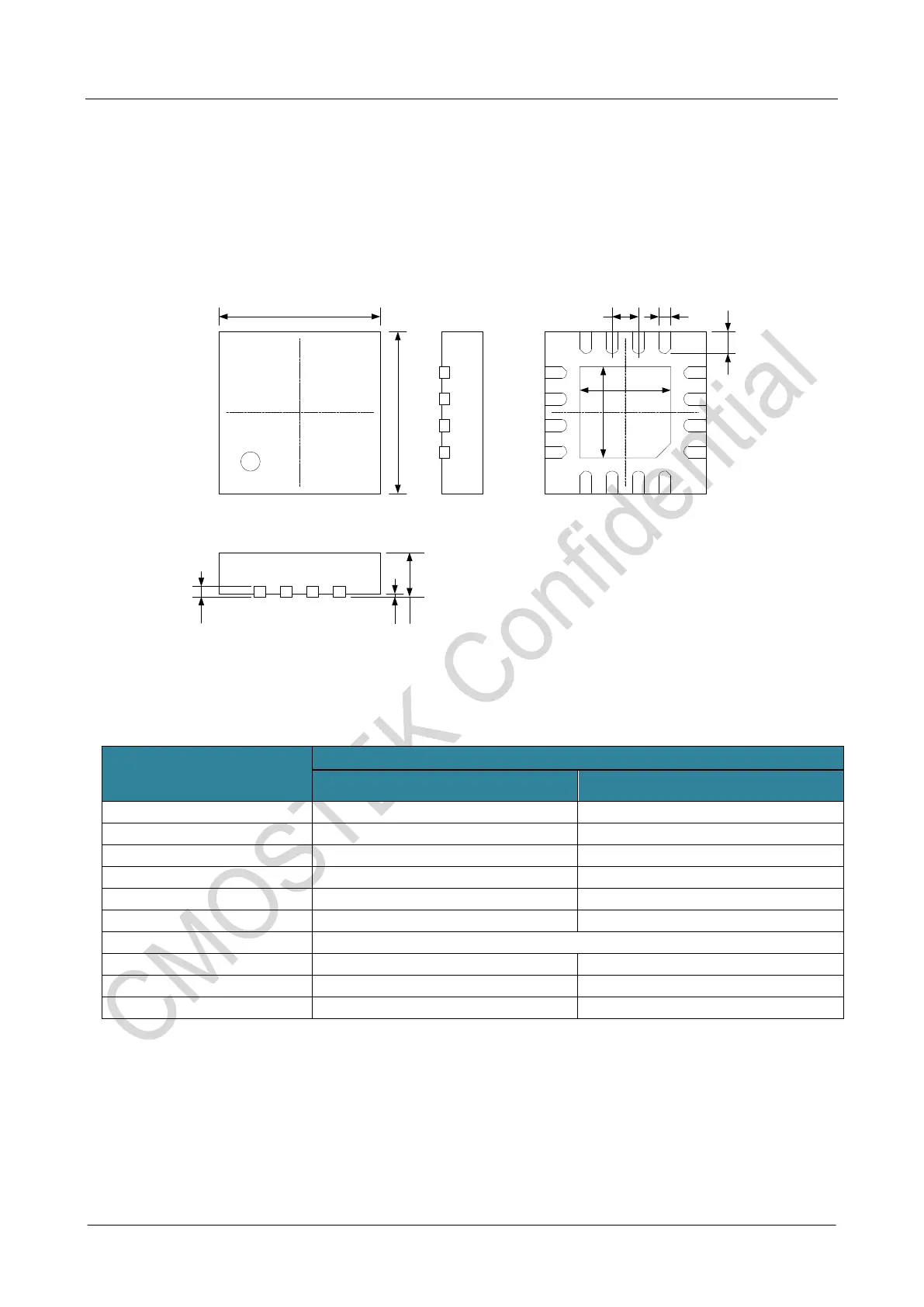

Figure 24. 16-Pin QFN 3x3 packaging
Table 24. 16-Pin QFN 3x3 packaging
Symbol
Size (mm)
Min.
Max.
A
0.7
0.8
A1
—
0.05
b
0.18
0.30
c
0.18
0.25
D
2.90
3.10
D2
1.55
1.75
e
0.50 BSC
E
2.90
3.10
E2
1.55
1.75
L
0.35
0.45
