User’s Manual Page 4
4.0 POWER TERMINALS AND CONFIGURATION

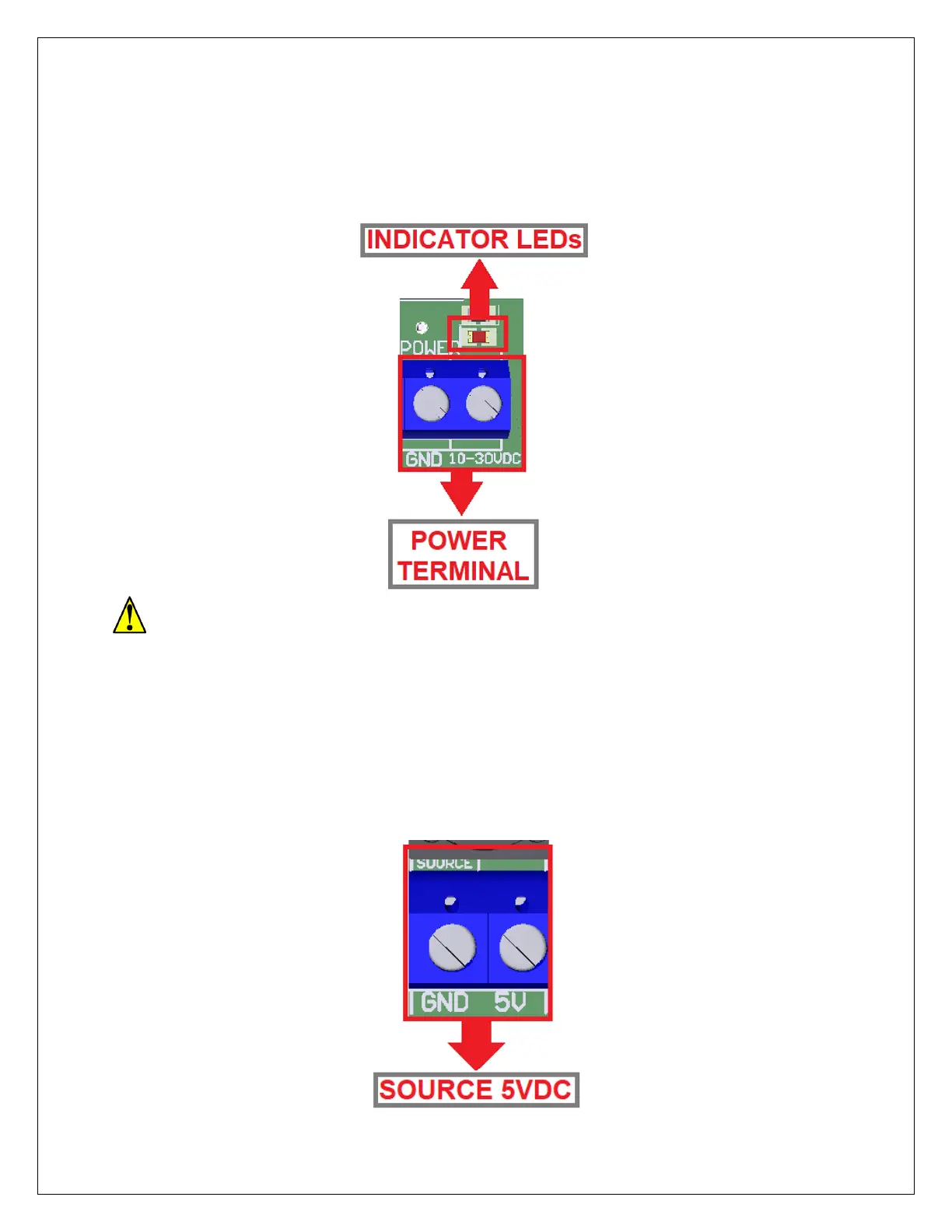

4.1 Power terminal
Regulated +10VDC or +30VDC is required to power this board.
WARNING
Check the polarity and voltage of the external power source and connect the 10VDC to 30VDC
and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage
to the board, and/or the power source
4.2 Source Output 5VDC
To Next Page
