User’s Manual Page 5

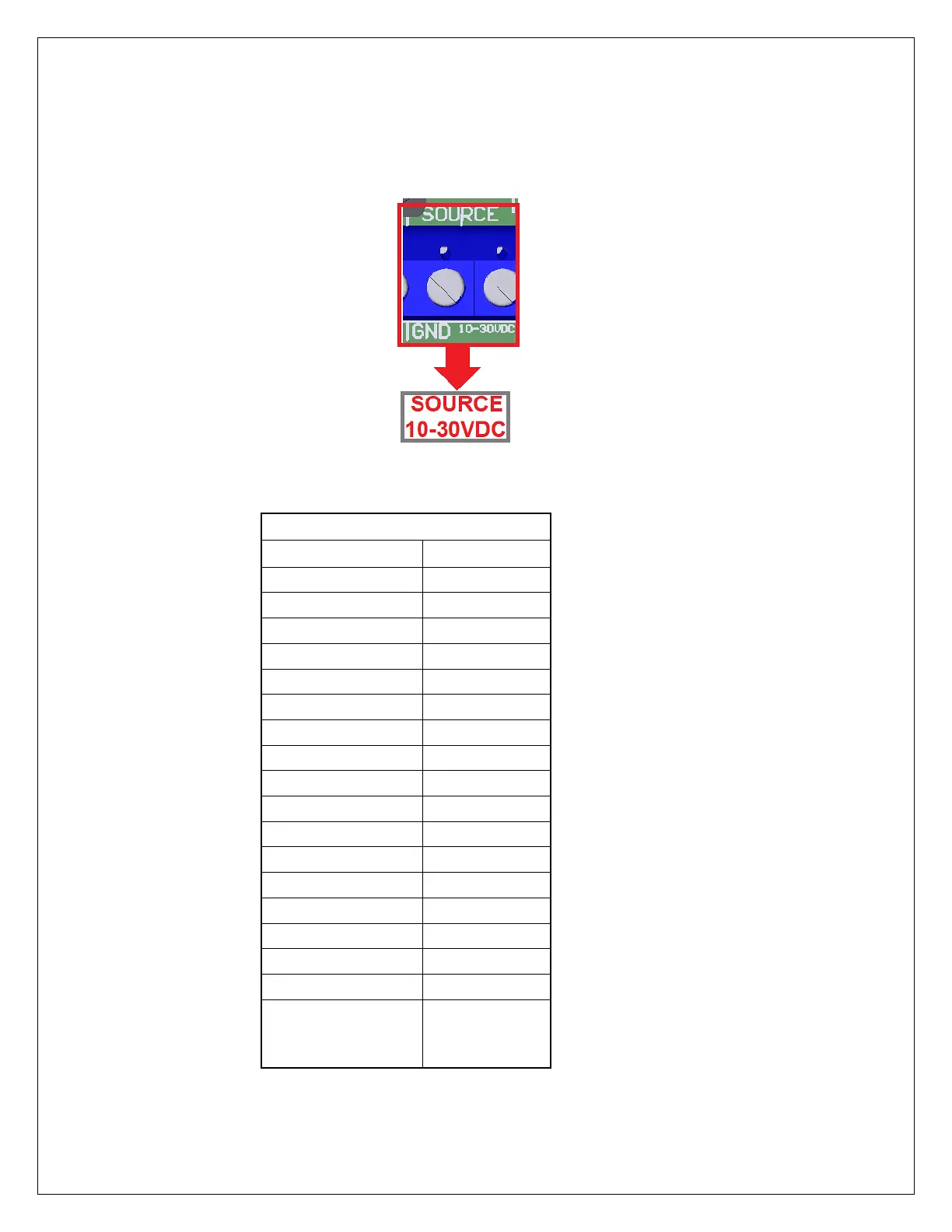

4.3 Source Output 10-30VDC
10-30VDC can be sourced to sensors or other cards requiring it.
5.0 PORT_3 ESS
PORT_3 ESS
Pin
Function
P_1
OUTPUT
P_2
IN/OUT
P_3
IN/OUT
P_4
IN/OUT
P_5
IN/OUT
P_6
IN/OUT
P_7
IN/OUT
P_8
IN/OUT
P_9
IN/OUT
P_10
INPUT
P_11
INPUT
P_12
INPUT
P_13
INPUT
P_14
OUTPUT
P_15
INPUT
P_16
OUTPUT
P_17
OUTPUT
P_18/25
GND
P_26
5V
