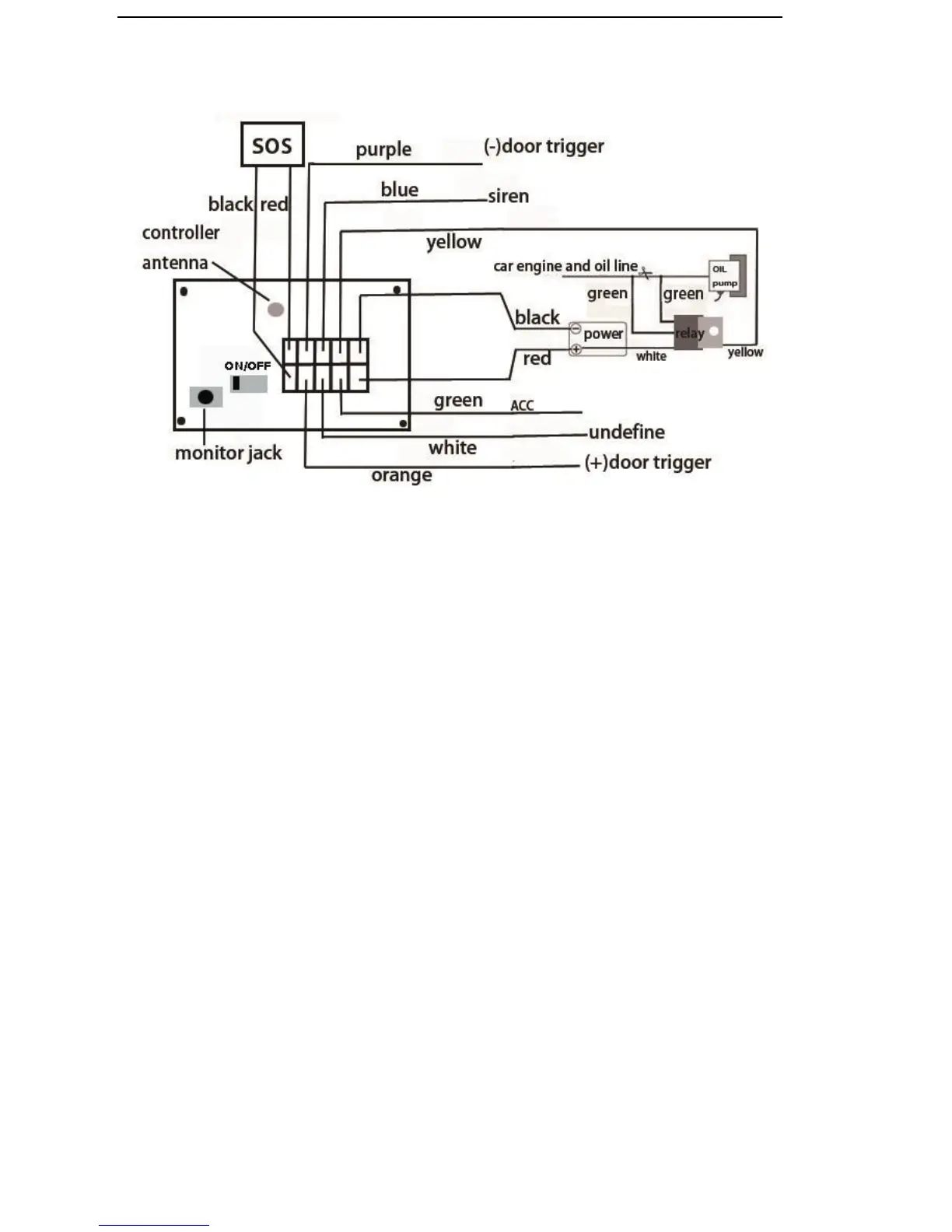

Wiring diagram
5.1.5 Note: The blue wire can be connected to the original car alarm horn;
5.1.6 Know about the type of the door trigger is positive or negative trigger.
Please connect the orange wire to the door control circuit if it is positive, and
connect purple wire if it is negative.
5.1.7 Please install the SOS button on the place driver can touch.
5.1.8 Insert the external monitor Microphone into the monitor jack.
5.1.9 Connected the GPS and GSM antenna to the right jack, and find a
appropriate place and fix the antennas to make sure it receive signals very
well.
5.1.10 Fuel sensor wiring: it need connect optional external fuel sensor.
1) red connects positive +
2) Black connects negative –
3) Blue signal wire connects to device white wire
