P. 3

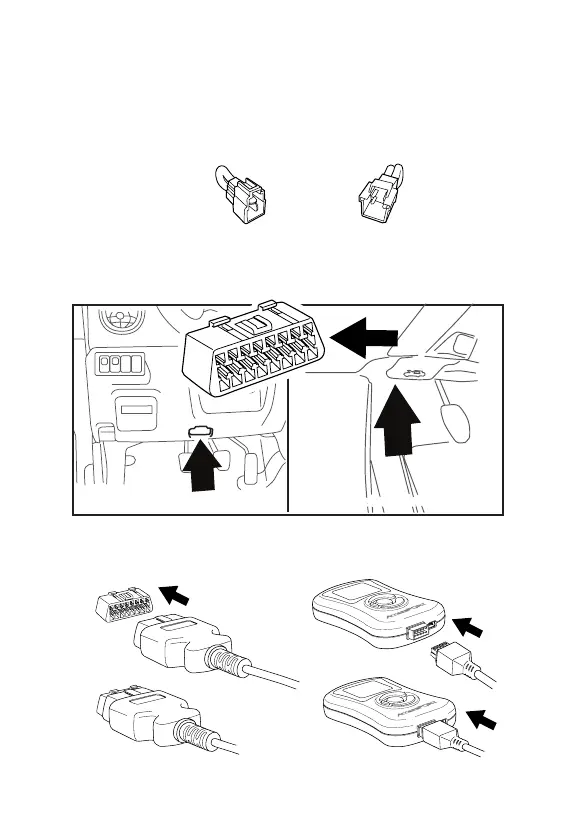

3. On 2002-2005 WRX models identify the correct Initialization Connector
for your vehicle (2002 WRX = BLUE, 2003-2005 WRX = WHITE). Attach
the Initialization Connector to the corresponding connector under the
driver’s side dash. This connector will be located near the green Test Mode
connectors and will be translucent white in color. Do not proceed until
this step is complete.
5. Plug the OBD-II cable into the OBD-II port under the dash of vehicle.
Then connect the small end of the OBD-II cable to the 10 pin port on the
bottom of the Accessport.
4. Locate the vehicle’s female OBD-II port under the driver’s side dash.
2002 WRX Initialization
Connector (BLUE)
2003-2005 WRX Initialization
Connector (WHITE)
[STI, WRX & Forester OBD-II Port]
[Legacy & Outback OBD-II Port]
