NanoVue Receiver
Version 1
Part A - User Guide
Operating your NanoVue
NANOVUE-user-guide-R06-
2011-07-07.doc
44
DS000042 Commercial in Confidence

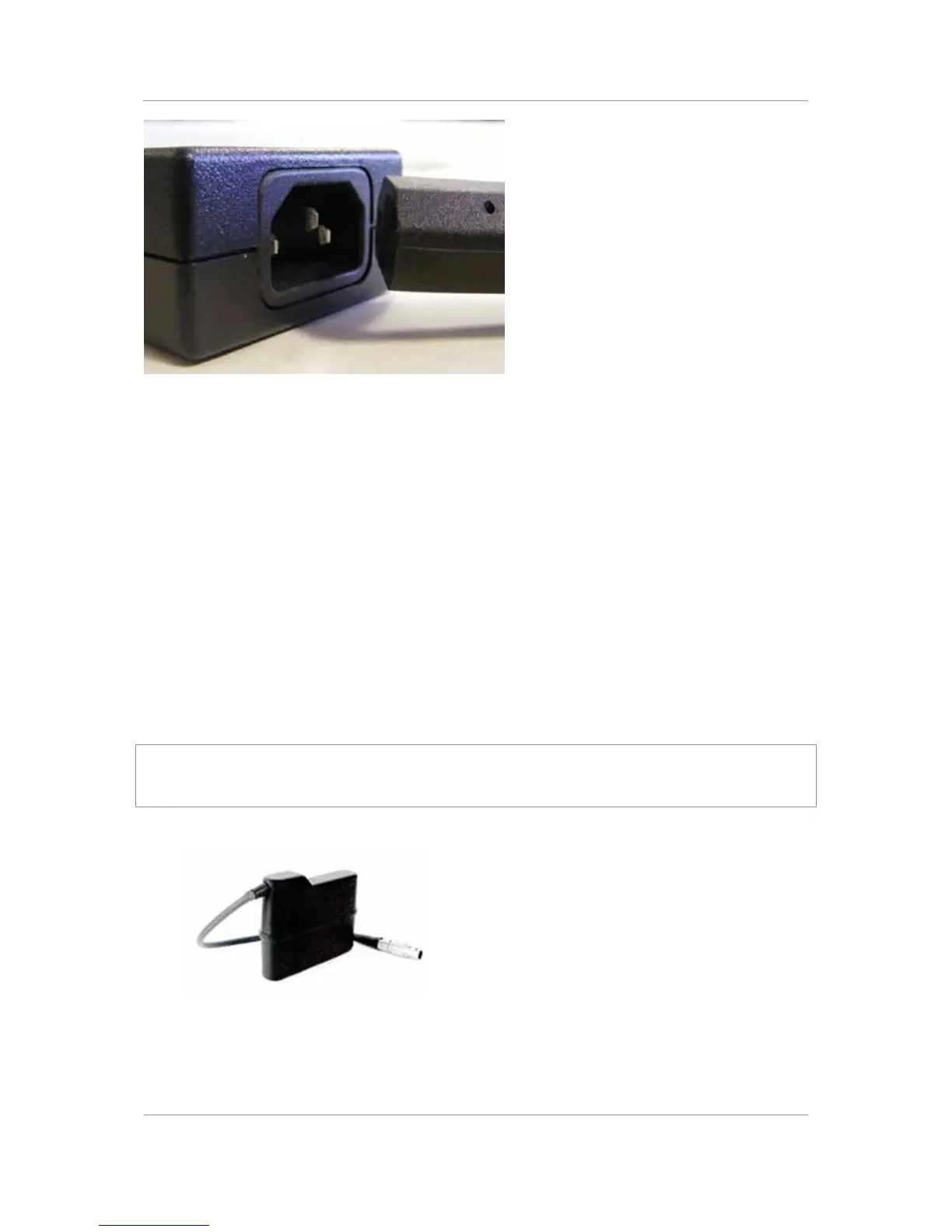

3. Connect IEC mains plug to your local AC supply and switch on.
09-20 DC Power Supply System
The unit can be powered from DC by using suitable batteries or a vehicle power source.
Take care that the vehicle supply is within limits for this unit. Aircraft for example, normally
use 28VDC supplies.
Also, be careful to get the polarity correct when connecting to a DC power source.
09-20-01 Connecting to DC Supply
You’ll need a NanoVue Receiver and the CA0002 Power Cable Assembly.
1. Connect the Lemo OB 4-way plug (male) from CA0002 cable to the Lemo OB 4-way
12V jack (female) on the NanoVue Receiver.
2. Connect the banana plugs to a suitable 12VDC supply.
CAUTION: When using a 12VDC supply ensure the polarity is correct. The red banana
plug should be connected to the positive terminal. The Black banana plug should be
connected to negative terminal.
Cobham Battery Pack (SOLBAT2)
If you have a Cobham battery pack, connect
the Lemo OB 4-way plug (male) from the
battery pack to the Lemo OB 4-way 12V jack
(female) on the NanoVue which is on the left
side of the left panel.
Figure 09-20-01 Cobham Battery Pack
