BATTERY SWITCH
Battery Switch
Whether equipped with single or dual battery setup, the batteries are located behind the battery access door along the
starboard aft cockpit wall. The switch panel is located at the aft starboard cockpit. On a single battery system, your battery is
wired to the number 1 side of the switch. On the optional dual battery setup, one battery is wired to the number one position
while the second battery is wired to the number 2 side of the switch. The operator can choose which battery to utilize by the
selection on the switch. The only time the switch should be in the “1 & 2” position is if one battery will not start the engine.
Then, switch to “1 & 2” and have two batteries start the engine.

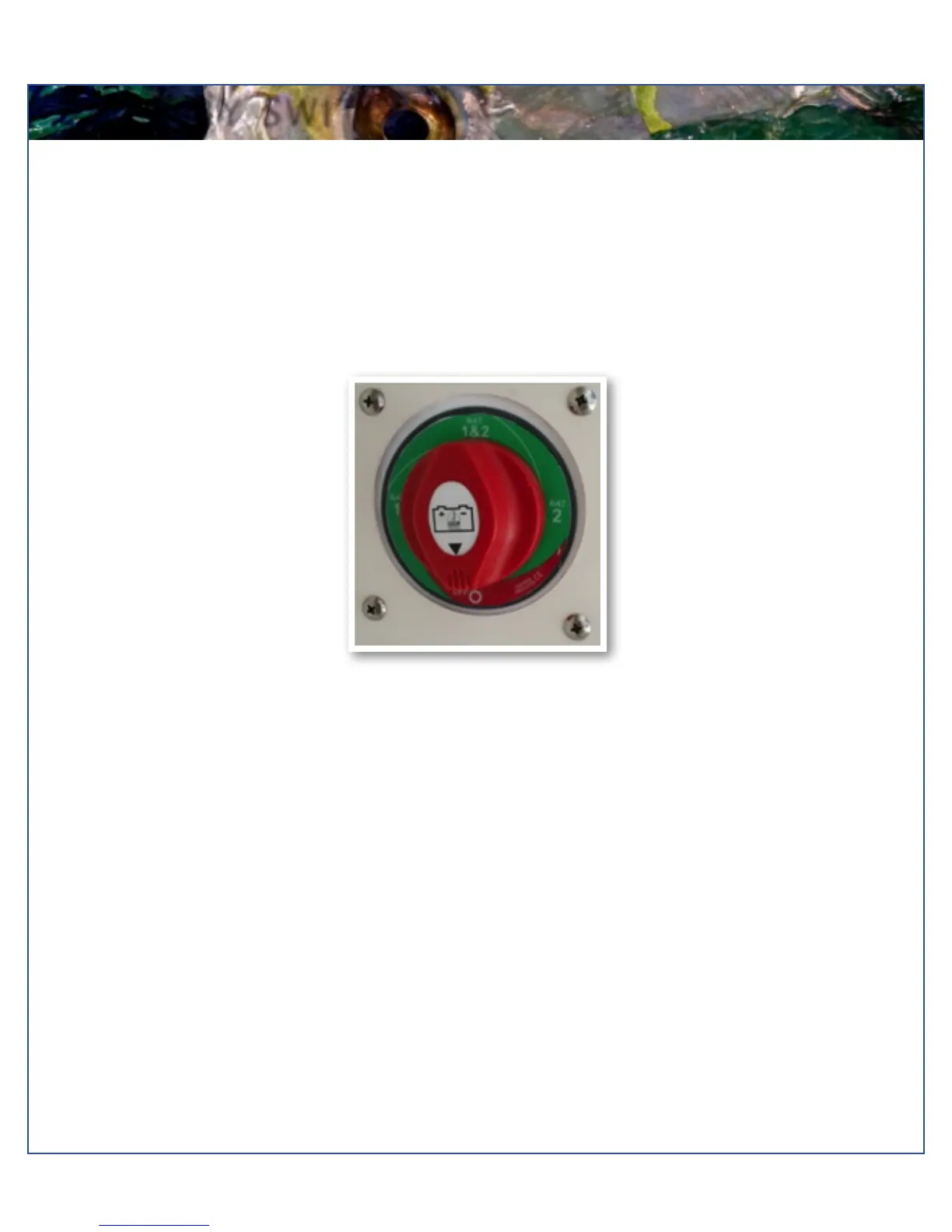

Battery Switch, Shown in the “Off” Position
