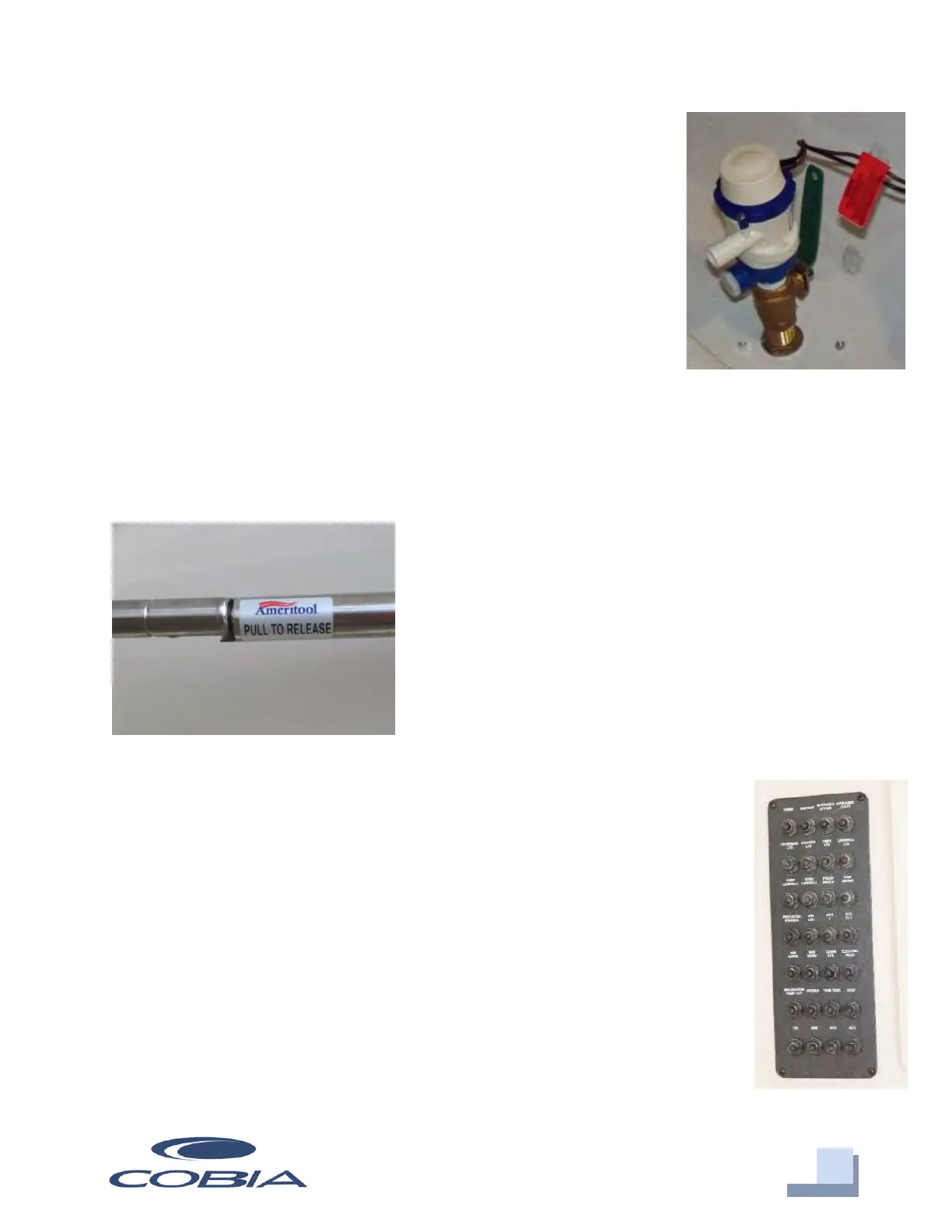

301 Livewell Pump Assembly
The livewell pump assembly is composed of a scoop strainer
mounted to the bottom of the hull, a thru hull fitting, ball valve
assembly, and the pump. As you can see, the ball valve assembly is
in the “OPEN” position. This is the correct position for the
operation of the livewell.
Console/Head Access
Located at the top on the inside of the console/head access door is a locking gas shock
that aides in opening the door and keeping the door open once the shock is fully
extended. With the door fully opened, it can only be closed by releasing the pressure of
the metal sleeve on the door side against the shock
that is mounted to the console. To do this, open the
door to its fullest open position, thereby allowing
the door slide sleeve to be moved so that it will slide
overtop of the gas shock as the door closes. Failure
to release this locking mechanism while attempting
to close the door will lead to the gas shock failing, or
damage to the mounting brackets.
DC Main Breaker Panel
The DC main breaker panel is located to the left of the mirror and contains
the breakers for the accessories on the helm switch panel. If an accessory is
not working it may because its breaker has been popped. Simply find the
rubber button on the breaker panel for the associated accessory and press it
in. You should feel an internal button move in and then catch. This will reset
the breaker and close the circuit. If the accessory still is not working or the
breaker pops again, another issue is present.
The backside of the switch panel and the electronics can be reached inside
the door with the mirror. The fuse box on the back of the door contains the
fuses for the helm electronics such as the GPS units and VHF.
Livewell Pump Assembly in
“OPEN” Position
