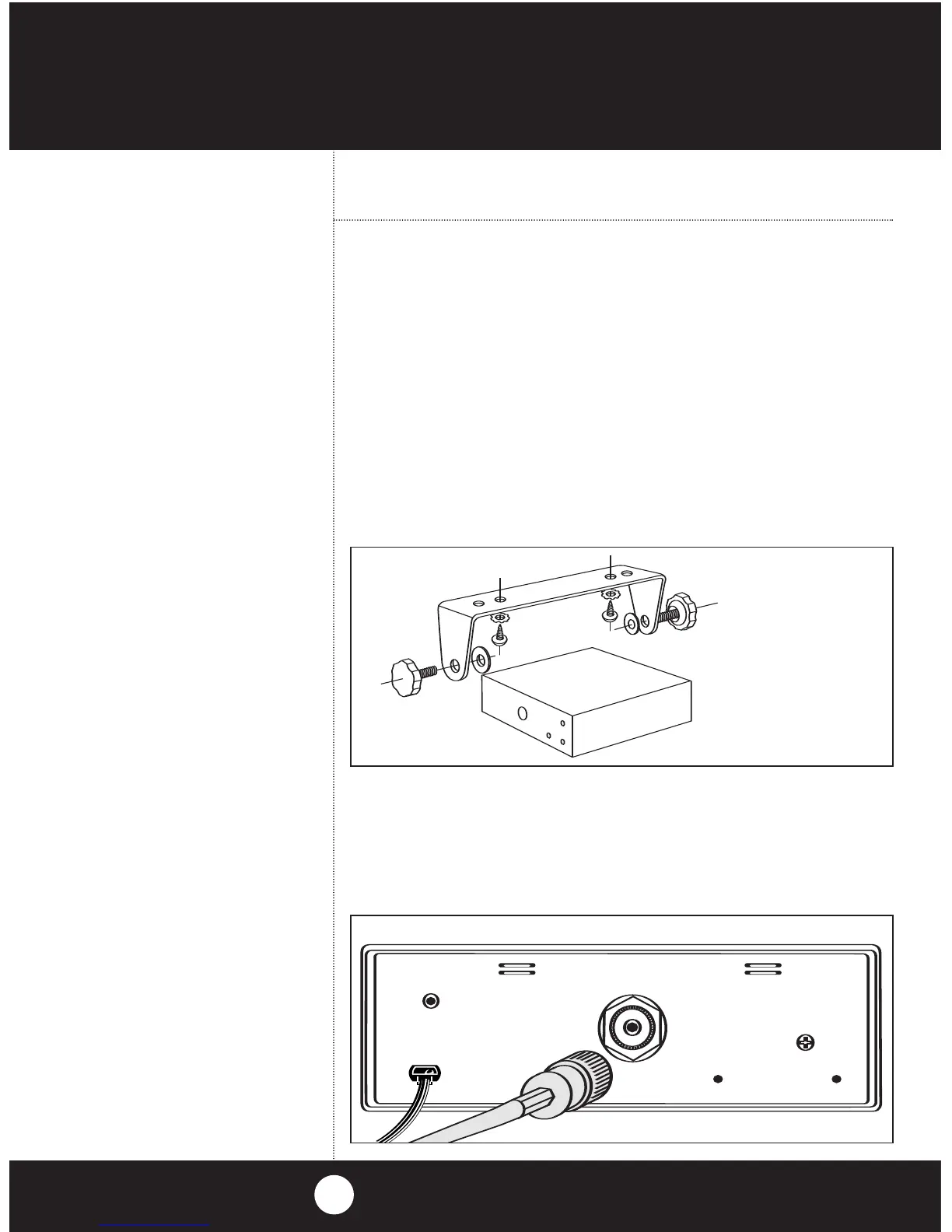

Mounting and Connections
Select a location for the transceiver and micro-
phone bracket that is convenient for operation.
In automobiles, the transceiver is usually mounted
to the underneath of the dash panel, with the
microphone bracket beside it.
1Hold the radio with mounting bracket in the
exact location desired. Remove the mounting
bracket and use it as a template to mark the
location for the mounting screws.
2Drill necessary holes and secure mounting
bracket in location.
3Connect the antenna cable plug to the recepta-
cle marked “ANT” on the back of the unit.
Mounting and
Connections
Note
The transceiver is held in the
universal mounting bracket by
two thumb screws, permitting
adjustment at the most conve-
nient angle.
A universal mounting bracket
is supplied along with self tap-
ping screws and star washers.
To mount the transceiver:
OperationInstallation
