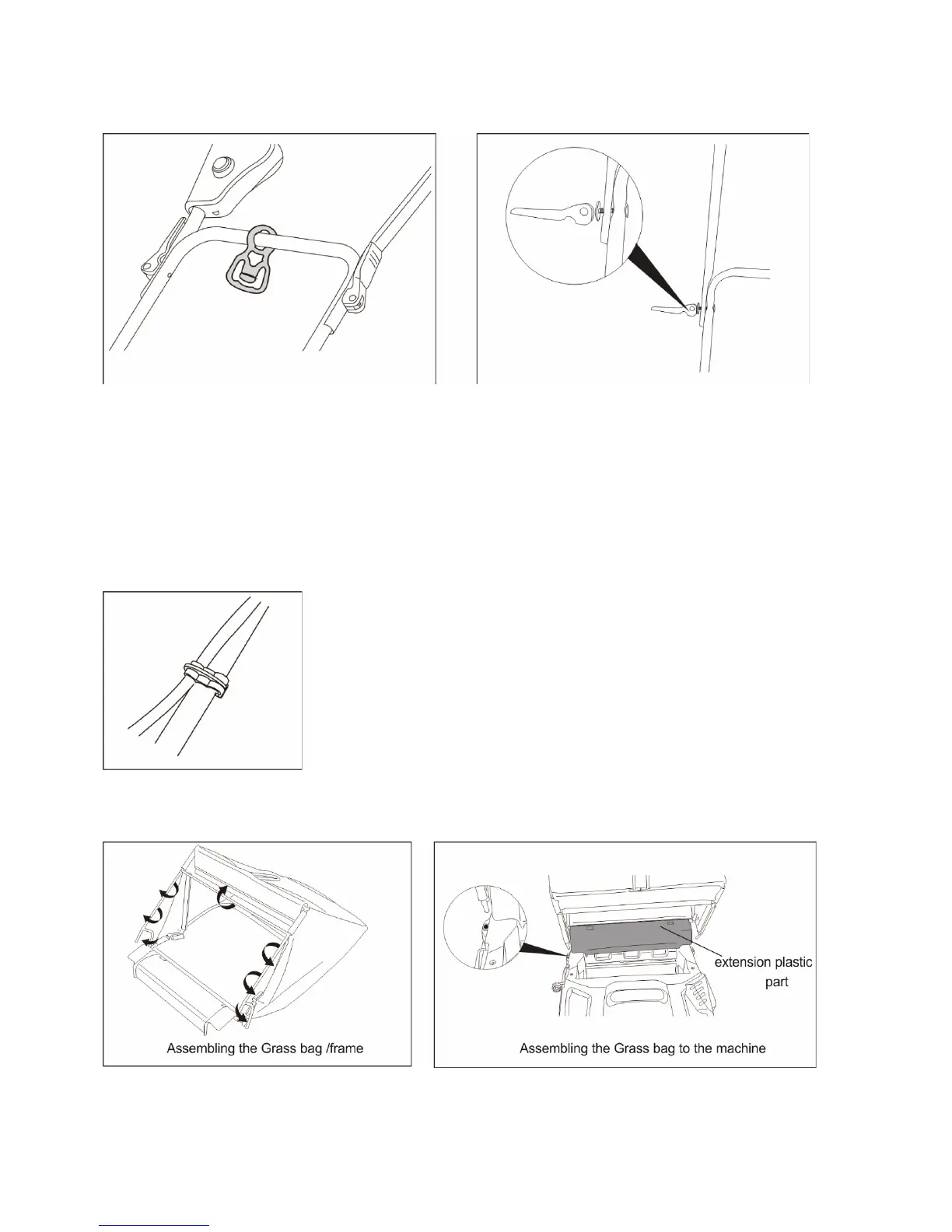

5.2 ASSEMBLY- THE MIDDLE & UPPER HANDLE
1.Firstly, slide the cable holder / retainer onto the middle handle, position it around the top of the
handle so it does not fall off during the following assembly steps.
2. Slide the middle handle into the profiled area of the lower handle frame. Making sure that the
holes of both sides of the upper handle are directly aligned with the holes of the frame.
3. Secure the upper handle to the middle handle frame with the cam-lock lever and bolts
provided.
4. Repeat the above process on the upper and lower handle.
5.3 FITTING THE CABLE CLIPS ON THE HANDLE BARS
The cable clips should be used to secure the cable to the lower and
middle handle frames.
5.4 FITTING THE GRASS BAG
1. Place the fabric of the bag over the frame as shown and then push fit the fixings over the frame.
2. When assembling the grass bag onto the machine, lift the front plastic cross strap and locate the 2 pins into
the slot holes on the deck. The plastic extension flap should be located on the bar above the front roller.
