Cobra 400W - Technical Data; Assembly; Lower Handle Assembly

- 7 -
4. TECHNICAL DATA
Model: CM32E
Rated Voltage: 230V~
Rated Frequency: 50Hz
Rated Power: 400W
No Load Speed: 3400/min
Cutting Width: 320mm
Grass catcher:
Included
Net weight:
12kg
Height adjustment :
18-38mm, 3 adjustment
Sound pressure level at the
operator’s position
74dB(A) K=4 dB(A)
Measured sound power level
94dB(A) K= 4 dB(A)
Guaranteed Sound power level
96dB(A)
Vibration
2.323m/s² K=1.5 m/s²
5. ASSEMBLY
Carefully remove all parts the of the mower from the carton. Retain the box and all packaging for
warranty purposes.

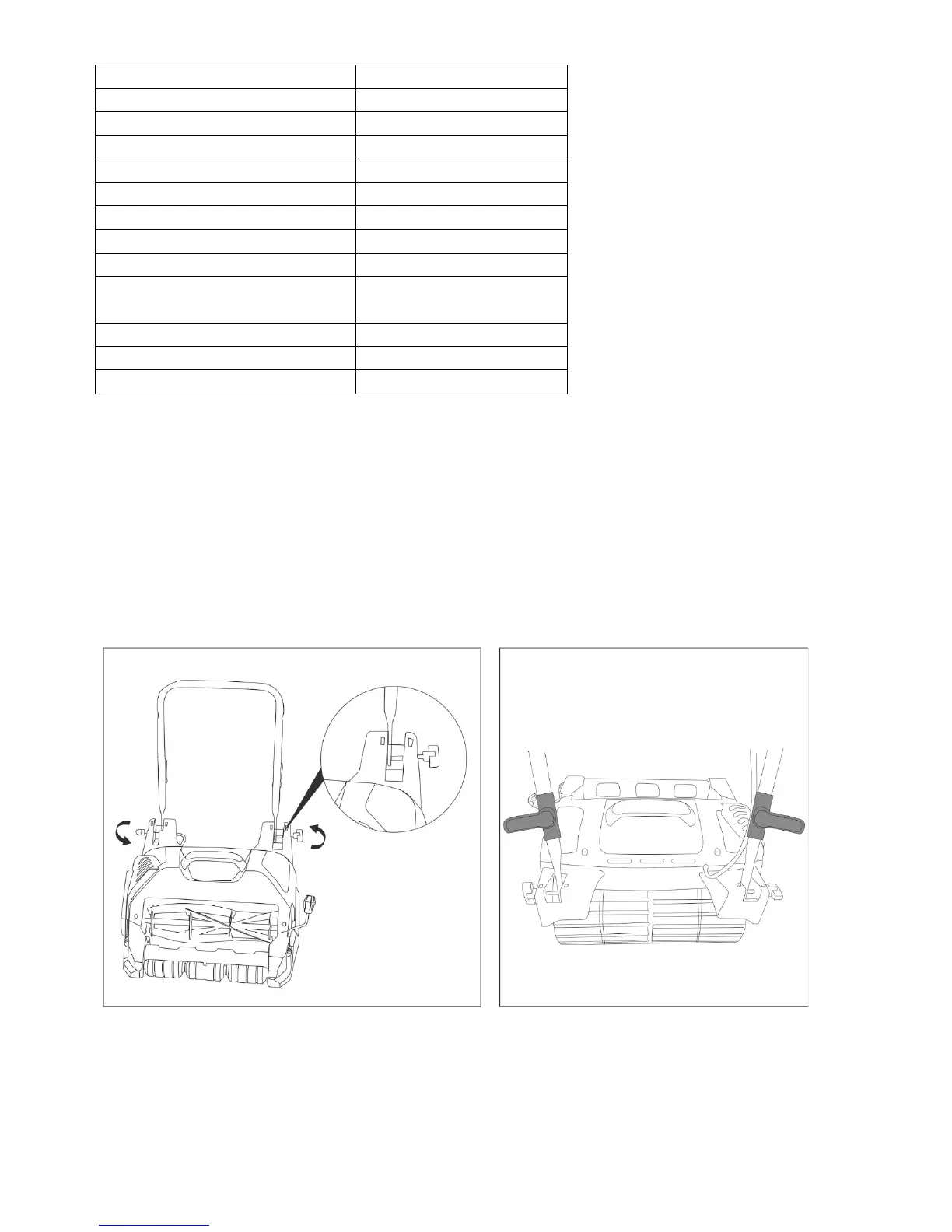

5.1 ASSEMBLY THE LOWER HANDLE
To assemble the lower handles into the main body of the mower, firstly locate the lower handle into the slot of
the body. Then tighten the fixing screws on each of the sides as shown below.
