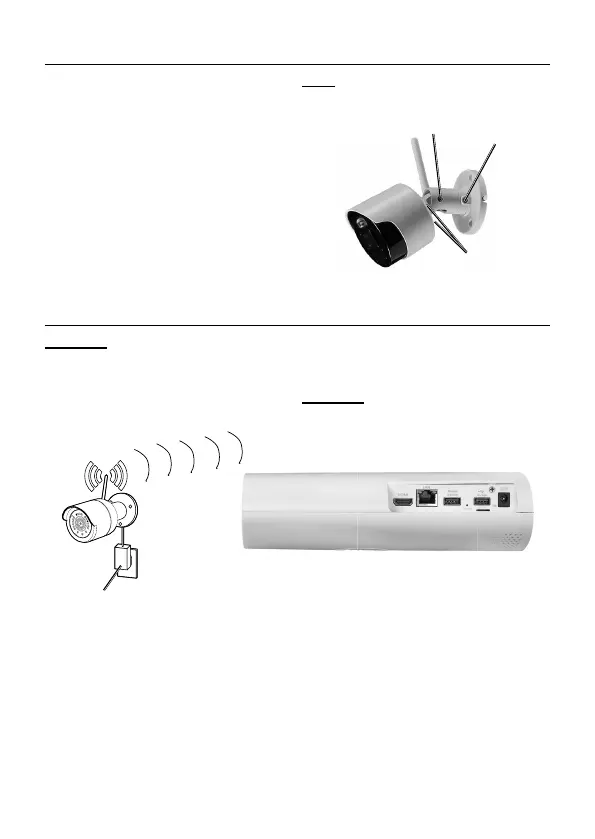

Camera Adjustment
1. Using a screwdriver (sold separately)
loosen the Position Screws (one on
each side) and rotate the Camera
as needed so that the recorded
image is properly orientated. Once
aligned, tighten the screws securely.
2. Loosen the Vertical Screw and tilt the
Camera up or down. Once the Camera
is aligned, tighten screw securely.
3. Loosen the Horizontal Screw
and pan the Camera left or right.
Once the Camera is aligned,
tighten screw securely.
Note: Only loosen Adjustment
Screw slightly, do not remove it.
Position
Screws
Vertical
Screw
Horizontal
Screw
Cable Connections
CAUTION! Route the Power
Adapter/Extension Cable so as
to avoid a tripping hazard.
1. Connect Power Adapter to Camera.
2. Connect Power Adapter to
120 VAC outlet using the
Extension Cable if necessary.
CAUTION! The Power Adapter MUST be
plugged in indoors in a clean, dry location.
NVR
Camera
Power Adapter connected
to 120 VAC outlet
