- 12 -

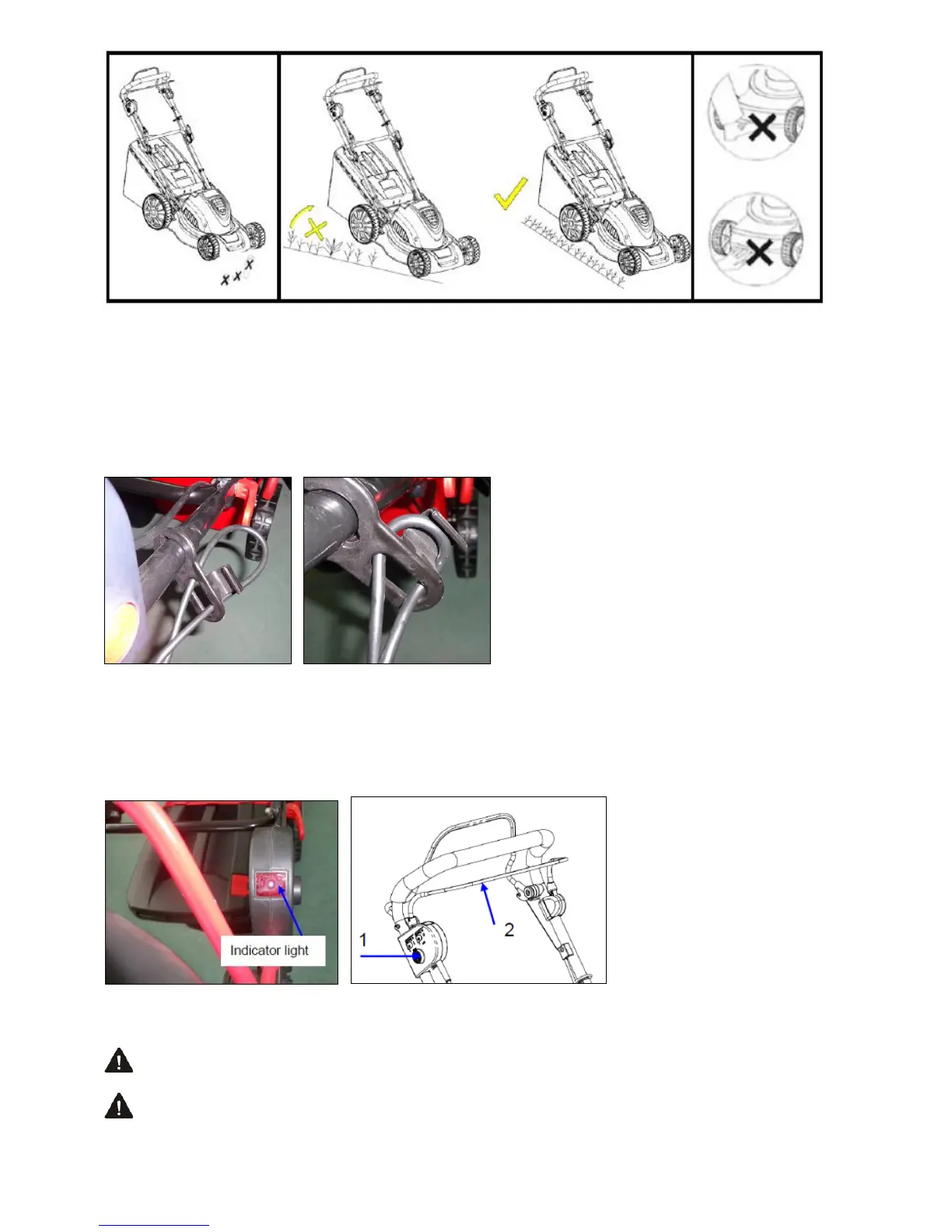

Fig.7A Fig.7B Fig.7C
10. STARTING
10.1 STARTING
Before connecting up the lawn mower to the electric power supply, make sure that the mains supply voltage is
230V~50Hz. Before starting the lawn mower, fix the extension cord with the machine as the Fig.8A /Fig.8B
shown.
Fig.8A Fig.8B
When the lawn trimmer power is on, the indicator light will turn on (Fig.8C).
Start the motor as follows (Fig.8D):
a) Press the safety push-button (1).
b) And then, pull the the switch handle (2), to the main upper handle.
Fig.8C Fig.8D
If you release the switch handle the motor will stop.
CAUTION! The blade starts turning as soon as the motor is started.
WARNING! Cutting elements continue to rotate after the motor is switch off.
