Cobra MX46SPE - Section 4 Technical Data; Section 5 Assembly

- 7 -
4. TECHNICAL DATA
Model:
MX46SPE
Rated Voltage:
230V~
Rated Frequency:
50Hz
Rated Power:
1800W
No Load Speed:
2900/min
Cutting Width:
460mm
Grass catcher:
60 L
Net weight:
31.2kg
Degree of protection against liquid:
IP24
Height adjustment :
25-75mm, 7 adjustment
5. ASSEMBLY
5.1 ASSEMBLY THE FOLDING HANDLE
1. Fix the lower handlebars into the mower body with locking knobs as Fig. 2A/ 2B/2C shown.
2. Lift the two locking levers to release the upper handlebars for folding. (Fig.2D)
3. Push the locking lever closed to lock the handlebars in the operating position. (Fig. 2E)
4. Adjust the tension by turning the lock nut with a suitable spanner. (Fig.2F)
5. Attach the cable-clamp to the position shown and then attach the cable. (Fig. 2G/2H)

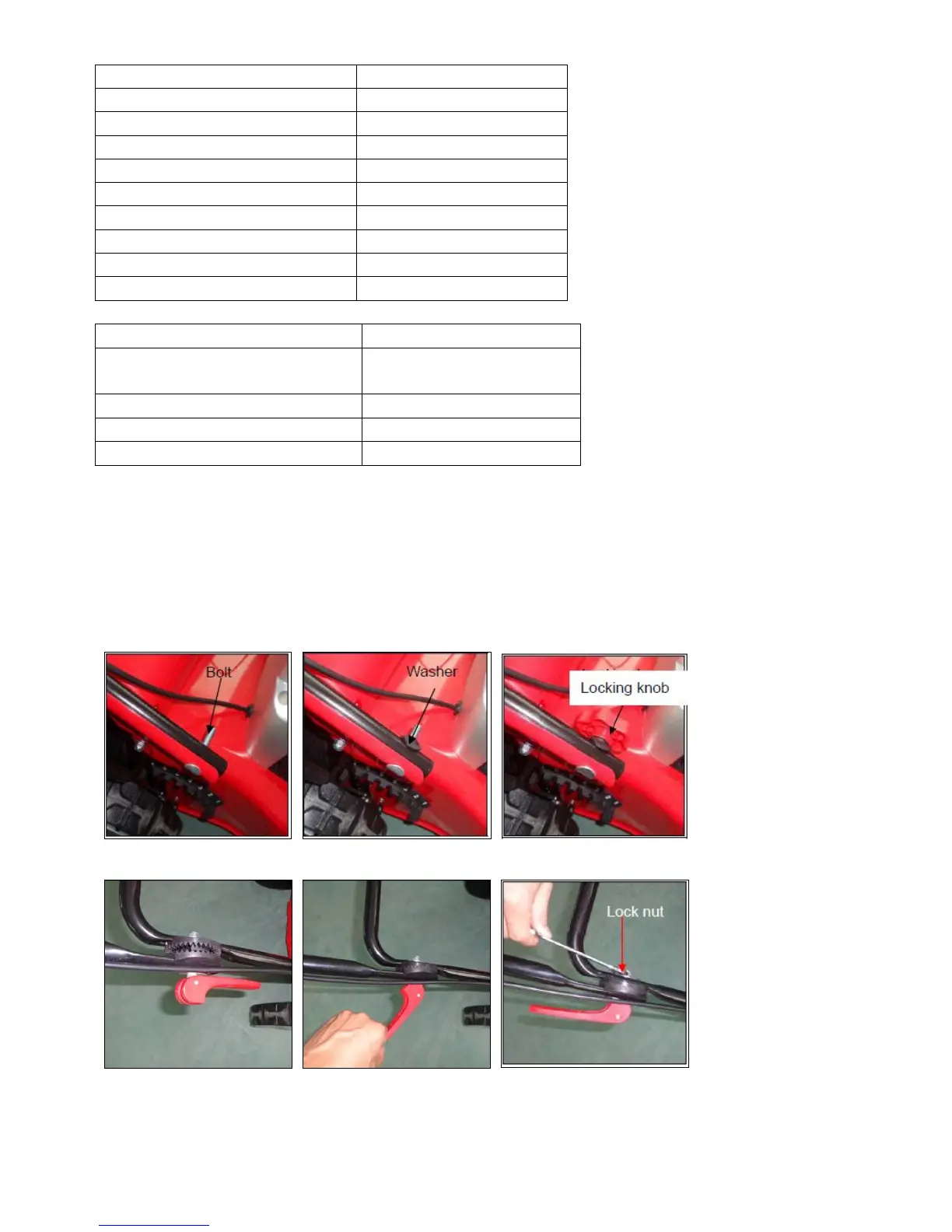

Fig. 2A Fig. 2B Fig. 2C
Fig.2D Fig.2E Fig.2F
Sound pressure level at the
operator’s position
81.3dB(A) K=3 dB(A)
Measured sound power level
93.5dB(A) K= 1.83dB(A)
Guaranteed Sound power level
96dB(A)
Vibration
1.096m/s² K=1.5 m/s²
