- 6 -
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
29. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades
and fixed parts of the machine.
30. Always allow the machine to cool before storing.
31. Replace worn or damaged parts for safety; Use only genuine replacement parts and accessories.
32. Be careful during adjustment of the appliance to prevent entrapment of the fingers between moving
blades and fixed parts of appliance.

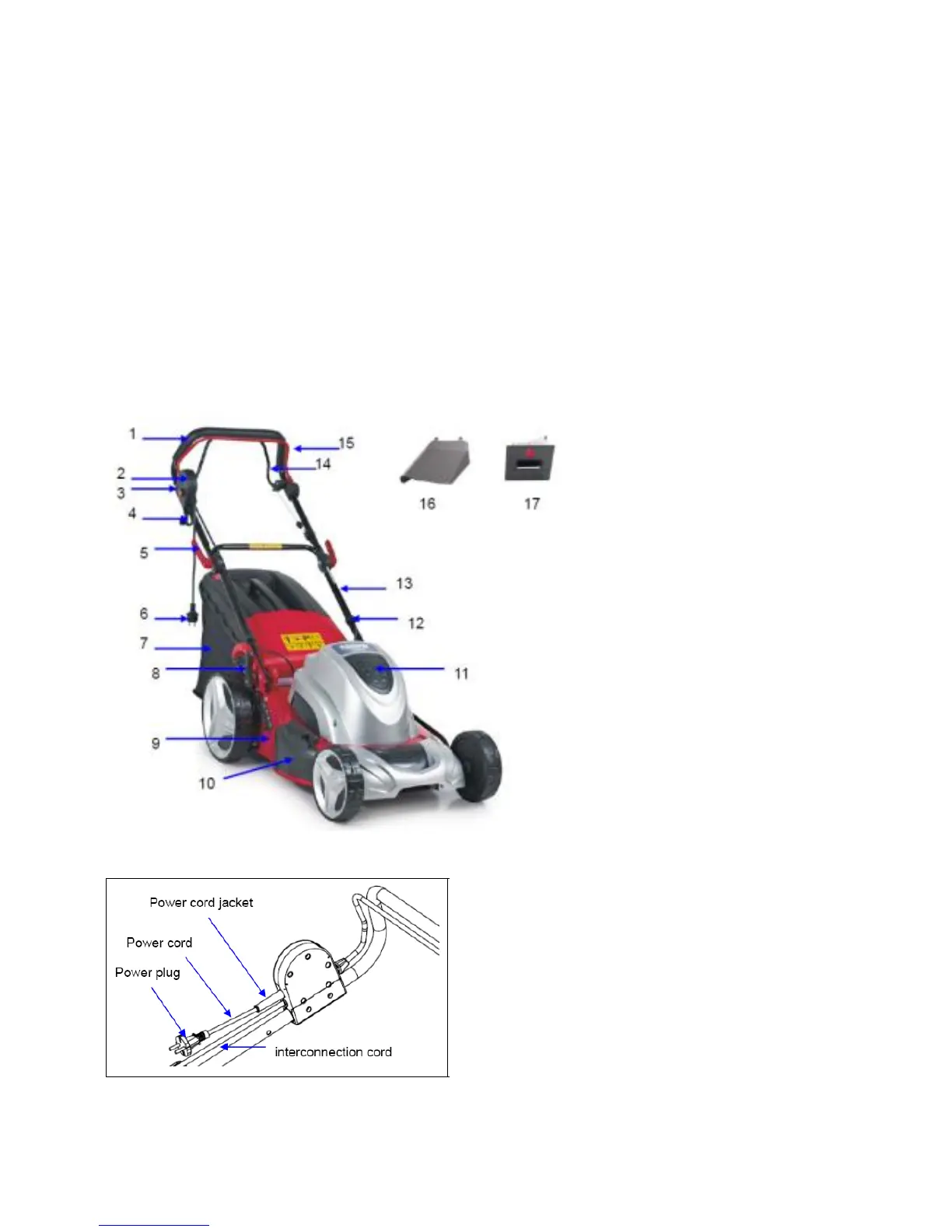

3. GENERAL PARTS IDENTIFICATION
1. Upper handle 2.Switch box 3. Safety push-button
4. Cable hook 5. Locking lever 6. Plug
7. Grass catcher 8. Height adjusting lever 9. Deck
10. Sideward flap 11. Motor cover
12. Cable clamp 13. Lower handle 14. Self-drive control handle
15. Switch handle 16. Discharge channel 17. Mulching wedge
Fig.1A
